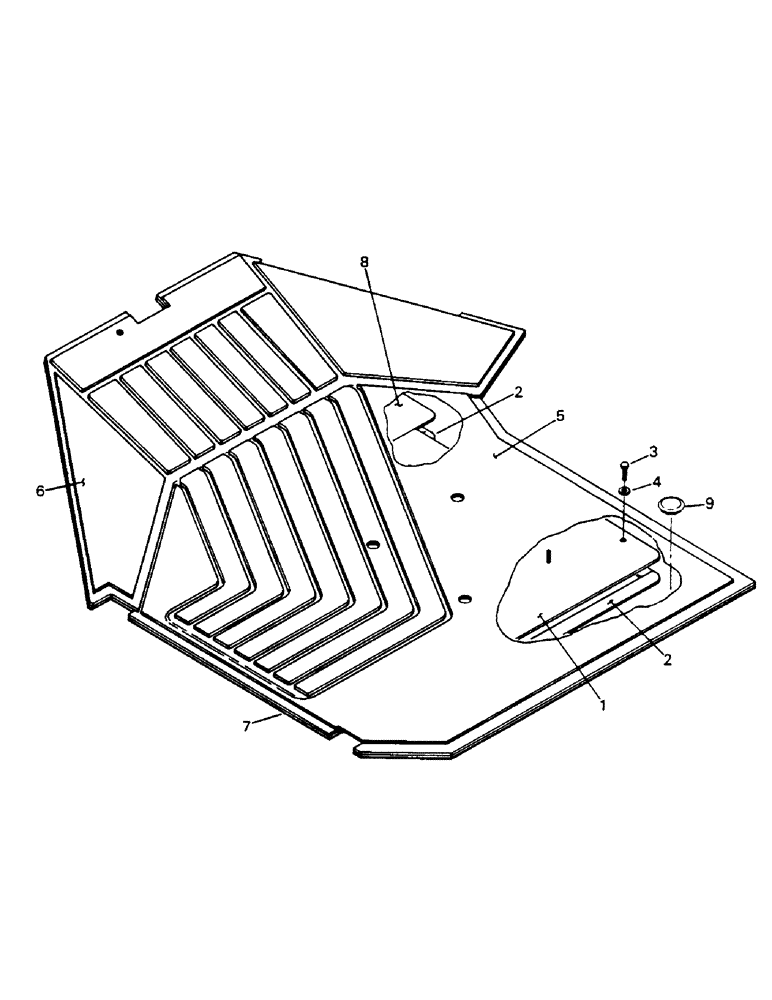

Запчасти Case IH 9130 (01-04) - DELUXE FLOORBOARD MAT AND TRIM (10) - CAB

1

60-5598T1

COVER

- floorboard rear

1шт.

2

60-4597T1

FOAM

- floorboard sealing

8шт.

3

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

13шт.

4

19-106

WASHER,5/16", SAE

- flat, 5/16

13шт.

5

60-4575T3

FLOOR MAT

FLOORMAT

1шт.

6

60-4576T1

MAT

- toe

1шт.

7

60-4577T1

FOAM

- floorboard

1шт.

8

60-5612T1

PLATE

COVER - floorboard front

1шт.

9

31-2727

PLUG

- for 2-1/8 dia. hole

2шт.
