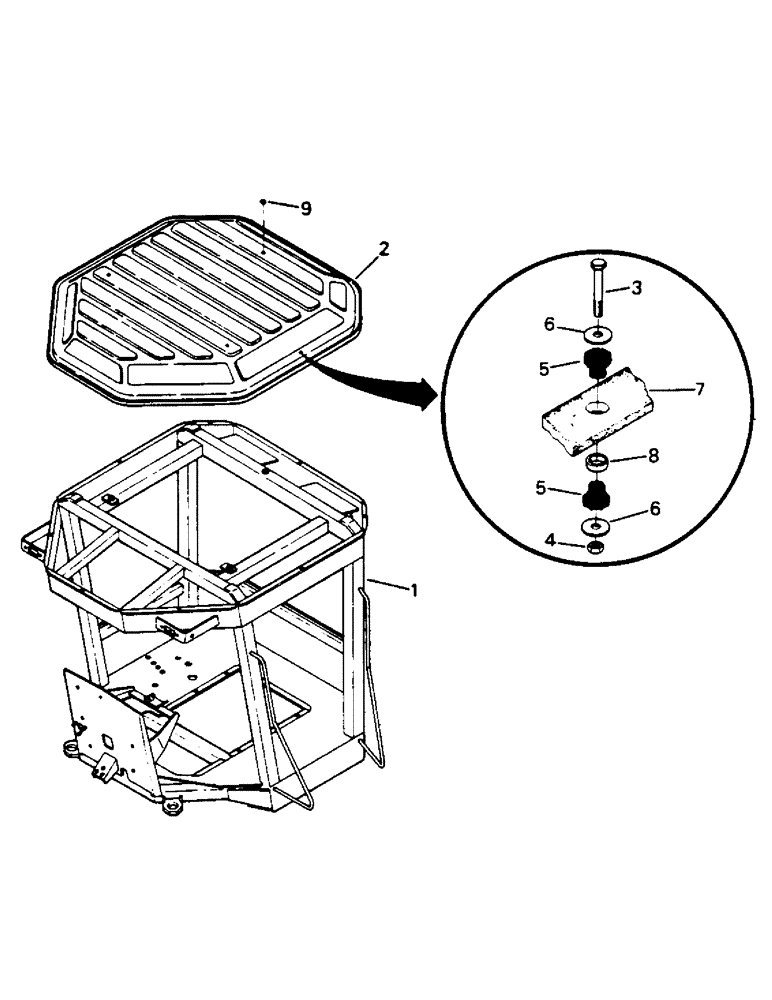

Запчасти Case IH 9130 (01-02) - CAB AND EXTERIOR, ROPS ONLY CAB (10) - CAB

1

CAB STRUCTURE (Special order item)

1шт.

2

60-5970T1

ROOF

CAP - cab roof (Red)

1шт.

3

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 UNC x 1-1/2 G-5

8шт.

4

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

8шт.

5

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

rubber snubber

16шт.

6

9421394

WASHER

- flat, 1/4 x 1.00 x 1/16 thk

16шт.

7

60-4583T1

FOAM

- roof cap

1шт.

8

60-4584T1

WASHER

- nylon, 9/16 x 3/4 x 3/16 thk

8шт.

9

31-2595

PLUG

- plastic (Lifting holes)

3шт.
