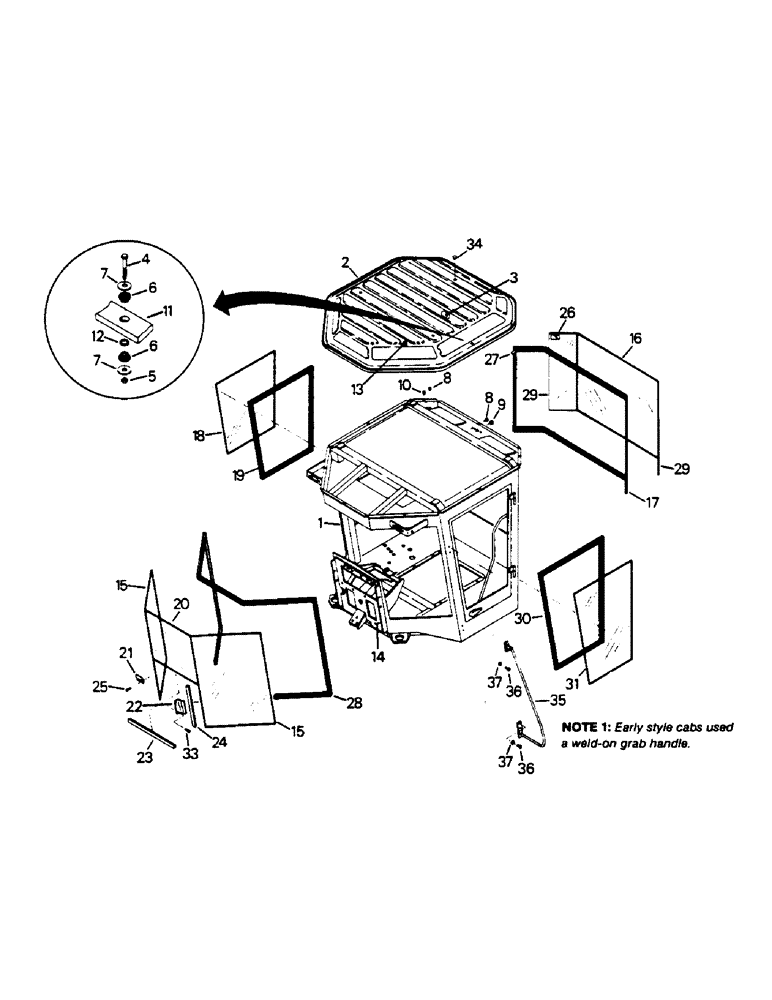

Запчасти Case IH 9130 (01-01) - DELUXE CAB AND WINDOWS (10) - CAB
№
Артикул
Название
Примечание
Количество
1
CAB STRUCTURE (Special order item)
1шт.
2
60-5970T1
ROOF
CAP - cab roof (Red)
1шт.
3
60-4450T2
FOAM
- cab top, rear
1шт.
4
19-550
BOLT,Hex, M16 x 35mm, Cl 10.9
CAPSCREW, 1/4 UNC x 1-1/2 G-5
8шт.
5
19-1081
LOCK NUT
- lock, 1/4 UNC G-A
8шт.
6
60-1826T1
BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L
- rubber snubber
16шт.
7
9421394
WASHER
- flat, 1/4 x 1.00 x .06 thk
16шт.
8
60-4582T1
PLUG
- for 5/16 dia. hole
13шт.
9
31-2175
PLUG
- for 3/4 dia. hole
4шт.
10
60-4401T1
PLUG
- for 5/8 dia. hole
2шт.
11
60-4583T1
FOAM
- roof cap
1шт.
12
60-4584T1
WASHER
- nylon, 9/16 x 3/4 x 3/16 thk
8шт.
13
60-4657T1
FOAM
- cab top, front
1шт.
14
60-4481T1
FOAM
- firewall
1шт.
15
60-3540T1
CAB GLASS ASSY
GLASS - front angled
2шт.
16
60-3859T1
GLASS
- rear
1шт.
17
60-3860T1
SEAL, GLASS
MOLDING - rear window
1шт.
18
60-3856T1
GLASS,CAB
GLASS - side
1шт.
19
60-3857T1
SEAL, GLASS
MOLDING - side window
1шт.
20
60-4315T1
WINDSHIELD
GLASS - front
1шт.
21
60-2774T1
CLAMP
CLIP - front window retaining
2шт.
22
60-4146T1
SUPPORT
CLIP - angled window retaining
2шт.
23
60-3039T1
SEAL, GLASS
ISOLATOR - front window
1шт.
24
60-3040T1
SEAL, GLASS
ISOLATOR - angled window
2шт.
25
281-1358
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
TAPPING SCREW, NO. 10 UNC x 1/2
4шт.
26
2-6879T1
DECAL
- emergency exit
1шт.
27
20-1814T1
SEAL, GLASS
SLEEVE - heat shrink
1шт.
28
60-4682T1
MOLDING
- front and angled windows
1шт.
29
60-3858T1
GLASS
- rear angled
2шт.
30
60-4602T1
SEAL, GLASS
MOLDING - door window
1шт.
31
60-4603T1
GLASS
- door
1шт.
32
1-1055
SEALANT
ANT - RTV window sealing, Used on Ref. 15, 16, 20 and 29
1шт.
33
276-1478
SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"
TAPPING SCREW, 1/4 UNC x 1/2
4шт.
35
60-5861T1
HANDLE
- grab (See note 1)
1шт.
36
19-5348
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
CAPSCREW, 3/8 UNC x 7/8 G-5
4шт.
37
19-107
WASHER
- flat, 3/8
4шт.
Выбрано товаров: 37
