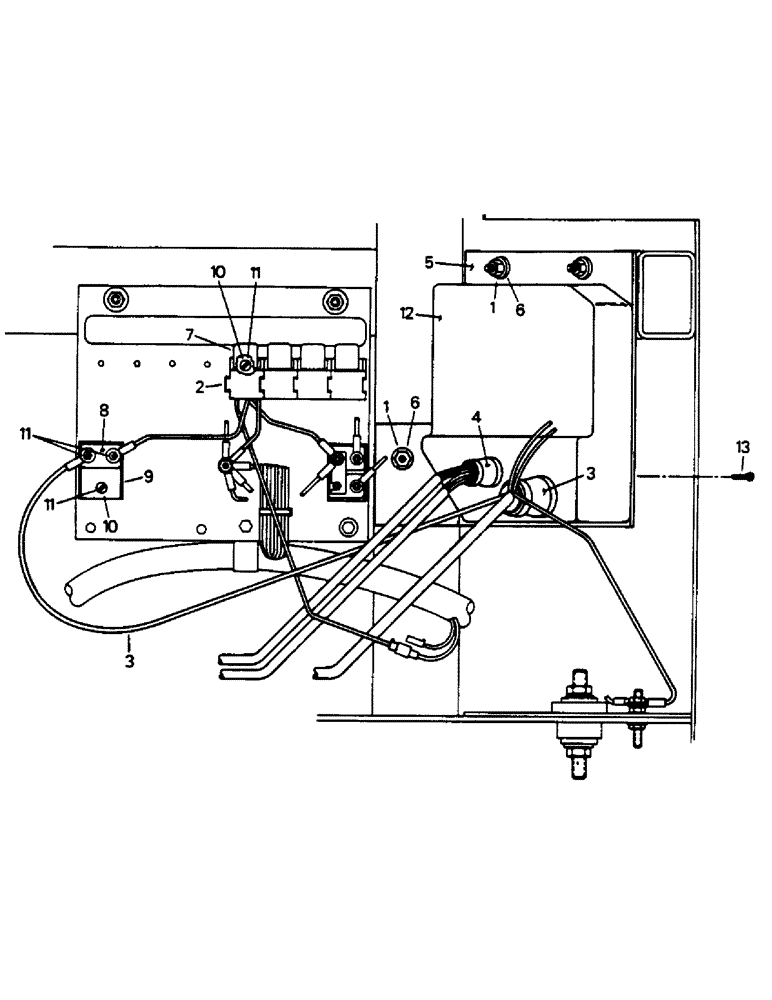

Запчасти Case IH 9130 (10-06) - THREE POINT ELECTRONIC BOX AND MOUNTING Options & Miscellaneous

1

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

3шт.

2

20-2336T1

HARNESS

- relay wire

1шт.

3

20-2398T1

HARNESS

- 3 point control

1шт.

4

20-2399T1

HARNESS

- 3 point actuating

1шт.

5

50-2853T1

PLATE

- box mounting

1шт.

6

19-106

WASHER,5/16", SAE

- flat, 5/16

3шт.

7

1-7877

RELAY

- electric

1шт.

8

22-809

BREAKER

- circuit, 5 amp

1шт.

9

20-1171T1

SUPPORT

BRACKET - circuit breaker

1шт.

10

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

3шт.

11

19-481

SERRATED NUT

- Keps, no. 10 UNF

5шт.

12

20-2396T91

BOX

ASSEMBLY - 3 point electronic

1шт.

13

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

4шт.
