(9130) - CASE IH STEIGER 4WD TRACTOR (PRIOR TO S/N JCB0003600) (12/86-6/89)
/
(07) - HYDRAULICS
/

(08-16) - COUPLER ASSEMBLY

Запчасти Case IH 9130 (08-16) - COUPLER ASSEMBLY (07) - HYDRAULICS

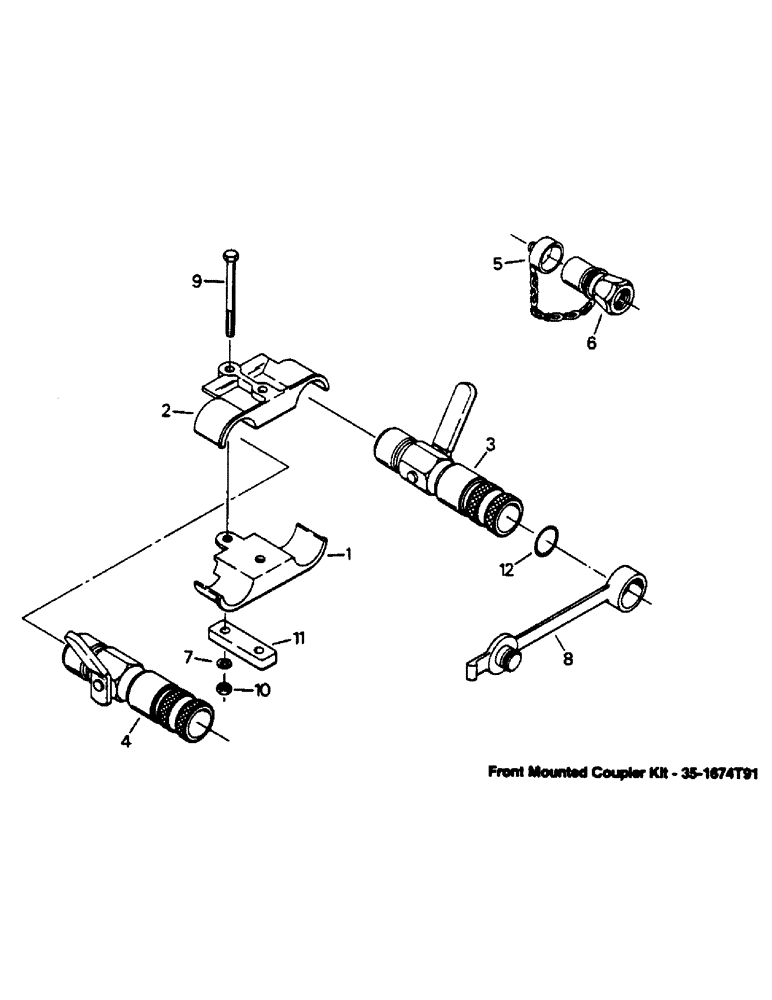

Схема запчастей Case IH 9130 - (08-16) - COUPLER ASSEMBLY (07) - HYDRAULICS
8
9
11
2
6
1
12
10
5
3
4
7

№

Артикул

Название

Примечание

Количество

50-1328T92

ASSEMBLY

COUPLER ASSEMBLY, Includes: Ref. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12

1шт.

50-1399T92

COUPLING

COUPLER ASSEMBLY, Includes: Ref. 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10, 11 and 12

1шт.

1

50-1454T1

CLAMP BRACKET

CLAMP - bottom, (Quantity 2 with P/N 50-1399T92)

1шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

2

50-1455T1

CLAMP BRACKET

CLAMP - top, (Quantity 2 with P/N 50-1399T92)

1шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

3

50-1459T91

PUSH-PULL COUPLING

COUPLER - female (Red), Includes: Ref. 12, (Quantity 2 with P/N 50-1399T92)

1шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

4

50-1460T91

PUSH-PULL COUPLING

COUPLER - female (Yellow), Includes: Ref. 12, (Quantity 2 with P/N 50-1399T92)

1шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

5

1-7142

CAP

- rubber, (Quantity 4 with P/N 50-1399T92)

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

6

1-7141

FITTING

COUPLING - male half, (Quantity 4 with P/N 50-1399T92)

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

7

19-117

LOCK WASHER,3/8"

3/8"

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

8

50-2267T1

PLUG

- dust, (Quantity 4 with P/N 50-1399T92)

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

9

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CAPSCREW, 3/8 UNC x 3 G-5

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

19-395

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

CAPSCREW, 3/8 UNC x 5-1/2 G-5

2шт.

Part of coupler assembly P/N 50-1399T92

1шт.

10

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

11

50-1604T1

SPACER

- coupler

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.

12

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, (Quantity 4 with P/N 50-1399T92)

2шт.

Part of coupler assembly P/N 50-1328T92

1шт.

Part of coupler assembly P/N 50-1399T92

1шт.
