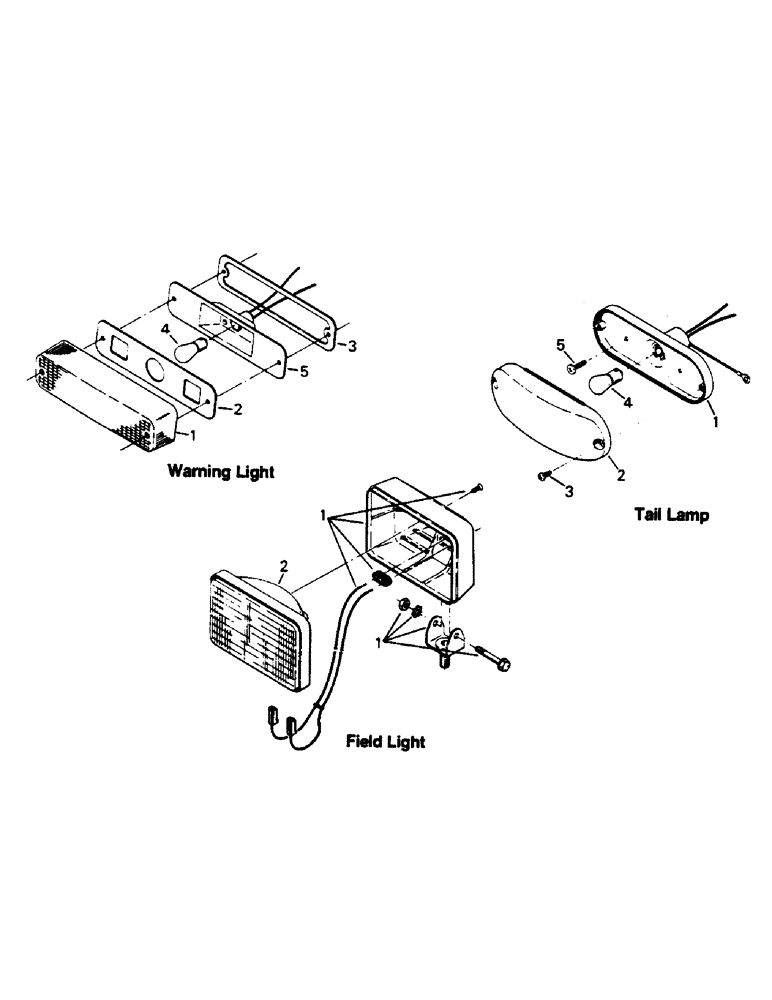

Запчасти Case IH 9130 (02-20) - LIGHT ASSEMBLIES (06) - ELECTRICAL

22-665

LIGHT, WARNING

LIGHT ASSEMBLY - warning, Includes: Ref. 1 - 5

1шт.

1

22-666

LIGHT, WARNING

LENS - warning light

1шт.

2

22-663

GASKET

- lens

1шт.

3

22-664

GASKET

- light mounting

1шт.

4

22-667

BULB

- lamp (No. 1156)

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - warning light

1шт.

20-1730T91

LAMP, WORK

LIGHT ASSEMBLY - field, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - field light

1шт.

2

20-1822T1

LAMP BASE

LAMP - sealed beam

1шт.

20-2256T91

LAMP

ASSEMBLY - tail, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - tail lamp

1шт.

2

20-2257T1

LAMP

LENS - tail lamp

1шт.

3

19-5804

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

TAPPING SCREW, no. 6 UNS x 1/2

2шт.

4

22-286

BULB

- lamp (No. 1157)

1шт.

5

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

TAPPING SCREW, no. 10 UNC x 3/4

2шт.
