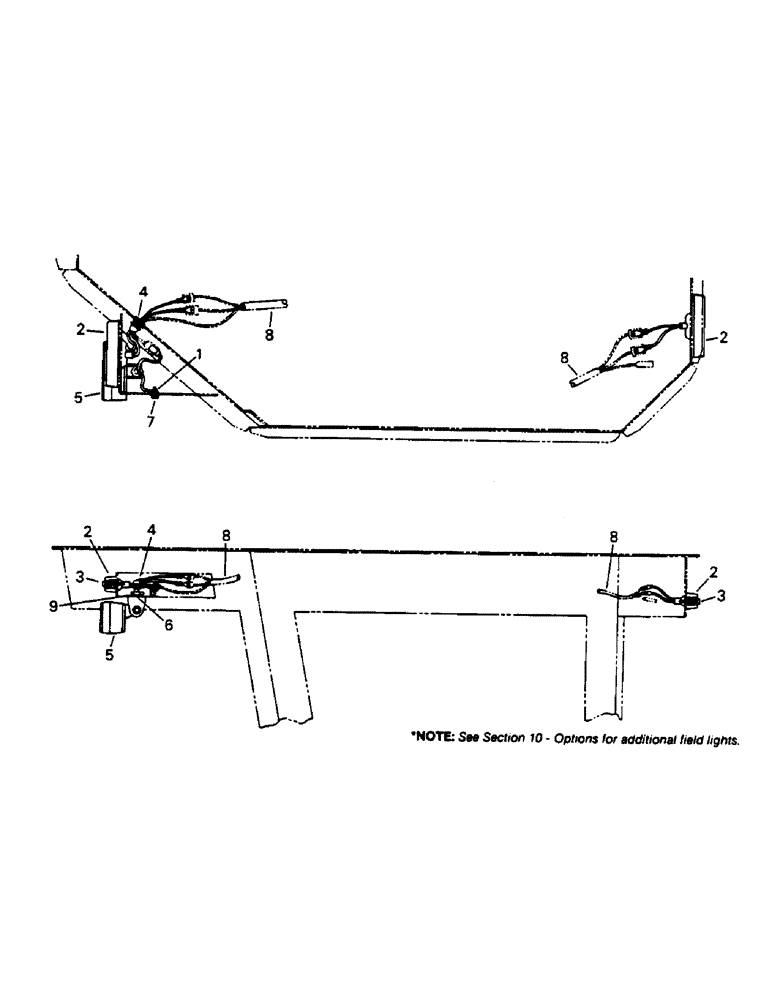

Запчасти Case IH 9130 (02-18) - CAB LIGHTS (06) - ELECTRICAL

1

9419337

NUT

- Keps. no. 10 UNC (Early models only)

2шт.

2

LIGHT ASSEMBLY - warning, See Figure 2-20

4шт.

3

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

- shouldered (Special), warning light mounting

8шт.

4

60-2924T1

CONNECTING ROD

CONNECTOR - wire restraint

2шт.

5

LIGHT ASSEMBLY - field, See Figure 2-20

2шт.

6

19-653

LOCK NUT

- lock, 1/2 UNC G-A

2шт.

7

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW, no. 10 UNC x 1/2 (Early models only)

2шт.

19-948

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

TAPPING SCREW, no. 8 UNC x 3/8 (Later models)

1шт.

8

20-1970T1

HARNESS

- overhead

1шт.

9

22-367

SPRING WASHER

- curved spring, 1/2

2шт.
