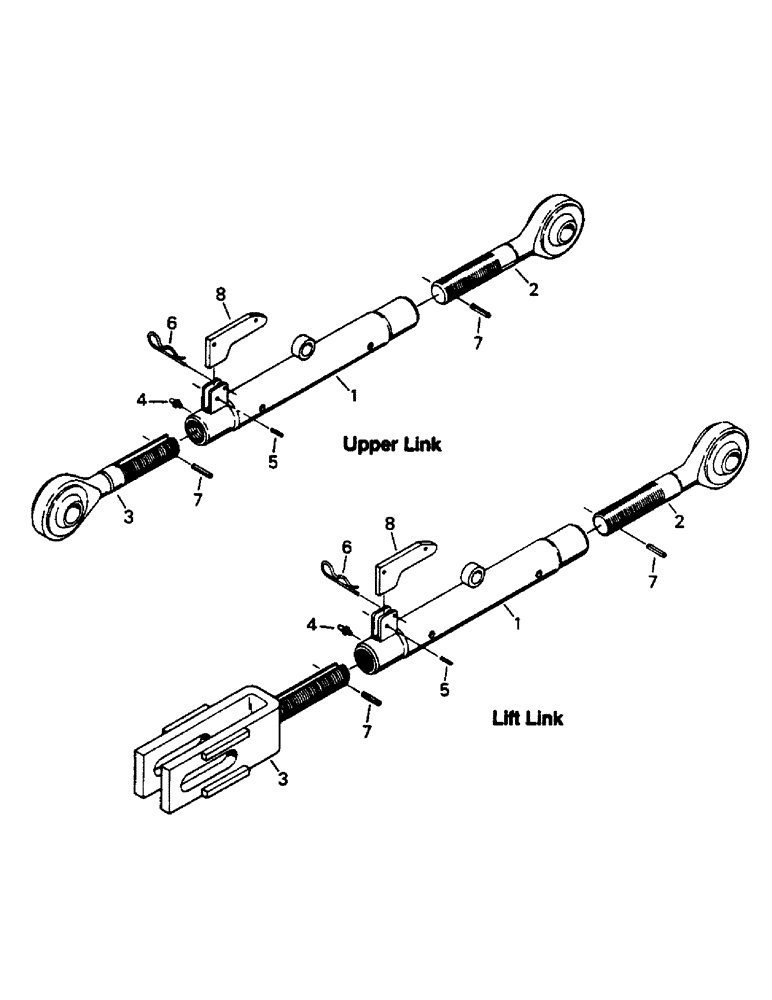

Запчасти Case IH 9130 (10-04) - THREE POINT COMPONENTS, LIFT AND UPPER LINKS Options & Miscellaneous

70-4221T92

LINK ASSY.

LINK ASSEMBLY - upper, Includes: Ref. 1 - 8

1шт.

1

70-4389T2

TUBE,2.5" OD, 20" Length

TURN BUCKLE - upper link

1шт.

2

70-4387T1

SCREW

ROD ASSEMBLY - upper link (Left hand threads)

1шт.

3

70-4388T2

SCREW

ROD ASSEMBLY - upper link (Right hand threads)

1шт.

4

31-1093

FITTING

- grease, 1/4 UNF

2шт.

5

19-151

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

6

19-5400

PIN

- hair, 1/8

1шт.

7

19-5669

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

8

70-4559T1

HANDLE

- latch

1шт.

70-4220T92

POWER ARM

LINK ASSEMBLY - lift, Includes: Ref. 1 - 8

1шт.

1

70-4386T2

TUBE,2.5" OD, 17.5" Length

TURNBUCKLE - lift link

1шт.

2

70-4387T1

SCREW

ROD ASSEMBLY - upper link (Left hand threads)

1шт.

3

70-4385T2

CLEVIS

- upper link (Right hand threads)

1шт.

4

31-1093

FITTING

- grease, 1/4 UNF

2шт.

5

19-151

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

6

19-5400

PIN

- hair, 1/8

1шт.

7

19-5669

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

8

70-4559T1

HANDLE

- latch

1шт.
