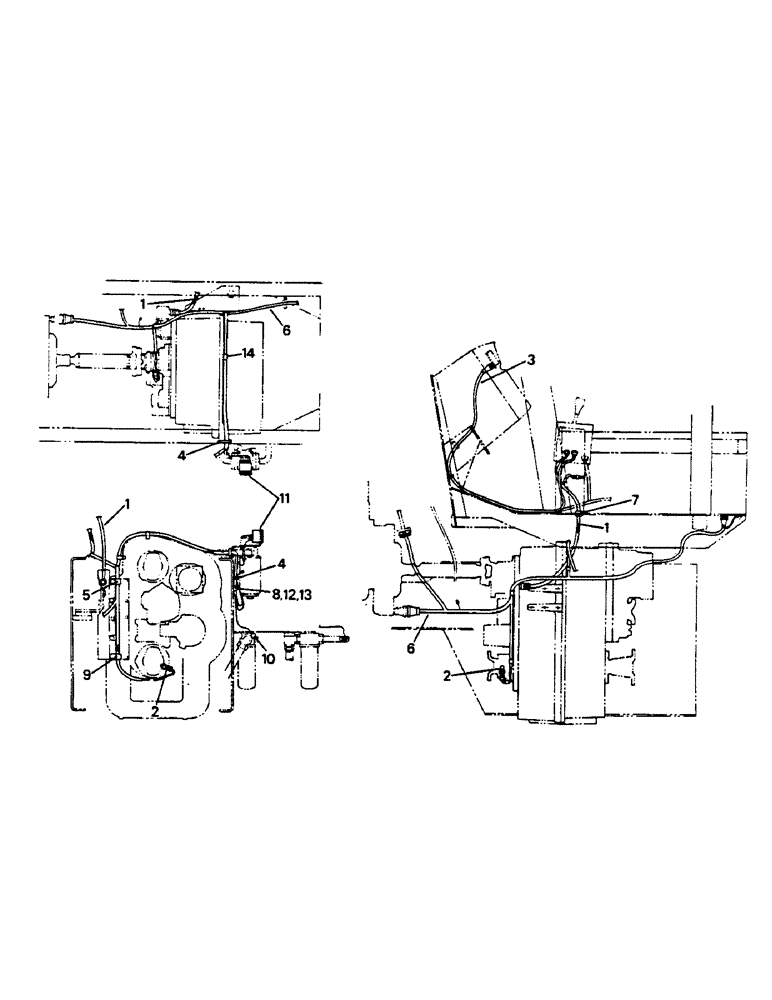

Запчасти Case IH 9130 (02-16) - TRANSMISSION WIRING (06) - ELECTRICAL

1

20-2290T1

HARNESS

- electric shift

1шт.

2

20-2129T1

SENSOR

SENDOR - magnetic, speedometer

1шт.

3

20-2292T1

HARNESS

- dash display

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

5

31-2488

CLAMP

- harness

1шт.

6

20-2509T1

HARNESS

- transmission and engine intermediate

1шт.

7

1-1051

GROMMET

- shift harness

1шт.

8

22-1109

CLAMP

- harness

1шт.

9

31-1862

CLAMP

- harness

1шт.

10

47-4181

IGNITION SWITCH

SWITCH - transmission oil temperature

1шт.

11

20-1388T1

GAUGE

- hydraulic oil filter restriction

1шт.

12

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

1шт.

13

19-105

WASHER,1/4", SAE

- flat, 1/4

1шт.

14

22-628

CABLE CLIP

CLIP - harness

2шт.
