(02-12) - OIL PRESSURE SENDER MOUNTING, ROPS ONLY CAB

Запчасти Case IH 9130 (02-12) - OIL PRESSURE SENDER MOUNTING, ROPS ONLY CAB (06) - ELECTRICAL

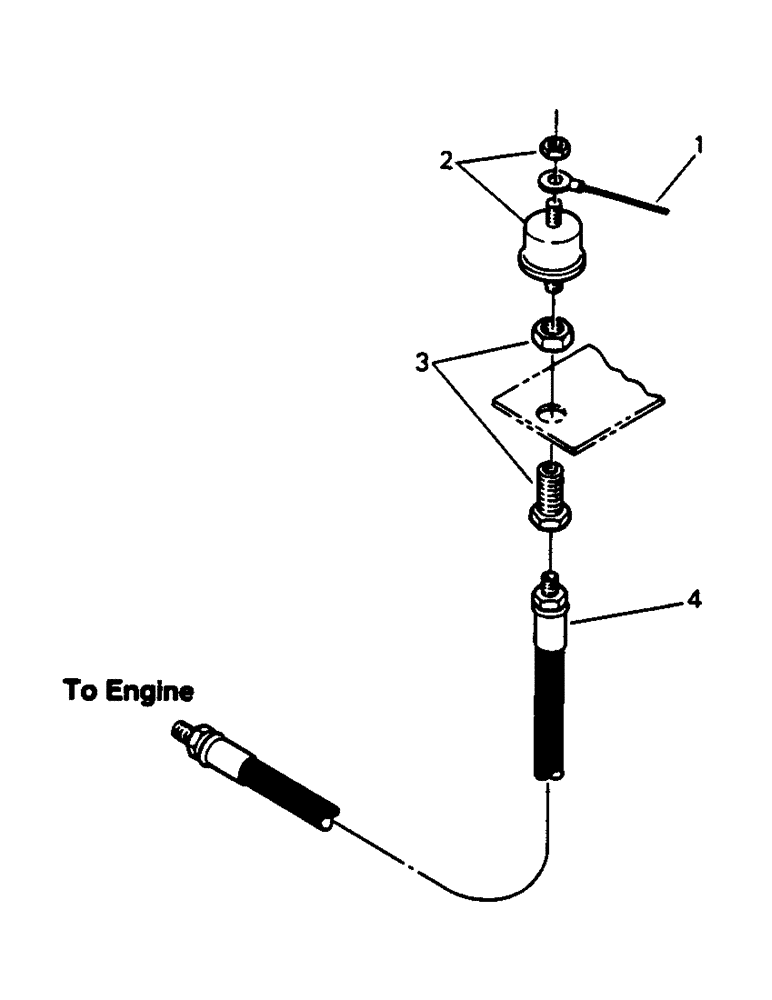

Схема запчастей Case IH 9130 - (02-12) - OIL PRESSURE SENDER MOUNTING, ROPS ONLY CAB (06) - ELECTRICAL
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2510T1

ELECTRICAL WIRE

WIRE - oil pressure sender

1шт.

2

1-2227T2

SENDER UNIT

SENDER - engine oil pressure

1шт.

3

31-2615

ADAPTER

CONNECTOR - bulkhead

1шт.

4

31-2639

HOSE

- oil pressure

1шт.

Выбрано товаров: 4
