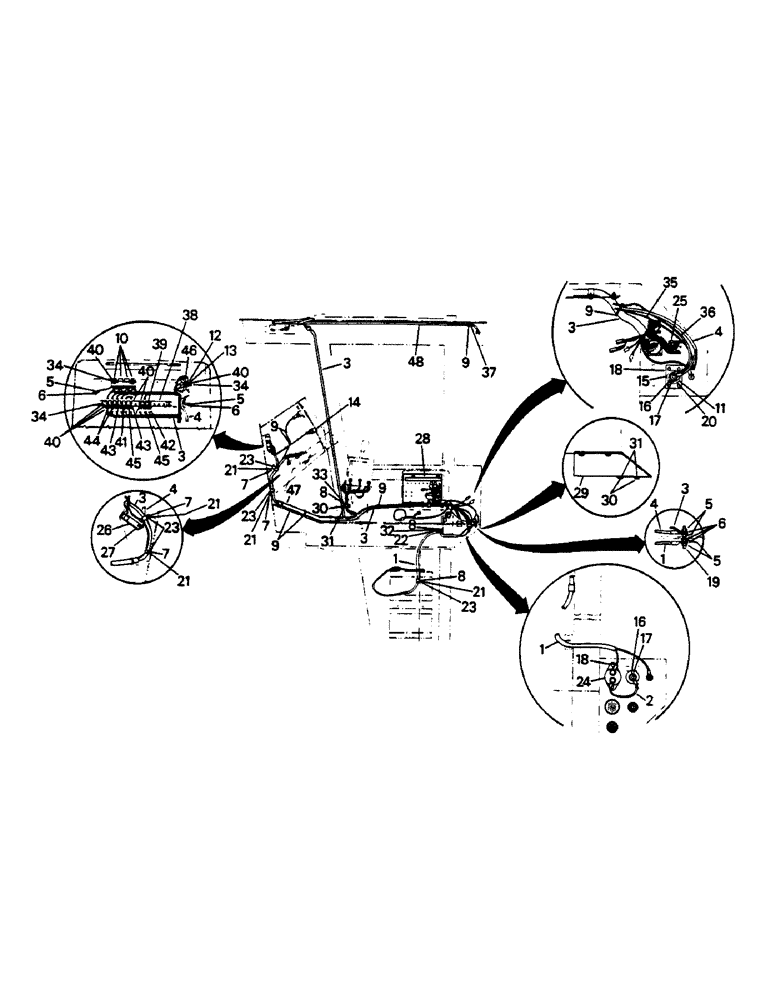

Запчасти Case IH 9130 (02-07) - ROPS ONLY CAB WIRING (06) - ELECTRICAL

1

20-1972T1

HARNESS

- cab power

1шт.

2

20-2023T1

ELECTRICAL WIRE

WIRE - circuit breaker to junction block

1шт.

3

20-2476T1

HARNESS

- main cab

1шт.

4

20-2476T1

HARNESS

- power wire

1шт.

5

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

6шт.

6

19-115

LOCK WASHER,1/4"

1/4"

5шт.

7

31-1348

CLAMP

- harness

2шт.

8

32-161

COLLAR CLAMP

CLAMP - harness

3шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

10

20-2133T1

RELAY

- electrical

4шт.

11

20-2471T1

CAP

- junction block cover

1шт.

12

19-5577

LOCK WASHER

- lock, 3/8

1шт.

13

115772

NUT

3/8 UNC brass

1шт.

14

1964752C1

SWITCH

- rocker, master light (20-1968T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

15

20-1087T1

BLOCK

JUNCTION BLOCK - electrical

1шт.

16

19-289

JAM NUT,1/2" - 13, Gr 5

- jam, 1/2 UNC G-B

2шт.

17

19-463

WASHER,1/2", SAE

- flat, 1/2

4шт.

18

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW, no. 10 UNC x 3/4

6шт.

19

60-1880T1

STUD

- ground

1шт.

20

20-2470T1

INSULATOR

- junction block

1шт.

21

19-224

WASHER,3/8", SAE

- flat, 3/8

3шт.

22

19-508

LOCK NUT

- lock, 5/16 UNC

1шт.

23

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

3шт.

24

20-2041T1

CIRCUIT-BREAKER

CIRCUIT BREAKER - 150 amp.

1шт.

25

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 UNC G-A

12шт.

26

FLASHER ASSEMBLY - time base, See Figure 2-11

1шт.

27

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

2шт.

28

INSTRUMENTATION GROUP, See Figures 2-10 and 2-17

2шт.

29

60-4661T1

COVER

- cab power supply

1шт.

30

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

5шт.

31

19-105

WASHER,1/4", SAE

- flat, 1/4

5шт.

32

19-700

WASHER,5/16"

- flat, 5/16

1шт.

33

280129

NUT,1/4"-20

NUT - lock, 1/4 UNC G-B

1шт.

34

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

6шт.

35

20-2328T1

HARNESS

WIRE - ground stud to ground on instrumentation group

1шт.

36

20-2301T1

ELECTRICAL WIRE

WIRE - junction block to transmission circuit breaker

1шт.

37

22-823

MOUNT

MOUNT - adhesive backed

1шт.

20-2485T91

BREAKER

CIRCUIT BREAKER ASSEMBLY, Includes: Ref. 38 - 45

1шт.

38

22-674

BRACKET

- circuit breaker

1шт.

39

22-676

BREAKER

CONNECTOR - circuit breaker

1шт.

40

19-481

SERRATED NUT

- Keps, no. 10 UNF

22шт.

41

22-809

BREAKER

CIRCUIT BREAKER - 5 amp.

1шт.

42

22-670

BREAKER

CIRCUIT BREAKER - 10 amp.

1шт.

43

22-671

BREAKER

CIRCUIT BREAKER - 15 amp.

3шт.

44

22-673

BREAKER

CIRCUIT BREAKER - 30 amp.

2шт.

45

22-672

BREAKER

CIRCUIT BREAKER - 20 amp.

2шт.

46

20-1451T1

BLOCK

JUNCTION BLOCK - power

1шт.

47

50-2962T1

CONDUIT

GUARD - wire protector

1шт.

48

20-2483T1

HARNESS

- overhead

1шт.
