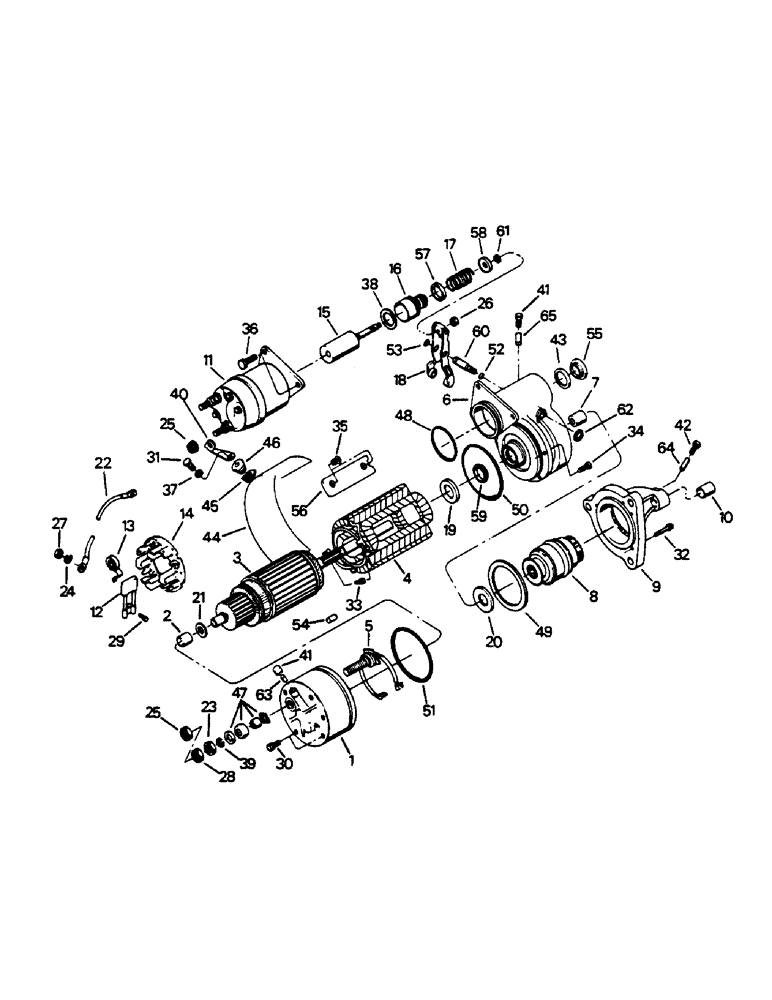

Справочник запчастей Case IH 9130 (02-02) - STARTER ASSEMBLY (06) - ELECTRICAL со схемами

20-2386T91

STARTING MOTOR

STARTER ASSEMBLY Delco no. 1990370, Includes: Ref. 1 - 65

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

33-1029T91

PACKAGE

BRUSH PACKAGE, Includes: Ref. 12, 13, 29, 30 and 51

1шт.

33-1030T91

KIT

BUSHING PACKAGE, Includes: Ref. 2, 7, 19, 20, 21, 26, 41, 42, 43, 48, 49, 50, 51, 59, 63, 64 and 65

1шт.

33-1031T91

LEVER

LEVER PACKAGE - shift, Includes: Ref. 18, 26, 43, 48, 49, 52, 53, 60 and 62

1шт.

1

33-1009T91

COVER

COVER ASSEMBLY - commutator, Includes: Ref. 2, 41 and 63

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - commutator end

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

3

33-1010T1

ARMATURE

ARMATURE ASSEMBLY - starter

1шт.

4

33-1011T1

COIL

COIL ASSEMBLY - field (4 coils)

1шт.

5

33-1012T1

ELECTRICAL WIRE

WIRE WIRE - brush lead

1шт.

6

33-1013T91

HOUSING

HOUSING - levers, Includes: Ref. 7, 20, 41, 48, 50, 59 and 65

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - lever housing

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

8

33-1014T1

DRIVE ASSY.

CLUTCH ASSEMBLY - drive

1шт.

9

33-1015T91

HOUSING

HOUSING ASSEMBLY - drive, Includes: Ref. 10, 42, 49 and 64

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING - drive housing

1шт.

11

33-1016T1

SOLENOID

SWITCH ASSEMBLY - solenoid

1шт.

12

NSS

NOT SOLD SEPARAT

BRUSH - starter

1шт.

Part of brush package P/N 33-1029T91

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - brush

1шт.

Part of brush package P/N 33-1029T91

1шт.

14

33-1017T91

LARGE PLATE

PLATE, LARGE PLATE ASSEMBLY - brush, Includes: Ref. 12, 13 and 29

1шт.

15

33-1018T1

PLUNGER

PLUNGER - lever actuating

1шт.

16

33-1019T1

BOOT

BOOT - plunger

1шт.

17

22-1062

SPRING

SPRING - plunger return

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER - drive shift

1шт.

Part of lever package P/N 33-1031T91

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

22

33-1020T1

ELECTRICAL WIRE

WIRE WIRE - lead

1шт.

23

22-1126

LOCK WASHER

WASHER - lock, 1/2

1шт.

24

19-297

LOCK WASHER,#10

Washer, Lock, #10

1шт.

25

20-1329T1

NUT

NUT - with lock washer

2шт.

26

NSS

NOT SOLD SEPARAT

NUT

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

Part of lever package P/N 33-1031T91

1шт.

27

19-308

NUT,#10 - 32

NUT, no. 10 UNF

1шт.

28

19-289

JAM NUT,1/2" - 13, Gr 5

NUT - jam, 1/2 UNC

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of brush package P/N 33-1029T91

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW - with lock washer

1шт.

Part of brush package P/N 33-1029T91

1шт.

31

33-1021T1

SCREW

1шт.

32

22-1134

HEX SOC SCREW

SCREW - socket head

1шт.

33

20-1332T1

SCREW

1шт.

34

22-1132

SELF-TAP SCREW

SCREW

1шт.

35

22-1135

SCREW

SCREW - flathead

1шт.

36

33-1022T1

SCREW

SCREW - with lock washer

3шт.

37

2-1324

WASHER

1шт.

38

22-1140

WASHER

WASHER - flat

1шт.

39

22-1139

WASHER

WASHER - flat

1шт.

40

33-1023T1

ELEC CONNECTOR

CONNECTOR - terminal

1шт.

41

NSS

NOT SOLD SEPARAT

CUP - oil reservoir

2шт.

Part of bushing package kit P/N 33-1030T91

1шт.

42

NSS

NOT SOLD SEPARAT

CUP - oil reservoir

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

43

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

Part of lever package P/N 33-1031T91

1шт.

44

33-1024T1

INSULATOR

1шт.

45

33-1025T1

INSULATOR

1шт.

46

33-1026T1

INSULATOR

1шт.

47

33-1027T1

INSULATOR

1шт.

48

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

Part of lever package P/N 33-1031T91

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

Part of lever package P/N 33-1031T91

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

51

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of brush package P/N 33-1029T91

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

52

NSS

NOT SOLD SEPARAT

O-RING

53шт.

Part of lever package P/N 33-1031T91

1шт.

53

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of lever package P/N 33-1031T91

1шт.

54

33-1028T1

PIN - spring

1шт.

55

22-1045

PLUG

PLUG - inspection

1шт.

56

22-1055

PLATE

SHOE - pole

1шт.

57

22-1057

RETAINER

RETAINER - spring

1шт.

58

22-1058

OIL SEAL

RETAINER - spring

1шт.

59

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

60

NSS

NOT SOLD SEPARAT

SHAFT - lever pivot

1шт.

Part of lever package P/N 33-1031T91

1шт.

61

20-2112T1

RING, SNAP

RING SNAP RING - snap

1шт.

62

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of lever package P/N 33-1031T91

1шт.

63

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

64

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.

65

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of bushing package kit P/N 33-1030T91

1шт.
