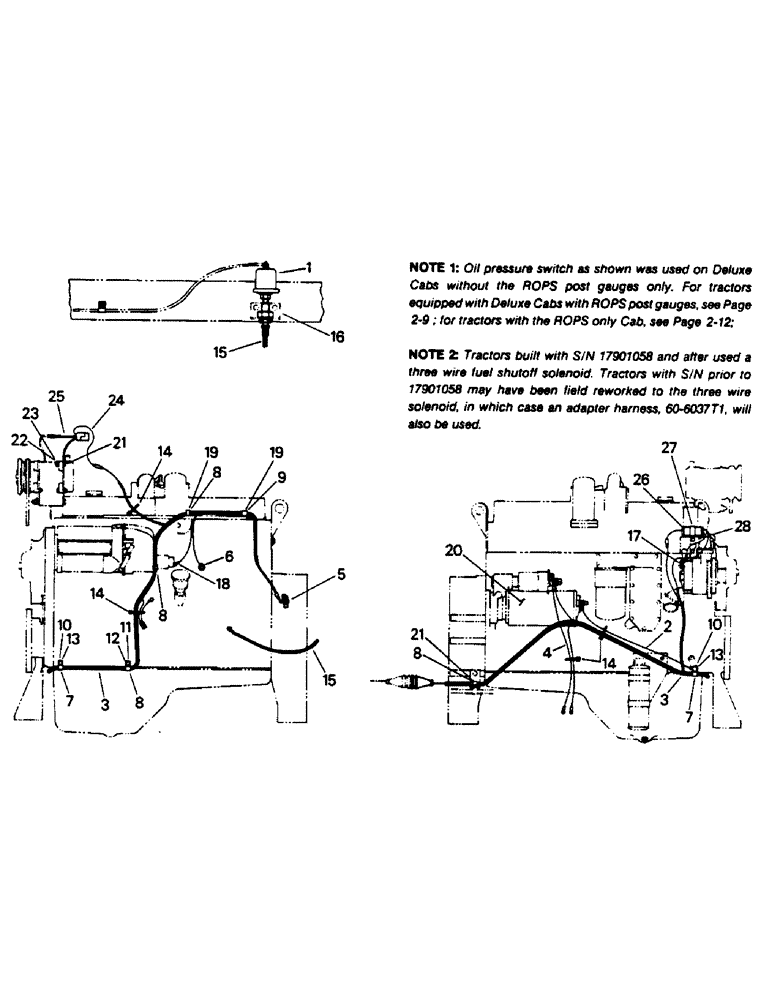

Запчасти Case IH 9130 (02-01) - ENGINE WIRING (06) - ELECTRICAL

1

1-2227T2

SENDER UNIT

SWITCH - oil pressure (See note 1)

1шт.

2

20-2342T1

CABLE

- starter ground

1шт.

3

20-2372T1

HARNESS

- engine wire (Without ROPS post gauges with single wire solenoid) (See note 2)

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

20-2499T1

HARNESS

- engine wire (With ROPS post gauges, with single wire fuel solenoid) (See note 2)

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

60-6029T1

HARNESS

- engine wire (With ROPS post gauges with three wire fuel solenoid) (See note 2)

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

4

20-2242T1

ELECTRICAL WIRE

WIRE -, Serial Range: starter-solenoid

1шт.

5

20-2357T1

SENSOR

SWITCH - magnetic, engine RPM

1шт.

6

22-681

IGNITION SWITCH

SWITCH - water temperature (Without ROPS post gauges)

1шт.

20-1676T1

SWITCH

AND SENDER - water temperature (With ROPS post gauges)

1шт.

7

22-628

CABLE CLIP

CLIP - engine wire harness

2шт.

8

22-1109

CLAMP

CLIP - engine wire harness

4шт.

9

31-1862

CLAMP

CLIP - engine wire harness

1шт.

10

40-1104

CAPSCREW, M12 x 1.75 x 16 MM

2шт.

11

40-1096

CAPSCREW,Hex, M10 x 1.5 x 16mm, Gr 8.8

M10 x 1.5 x 16 MM

1шт.

12

19-107

WASHER

3/8

1шт.

13

19-108

WASHER,7/16"

7/16

2шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

4шт.

15

31-2639

HOSE

- oil pressure, 42 inch (See note 1)

1шт.

16

31-2615

ADAPTER

FITTING - bulkhead (See note 1)

1шт.

17

40-1245

LOCK NUT

NUT - lock, M6 x 1.0

1шт.

18

SOLENOID - fuel shutoff, See Figure 4-38

1шт.

19

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

CAPSCREW

2шт.

20

STARTER ASSEMBLY, See Figure 2-2

1шт.

21

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

22

19-243

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, 3/8

1шт.

23

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

24

22-738

DIODE

- A/C compressor

1шт.

25

20-2415T1

HARNESS

- diode suppressor

1шт.

26

20-2461T1

FILTER

ASSEMBLY - noise suppressor

1шт.

27

31-1349

MOUNTING CLIP

CLAMP - filter

1шт.

28

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

CAPSCREW, M8 x 1.25 x 30 MM

1шт.
