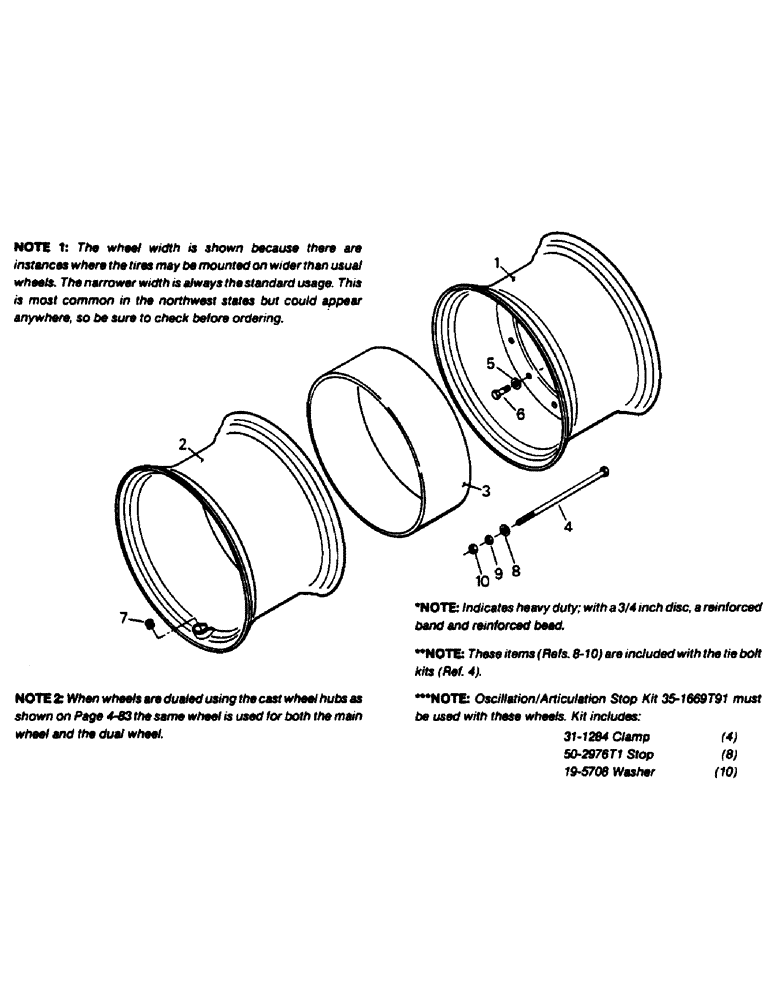

Запчасти Case IH 9130 (04-84) - WHEELS, MAIN WHEELS, DUAL WHEELS (04) - Drive Train

1

30-1386T1

WHEEL

14.9 x 38 (12 inch) (See note 1)

4шт.

The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.

1шт.

30-1383T1

WHEEL

16.9 x 38 (15 inch)

1шт.

20-46

RIM

18.4 x 34 (16 inch)

1шт.

30-1110T1

RIM

18.4 x 38 (16 inch)

1шт.

30-1112T1

RIM

18.4 x 38 (18 inch)

1шт.

20-125

RIM

18.4 x 38 (16 inch)

1шт.

30-1358T1

RIM

18.4 x 42 (16 inch)

1шт.

Oscillation/Articulation stop kit 35-1669T91 must be used with these wheels. Kit includes: 31-1284 Clamp (4), 50-2976T1 Stop (8), 19-5708 Washer (10)

1шт.

30-1313T1

RIM

18.4 x 42 (18 inch)

1шт.

Oscillation/Articulation stop kit 35-1669T91 must be used with these wheels. Kit includes: 31-1284 Clamp (4), 50-2976T1 Stop (8), 19-5708 Washer (10)

1шт.

30-1123T1

RIM

20.8 x 34 (18 inch)

1шт.

30-1112T1

RIM

20.8 x 38 (18 inch)

1шт.

Oscillation/Articulation stop kit 35-1669T91 must be used with these wheels. Kit includes: 31-1284 Clamp (4), 50-2976T1 Stop (8), 19-5708 Washer (10)

1шт.

30-1124T1

RIM

23.1 x 34 (20 inch)

1шт.

20-293

RIM

24.5 x 32 (21 inch)

1шт.

30-1161T1

RIM

24.5 x 32 (24 inch)

1шт.

20-294

RIM

30.5 x 32 (27 inch)

1шт.

30-1013T1

RIM

30.5 x 32 (27 inch)

1шт.

Indicates heavy duty with a 3/4 inch disc, a reinforced band and reinforced bead.

1шт.

30-1218T1

RIM

30.5 x 32 (30 inch)

1шт.

Indicates heavy duty with a 3/4 inch disc, a reinforced band and reinforced bead.

1шт.

30-1159T1

RIM

30.5 x 32 (30 inch)

1шт.

2

30-1389T1

WHEEL

14.9 x 38 (12 inch) (See note 2), dual wheels

4шт.

When wheels are dualed using the cast wheel hubs as shown on page 4-83 the same wheel is used for both the main wheel and the dual wheel.

1шт.

30-1388T1

RIM

16.9 x 38 (15 inch), dual wheels

1шт.

20-47

RIM

18.4 x 34 (16 inch), dual wheels

1шт.

20-127

RIM

18.4 x 38 (16 inch), dual wheels

1шт.

30-1369T1

WHEEL

18.4 x 42 (16 inch), dual wheels

1шт.

30-1317T1

RIM

18.4 x 42 (18 inch), dual wheels

1шт.

20-191

RIM

20.8 x 38 (18 inch), dual wheels

1шт.

20-107

RIM

23.1 x 34 (20 inch), dual wheels

1шт.

20-56

RIM

24.5 x 32 (21 inch), dual wheels

1шт.

30-1152T1

RIM

24.5 x 32 (24 inch), dual wheels

1шт.

3

20-70T1

SPACER

BAND - 32 inch spacer (13 inch wide), dual wheels

4шт.

20-839T1

SPACER

BAND - 32 inch spacer (15 inch wide), dual wheels

1шт.

20-162T1

SPACER

BAND - 34 inch spacer (13 inch wide), dual wheels

1шт.

20-397T1

SPACER

BAND - 34 inch spacer (15 inch wide), dual wheels

1шт.

20-1007T1

SPACER

BAND - 38 inch spacer (13 inch wide), dual wheels

1шт.

20-1404T1

HOURMETER

BAND - 38 inch spacer (14.32 inch wide), dual wheels

1шт.

20-1001T1

SPACER

BAND - 38 inch spacer (15 inch wide), dual wheels

1шт.

30-1318T1

SPACER

BAND - 42 inch spacer (15 inch wide), dual wheels

1шт.

4

35-1322T91

KIT

- tie bolt (27 inch), dual wheels

24шт.

35-1323T91

BOLT

KIT - tie bolt (32 inch), dual wheels

1шт.

35-1324T91

KIT

- tie bolt (34 inch), dual wheels

1шт.

35-1325T91

BOLT

KIT - tie bolt (36 inch), dual wheels

1шт.

5

19-2975

WASHER

- flat, hardened (Special), dual wheels

40шт.

6

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

CAPSCREW, 7/8 UNC x 2-1/2 G-8, dual wheels

40шт.

7

22-521

PLUG

(Quantity 8 with duals), wheels

4шт.

8

20-62

WASHER

7/8 x 3 x 1/4 thk, dual wheels

40шт.

These items (Refs. 8-10) are included with tie bolt kits (Ref.4)

1шт.

9

19-5753

JAM NUT

- jam, 7/8 UNC G-B, dual wheels

40шт.

These items (Refs. 8-10) are included with tie bolt kits (Ref.4)

1шт.

10

19-457

NUT,7/8"-9, G5

7/8 UNC G-B, dual wheels

40шт.

These items (Refs. 8-10) are included with tie bolt kits (Ref.4)

1шт.
