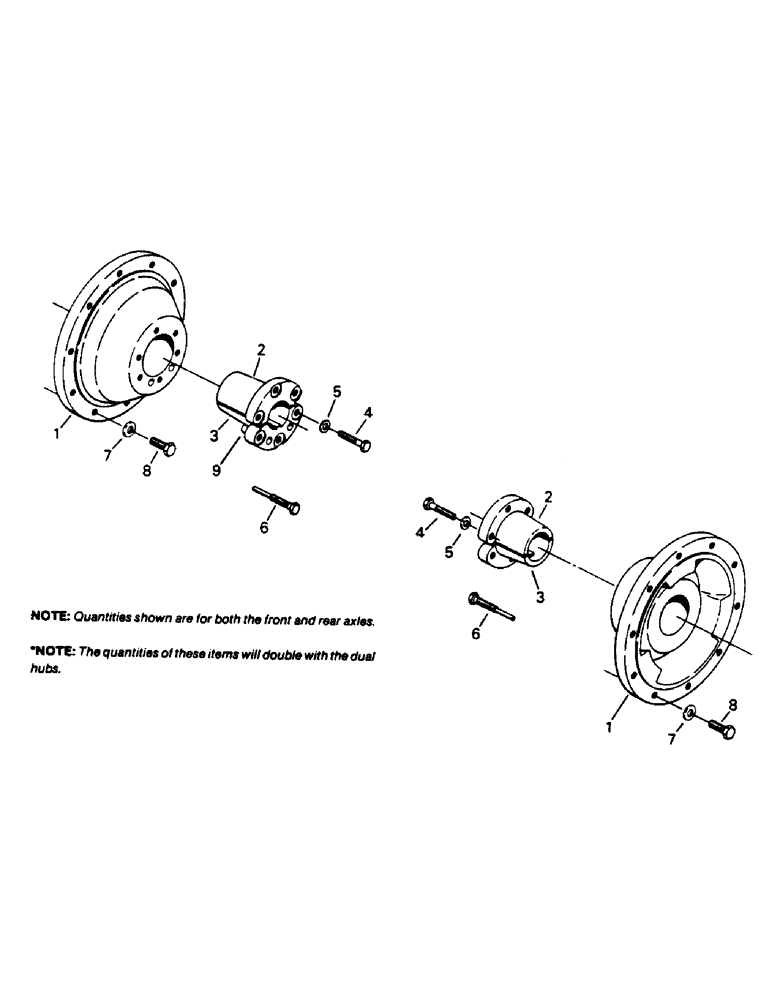

Запчасти Case IH 9130 (04-83) - WHEEL HUBS AND MOUNTING, ADJUSTABLE BAR AXLE (04) - Drive Train

1

30-1326T1

HUB

- wheel

4шт.

2

30-1327T1

HALF-BUSHING

BUSHING - half (4 inch axle shaft)

4шт.

3

30-1328T91

BUSHING

- half, Includes: Ref. 9, (4 inch axle shaft)

4шт.

4

19-6172

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 8

CAPSCREW, 3/4 UNC x 3-3/4 G-8

24шт.

5

19-5723

WASHER

- hardened, 3/4 x 1-1/2 x .15 thk

24шт.

6

30-1331T1

BOLT,7/8" - 12 x 6 1/2", Gr 8

CAPSCREW - shouldered

8шт.

7

19-2975

WASHER

- hardened (Special)

40шт.

8

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

CAPSCREW, 7/8 UNC x 2-1/2 G-8

40шт.

9

19-6254

PIN

- dowel

8шт.
