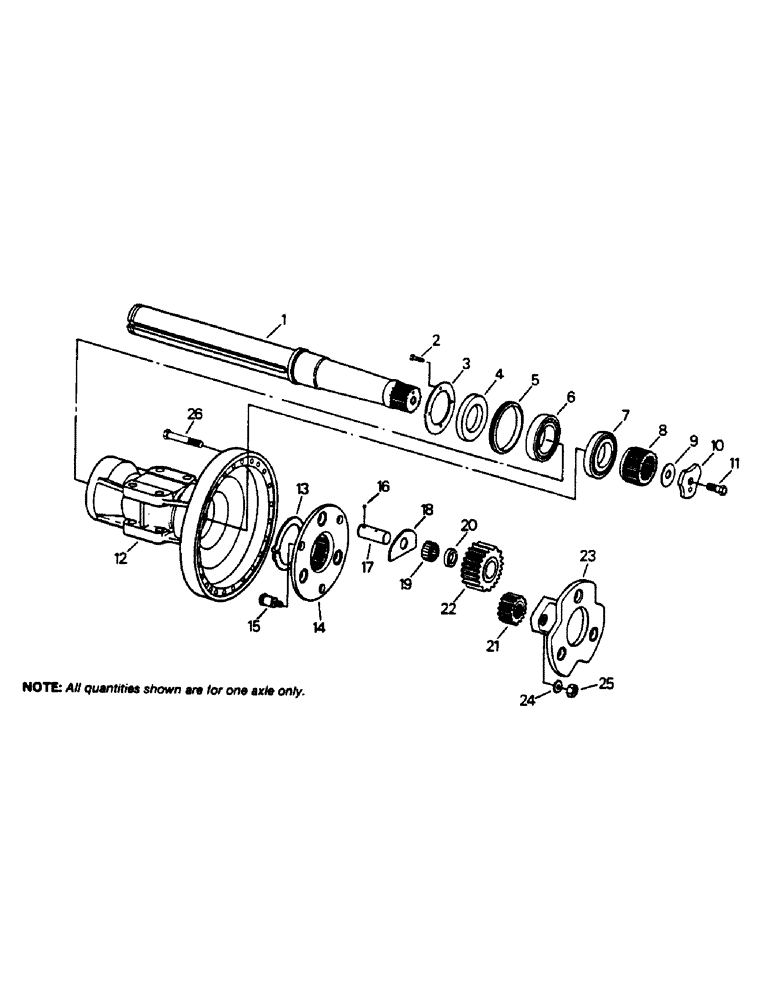

Запчасти Case IH 9130 (04-82) - AXLE SHAFT AND HOUSING ASSEMBLY, K592 BAR AXLE (04) - Drive Train

1

33-1243T1

AXLE SHAFT

SHAFT - axle

2шт.

2

40-1220

CAPSCREW,Hex, M6 x 12mm, Cl 10.9

M6 x 1.0 x 12 G-10.9

8шт.

3

33-1244T1

WEAR PLATE

PLATE - cover

2шт.

4

33-1245T1

RING

- shoulder

2шт.

5

33-1246T1

OIL SEAL

- axle shaft

2шт.

6

33-1247T1

TAPERED BEARING,105mm ID x 160mm OD x 43mm W

BEARING - roller

2шт.

7

33-1248T1

TAPERED BEARING,90mm ID x 160mm OD x 32.5mm W

BEARING - roller

2шт.

8

33-1249T1

PINION

GEAR

2шт.

9

33-1250T1

SHIM

(.10 MM)

1шт.

33-1251T1

SHIM

(.15 MM)

1шт.

33-1252T1

SHIM

(.25 MM)

1шт.

33-1253T1

SHIM

(.70 MM)

1шт.

10

33-1254T1

WASHER

- retainer

2шт.

11

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

CAPSCREW

2шт.

12

33-1255T1

AXLE HOUSING

HOUSING - axle

2шт.

13

90-2562T1

RING, SNAP

RING - snap

2шт.

33-1256T91

CARRIER

ASSEMBLY - planet, Includes: Ref. 14, 15, 23 - 25

2шт.

14

NSS

NOT SOLD SEPARAT

CARRIER I - pinion

2шт.

15

16-1608

SCREW,Hex Shldr

- clamping

6шт.

16

16-1607

BALL

- pinion shaft

6шт.

17

33-1257T1

SHAFT

- planet pinion

6шт.

18

90-2564T1

LARGE PLATE

PLATE - thrust

12шт.

19

90-2565T1

NEEDLE BEARING

- needle

12шт.

20

33-1258T1

SPACER

- bearing

6шт.

21

33-1259T1

GEAR

- planet pinion

6шт.

22

33-1260T1

SUN GEAR

GEAR - sun

2шт.

23

NSS

NOT SOLD SEPARAT

CARRIER II - pinion

2шт.

24

16-1599

WASHER

6шт.

25

16-1598

NUT

M16 x 1.5

6шт.

26

33-1261T1

CAPSCREW,Flg, 5/16" - 18 x 1", Gr 8

24шт.

33-1262T1

CAPSCREW,Torx, #10 - 24 x .375"

M14 x 1.5 x 112 G-10.9

24шт.
