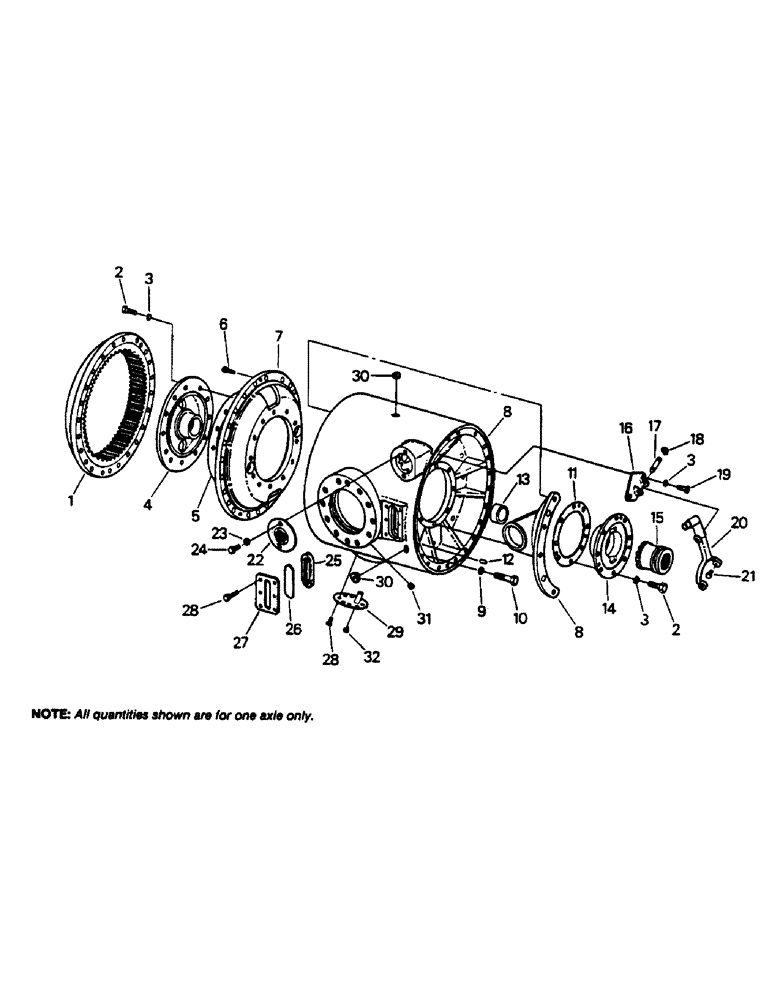

Запчасти Case IH 9130 (04-80) - DIFFERENTIAL HOUSING ASSEMBLY, K592 BAR AXLE (04) - Drive Train

1

33-1263T1

RING

GEAR - ring

2шт.

2

33-1264T1

CAPSCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

20шт.

3

33-1265T1

LOCK WASHER

WASHER - lock (Quantity 22 with differential lock)

20шт.

4

33-1266T1

SUPPORT

- bearing

1шт.

5

33-1267T1

SHIM

- support (.10 MM)

1шт.

33-1268T1

SHIM

- support (.15 MM)

1шт.

33-1269T1

SHIM

- support (.25 MM)

1шт.

33-1270T1

SHIM

- support (.70 MM)

1шт.

6

33-1271T1

CAPSCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

- socket head

3шт.

7

33-1272T1

COVER

- side

1шт.

8

33-1273T91

HOUSING ASSY.

HOUSING ASSEMBLY - drive (With differential lock), Includes: Ref. 9 - 11

1шт.

33-1274T91

HOUSING ASSY.

HOUSING ASSEMBLY - drive (Without differential lock), Includes: Ref. 9 - 11

1шт.

9

33-1182T1

LOCK WASHER

- lock

5шт.

10

33-1180T1

SCREW

CAPSCREW

5шт.

11

33-1279T1

SHIM

- support (.10 MM)

1шт.

33-1280T1

SHIM

- support (.15 MM)

1шт.

33-1281T1

SHIM

- support (.25 MM)

1шт.

33-1282T1

SHIM

- support (.70 MM)

1шт.

12

33-1277T1

DOWEL

PIN - dowel

2шт.

13

33-1278T1

RING

BUSHING - used with differential lock only

1шт.

14

33-1283T1

SUPPORT

- bearing

1шт.

15

33-1284T1

SLEEVE

- shift, used with differential lock only

1шт.

16

33-1285T1

SUPPORT

- shift, used with diferential lock only

1шт.

17

33-1286T1

PIVOT PIN

PIN - pivot, used with differential lock only

1шт.

18

33-1287T1

RING, SNAP

RING - snap, used with differential lock only

2шт.

19

33-1288T1

CAPSCREW,M12 x 25mm, Cl 10.9

- used with differential lock only

2шт.

20

33-1289T1

FORK

YOKE - shift, used with differential lock only

1шт.

21

33-1290T1

PIN

- thrust, used with differential lock only

1шт.

22

33-1291T1

SEAL

- shift yoke, used with differential lock

1шт.

33-1292T1

COVER

- shift opening used without differential lock

1шт.

23

33-1294T1

WASHER

- used with differential lock only

2шт.

24

33-1295T1

SCREW

CAPSCREW - used with differential lock

2шт.

33-1293T1

SCREW

CAPSCREW - used without differential lock

6шт.

25

33-1296T1

GASKET

- oil level window

1шт.

26

33-1297T1

GLASS,CAB

WINDOW - oil level check

1шт.

27

33-1298T1

LARGE PLATE

COVER - window

1шт.

28

33-1299T1

CAPSCREW,M8 x 1.25 x 16mm

14шт.

29

90-6902T1

COVER

1шт.

30

33-1301T1

PLUG

- fill/drain

2шт.

31

31-357

PLUG

1шт.

32

31-303

BREATHER

VENT - breather

1шт.
