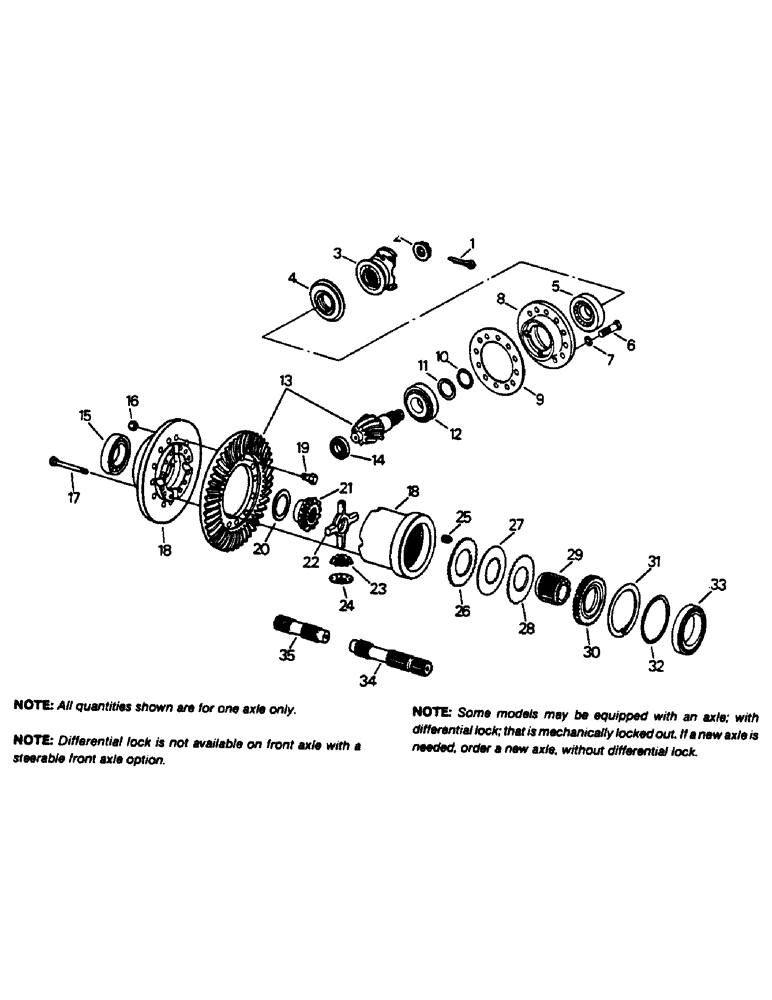

Запчасти Case IH 9130 (04-78) - DIFFERENTIAL ASSEMBLY, K592 BAR AXLE (04) - Drive Train

90-6910T91

AXLE, FRONT

AXLE ASSEMBLY (Front) (Without differential lock)

1шт.

90-6911T91

AXLE, REAR

AXLE ASSEMBLY (Rear) (Without differential lock)

1шт.

90-6855T91

FRONT AXLE

AXLE ASSEMBLY (Front) (With differential lock)

1шт.

1

16-1590

COTTER PIN,M6.3 x 63

PIN - cotter

1шт.

2

16-1589

NUT

NUT - slotted

1шт.

3

90-6948T1

YOKE

- axle (33-1177T1)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

4

33-1178T1

OIL SEAL

- pinion

1шт.

5

33-1179T1

TAPERED BEARING

BEARING - roller

1шт.

6

33-1180T1

SCREW

CAPSCREW (Rear axle)

12шт.

33-1181T1

SCREW

CAPSCREW (Front axle)

12шт.

7

33-1182T1

LOCK WASHER

- lock

12шт.

8

33-1183T91

CAGE ASSY.

CAGE ASSEMBLY - bearing, Include: Ref. 5 & 12

1шт.

9

33-1184T1

SHIM

- bearing (.10 MM)

1шт.

33-1185T1

SHIM

- bearing (.15 MM)

1шт.

33-1186T1

SHIM

- bearing (.25 MM)

1шт.

33-1187T1

SHIM

- bearing (.70 MM)

1шт.

10

33-1188T1

SPACER

- bearing (6.90 MM)

1шт.

33-1189T1

SPACER

- bearing (7.00 MM)

1шт.

33-1190T1

SPACER

- bearing (7.02 MM)

1шт.

33-1191T1

SPACER

- bearing (7.04 MM)

1шт.

33-1192T1

SPACER

- bearing (7.06 MM)

1шт.

33-1193T1

SPACER

- bearing (7.08 MM)

1шт.

33-1194T1

SPACER

- bearing (7.10 MM)

1шт.

33-1195T1

SPACER

- bearing (7.20 MM)

1шт.

33-1196T1

SPACER

- bearing (7.32 MM)

1шт.

33-1197T1

SPACER

- bearing (7.44 MM)

1шт.

33-1198T1

SPACER

- bearing (7.56 MM)

1шт.

33-1199T1

SPACER

- bearing (7.68 MM)

1шт.

33-1200T1

SPACER

- bearing (7.80 MM)

1шт.

33-1201T1

SPACER

- bearing (7.92 MM)

1шт.

11

33-1202T1

SPACER

- bearing (6.90 MM)

1шт.

33-1203T1

SPACER

- bearing (7.00 MM)

1шт.

33-1204T1

SPACER

- bearing (7.02 MM)

1шт.

33-1205T1

SPACER

- bearing (7.04 MM)

1шт.

33-1206T1

SPACER

- bearing (7.06 MM)

1шт.

33-1207T1

SPACER

- bearing (7.08 MM)

1шт.

33-1208T1

SPACER

- bearing (7.10 MM)

1шт.

33-1209T1

SPACER

- bearing (7.20 MM)

1шт.

33-1210T1

SPACER

- bearing (7.32 MM)

1шт.

33-1211T1

SPACER

- bearing (7.44 MM)

1шт.

33-1212T1

SPACER

- bearing (7.56 MM)

1шт.

33-1213T1

SPACER

- bearing (7.68 MM)

1шт.

33-1214T1

SPACER

- bearing (7.80 MM)

1шт.

33-1215T1

SPACER

- bearing (7.92 MM)

1шт.

12

33-1216T1

TAPERED BEARING

BEARING - roller

1шт.

13

33-1217T91

RING

GEAR SET - ring and pinion (Rear), Includes: Ref. 1, 2, 16 and 19

1шт.

33-1218T91

GEAR-SET

GEAR SET - ring and pinion (Front), Includes: Ref. 1, 2, 16 and 19

1шт.

14

33-1219T1

ROLLER BEARING,35 mm ID x 80 mm OD x 21 mm

- roller

1шт.

15

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - roller

1шт.

16

33-1220T1

NUT

12шт.

17

33-1221T1

CAPSCREW,Hex, M14 x 1.5 x 140mm, Cl 10.9

12шт.

18

33-1222T91

BOX

CASE ASSEMBLY - differential, Includes: Ref. 17

1шт.

19

33-1224T1

CAPSCREW,Hex

12шт.

20

33-1225T1

SPACER

- side gear

2шт.

21

33-1226T1

GEAR

- side

2шт.

22

33-1227T1

DIFF. SPIDER

SPIDER - pinion gear

1шт.

23

33-1228T1

GEAR

- pinion

4шт.

24

33-1229T1

SPACER

- pinion gear

4шт.

25

33-1230T1

SPRING

- compression

17шт.

26

33-1231T1

DISC

DISK - thrust

1шт.

27

33-1232T1

CLUTCH DISC

DISK - inner

15шт.

28

33-1233T1

DISC

DISK - outer

14шт.

29

33-1234T1

HUB

- splined

1шт.

30

33-1235T1

LARGE PLATE

PLATE - backing

1шт.

31

1-6727

RING, SNAP

RING - snap

1шт.

32

33-1236T1

WASHER

1шт.

33

33-1237T1

TAPERED BEARING

- roller

1шт.

34

33-1238T1

SHAFT

- inner, long

1шт.

35

33-1239T1

SHAFT

- inner, short

1шт.
