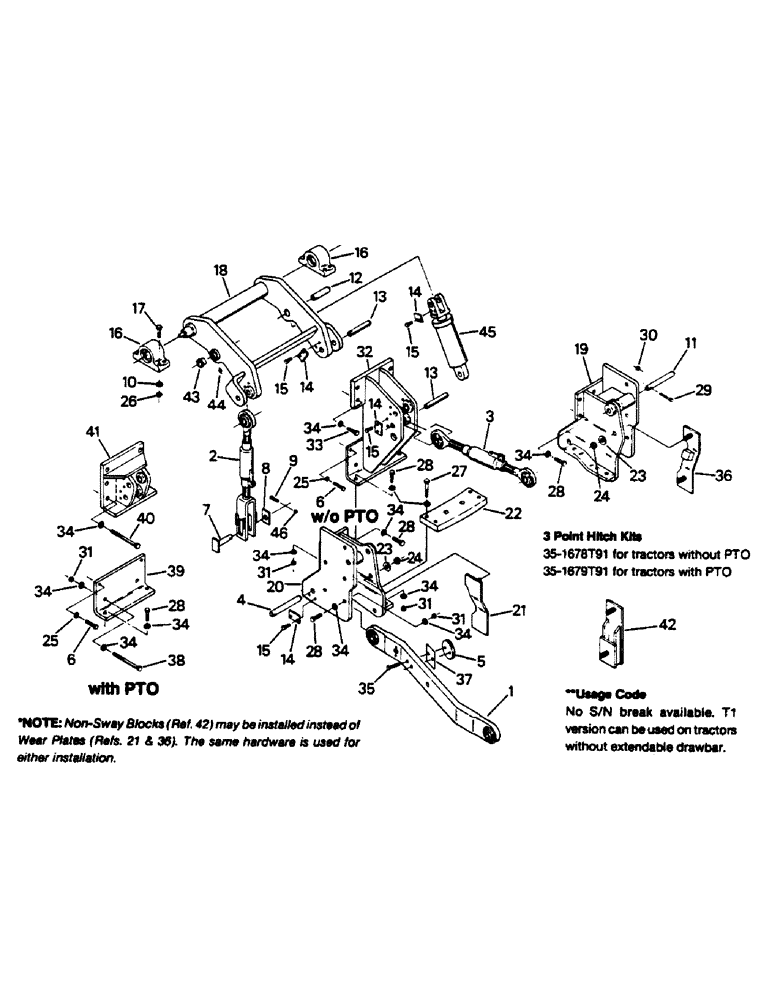

Запчасти Case IH 9130 (10-01) - THREE POINT HITCH AND MOUNTING Options & Miscellaneous

1

70-4612T1

ARM

- draft, hitch

2шт.

2

LINK ASSEMBLY - lift, See Figure 10-04

2шт.

3

LINK ASSEMBLY - upper, See Figure 10-04

1шт.

4

70-4222T1

PIN

- draft arm

2шт.

5

2-2516T2

LARGE PLATE

PLATE - wear

2шт.

6

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CAPSCREW, 1/2 UNC x 2 G-8

2шт.

7

70-5025T1

PIN

- lift link (70-4423T1)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

8

70-4425T1

LARGE PLATE

PLATE - pin

2шт.

9

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 UNC x 2 G-5 (19-6088)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

10

19-6120

WASHER

- flat, hardened, 15/16 x 1-3/4 x 1/8 thk

8шт.

11

70-4225T1

PIN

- lift cylinder, bottom

2шт.

12

70-4601T1

PIN

- lift cylinder, top

2шт.

13

70-4256T1

PIN

- upper link and lift link

3шт.

14

70-308T2

BLOCK - pin retaining

7шт.

15

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

CAPSCREW, 1/2 UNC x 1 G-8

14шт.

16

1-4855T2

BLOCK

BEARING - pillow block

2шт.

17

19-5426

SCREW,Hex, 7/8" - 9 x 2 3/4", Gr 8

CAPSCREW, 7/8 UNC x 2-3/4 G-8

8шт.

18

70-4286T91

ROCKER

SHAFT ASSEMBLY, Includes: Ref. 43 & 44

1шт.

19

70-4294T2

SHOCK ABSORBER

MOUNT - right lower link

1шт.

20

70-4291T2

MOUNTING PARTS

MOUNT - left lower link

1шт.

21

70-4252T2

PLATE

- right wear

1шт.

22

70-3152T2

HANGER

BAR - drawbar hanger (70-3152T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

23

19-5739

WASHER

- flat, hardened 1 x 2 x 5/32 thk

4шт.

24

19-859

LOCK NUT

- lock, 1 UNC G-C

4шт.

25

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened (Special)

2шт.

26

19-457

NUT,7/8"-9, G5

7/8 UNC G-B

8шт.

27

19-1118

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

CAPSCREW, 3/4 UNC x 3-1/2 G-8

4шт.

28

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

CAPSCREW, 3/4 UNC x 2-1/2 G-8

20шт.

29

19-1119

BOLT,3/8" - 16 x 3 1/2", Gr 8

CAPSCREW, 3/8 UNC x 3-1/2 G-8

2шт.

30

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

2шт.

31

19-84

NUT,3/4"-10, G5

3/4 UNC G-B (Quantity 16 without PTO)

18шт.

32

70-4247T1

MOUNTING PARTS

MOUNT - upper link (Without PTO)

1шт.

33

19-1087

BOLT,Hex, 3/4" - 10 x 3", Gr 8

CAPSCREW, 3/4 UNC x 2 G-8

4шт.

34

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 thk (Quantity 44 without PTO)

50шт.

35

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CAPSCREW, 1/2 UNC x 2 G-8

4шт.

36

70-4487T1

PLATE

- right wear

1шт.

37

70-4633T1

SHIM

- wear plate

2шт.

38

9430302

BOLT,Hex, 3/4" - 10 x 7", Gr 8

CAPSCREW, 3/4 UNC x 7 G-8

2шт.

39

70-4251T2

LARGE PLATE

PLATE - spacer (70-4251T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

40

19-6116

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 8

CAPSCREW, 3/4 UNC x 8-1/2 G-8

6шт.

41

70-4886T1

SUPPORT

LINK - upper mount (With PTO)

1шт.

42

70-4410T2

BLOCK

- right, non-sway

1шт.

70-4607T1

BLOCK

- left, non-sway

1шт.

43

70-4274T2

BUSHING

- cylinder pivot

2шт.

44

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

45

CYLINDER ASSEMBLY - 3 point, See Figure 10-03

2шт.

46

19-341

LOCK NUT,3/8" - 16, GB

NUT - lock, 3/8 UNC G-A

2шт.
