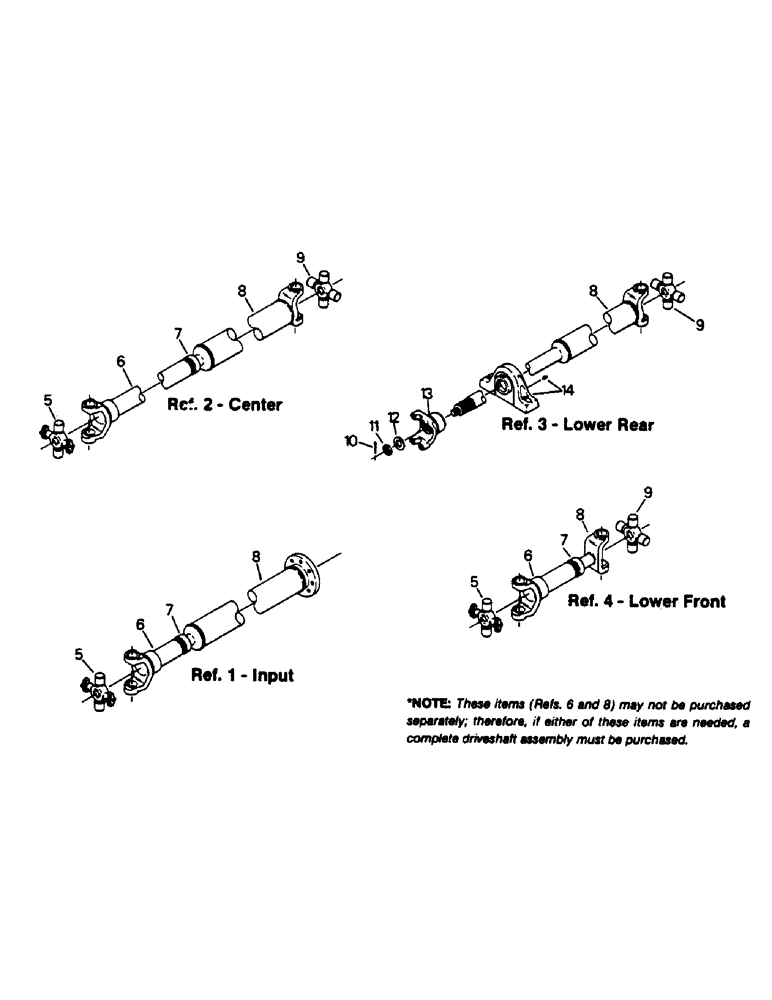

Запчасти Case IH 9130 (04-75) - DRIVESHAFTS (04) - Drive Train

1

90-6646T91

DRIVE SHAFT

DRIVESHAFT ASEMBLY, Includes: Ref. 5 - 8

1шт.

2

90-6643T91

DRIVE SHAFT

DRIVESHAFT ASSEMBLY, Includes: Ref. 5 - 9

1шт.

3

90-6922T91

DRIVE SHAFT

DRIVESHAFT ASSEMBLY, Includes: Ref. 8 - 14

1шт.

4

90-6921T91

SHAFT

DRIVESHAFT ASSEMBLY, Includes: Ref. 5 - 9

1шт.

5

33-1005T1

U-JOINT SPIDER

U-JOINT - driveshaft

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY

1шт.

7

33-1001T1

SEAL RETAINER

SEAL ASSEMBLY - retaining

1шт.

8

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

9

33-1004T1

JOINT

U-JOINT - driveshaft

1шт.

10

33-1314T1

WASHER

PIN - cotter, driveshaft

1шт.

11

33-1315T1

NUT

- driveshaft

1шт.

12

33-1316T1

WASHER

- driveshaft

1шт.

13

33-1313T1

YOKE

- driveshaft

1шт.

14

33-1008T1

BEARING

PILLOW BLOCK

1шт.
