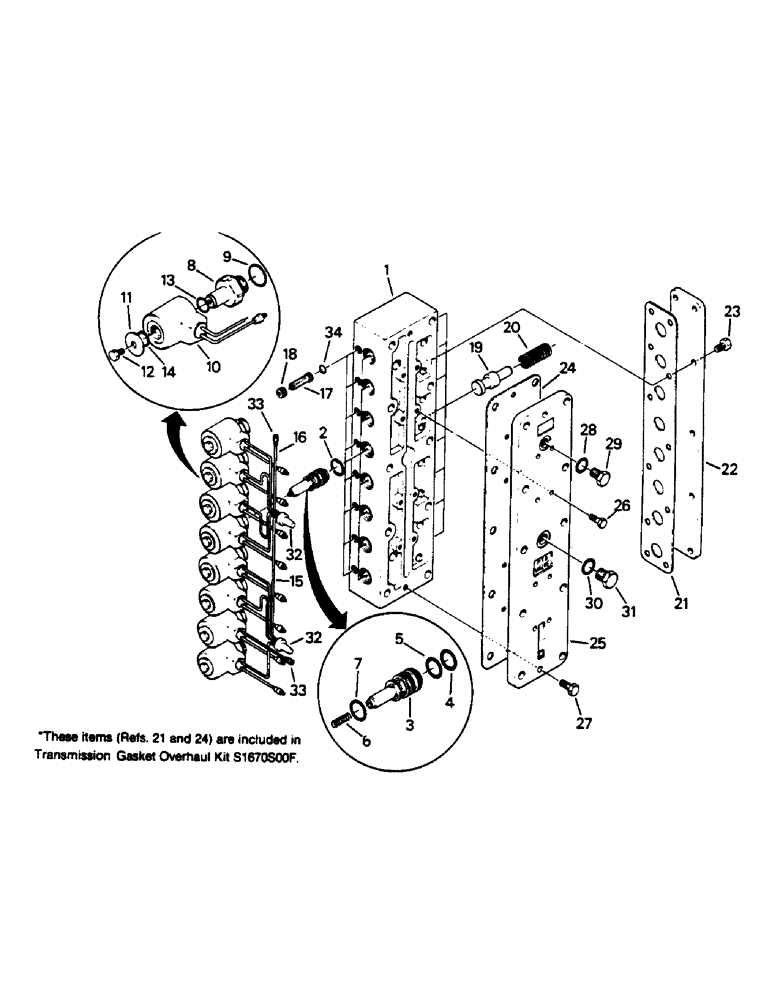

Запчасти Case IH 9130 (04-69) - RANGE SELECTOR VALVE ASSEMBLY (04) - Drive Train

S9000S01F

CHECK VALVE

VALVE ASSEMBLY - range selector, Includes: Ref. 1 - 34

1шт.

1

S9050S00F

VALVE BODY

BODY - valve

1шт.

2

S9090S00F

RING, SNAP

RING - snap

8шт.

S9300S01F

SOLENOID

ASSEMBLY, Includes: Ref. 3 - 14

8шт.

371737A1R

REMAN-SOLENOID

Reman for New PN S9300S01F

8шт.

371737A1C

CORE-SOLENOID

Return Number

8шт.

3

S9180S01F

VALVE, CHECK

VALVE ASSEMBLY - pilot

8шт.

4

S9310S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

8шт.

5

S9320S00F

O-RING

8шт.

6

S9330S01F

SPRING

8шт.

7

S9380S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

8шт.

8

S9340S00F

PLUG

- solenoid

8шт.

9

S9350S00F

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

8шт.

10

S9070S00F

SOLENOID

AND WIRE ASSEMBLY

8шт.

10

371737A1R

REMAN-SOLENOID

Reman for New PN S9070S00F

8шт.

10

371737A1C

CORE-SOLENOID

Return Number

8шт.

11

S9360S00F

WASHER

8шт.

12

S9370S00F

BOLT

8шт.

13

S9390S00F

O-RING

8шт.

14

S9400S00F

O-RING

8шт.

15

S9130S00F

ELECTRICAL WIRE

WIRE

1шт.

16

S9120S00F

ELECTRICAL WIRE

WIRE - with terminal

1шт.

17

S9060S00F

SCREEN

- filter

8шт.

18

S9080S00F

PLUG

8шт.

19

S9040S00F

VALVE

- selector

8шт.

20

S9010S00F

SPRING

- selector valve

8шт.

21

S9030S00F

GASKET

- side plate

1шт.

22

S9020S00F

PLATE

- valve side

1шт.

23

SM8120820

BOLT

CAPSCREW, M8 x 1.25 x 20 MM G-8.8

11шт.

24

S9110S00F

GASKET

- valve cover

1шт.

25

S9100S00F

COVER

- valve

1шт.

26

SM8120620

CAPSCREW

M6 x 1.00 x 20 MM G-8.8

8шт.

27

SM8120825

BOLT

CAPSCREW, M8 x 1.25 x 25 MM G-8.8

2шт.

28

S1040S00F

O-RING

- plug

1шт.

29

S1030S00F

PLUG

Includes: Ref. 28

1шт.

30

S1320S00F

O-RING

- plug

1шт.

31

S1390S00F

PLUG

Includes: Ref. 30

1шт.

32

S9140S00F

TERMINAL CONNECTOR

TERMINAL

2шт.

33

S9160S00F

TERMINAL CONNECTOR

TERMINAL

2шт.

34

S9170S00F

O-RING

- filter

8шт.
