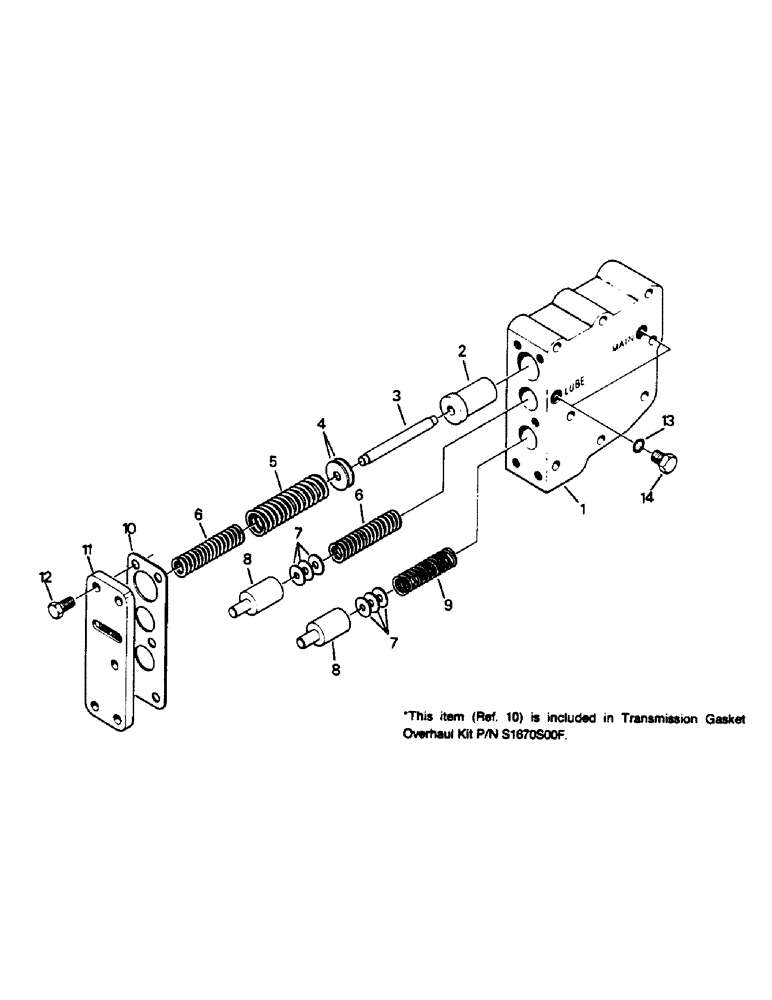

Запчасти Case IH 9130 (04-67) - REGULATOR VALVE ASSEMBLY (04) - Drive Train
9
12
8
4
14
10
7
1
2
5
6
11
8
7
6
3
13
№
Артикул
Название
Примечание
Количество
S7000S00F
VALVE
ASSEMBLY - regulator, Includes: Ref. 1- 14
1шт.
1
S7040S00F
VALVE BODY
BODY - regulator
1шт.
2
S7030S00F
VALVE
- regulator
1шт.
3
S7020S00F
STEM
ROD - pressure
1шт.
4
S7010S00F
SHIM,.039" Thk
1шт.
5
S7120S00F
SPRING
- compression
1шт.
6
S7050S00F
SPRING
- compression
2шт.
7
S7080S00F
SHIM,.031" Thk
1шт.
8
S7060S00F
VALVE
- lube
1шт.
9
S7070S00F
SPRING
- compression
1шт.
10
S7090S00F
GASKET
- valve cover
1шт.
11
S7110S00F
COVER
- valve body
1шт.
12
SM8120820
BOLT
CAPSCREW, M8 x 1.25 x 20 MM G-8.8
5шт.
13
S1040S00F
O-RING
2шт.
14
S1030S00F
PLUG
Includes: Ref. 13
2шт.
Выбрано товаров: 15
