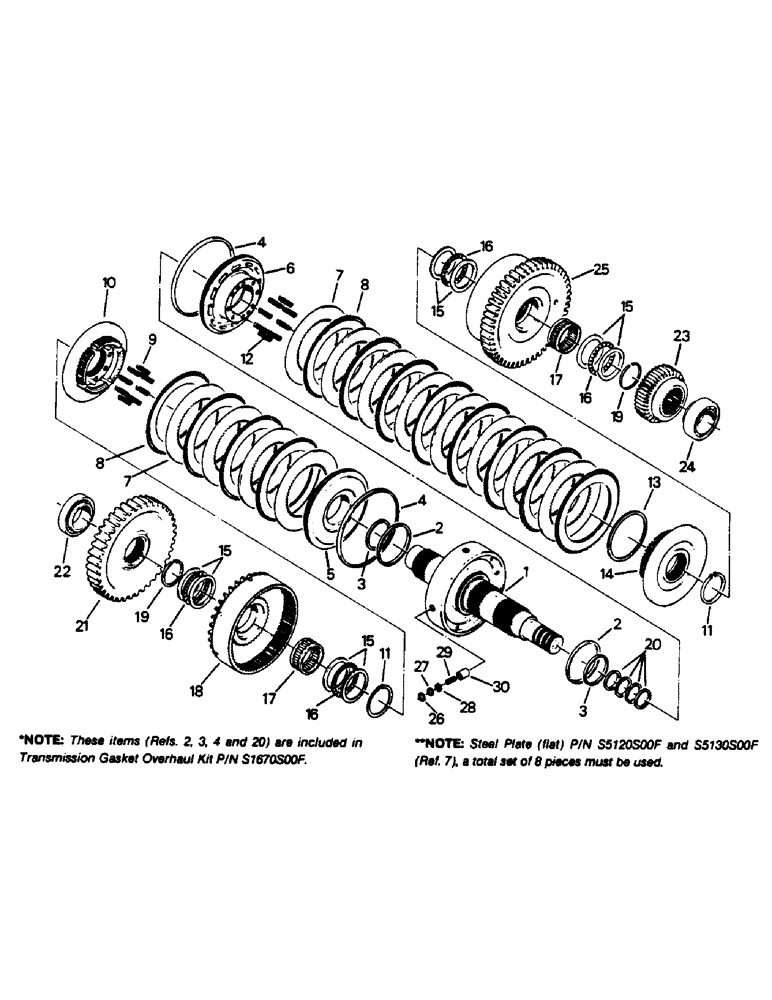

Запчасти Case IH 9130 (04-65) - 9 INCH CLUTCH PACK ASSEMBLY (04) - Drive Train

S5000S00F

CLUTCH HOUSING

(1-30) CLUTCH PACK ASSEMBLY - 9 inch, Includes: Ref. 1 - 30

1шт.

1

S5900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S5520S00F

RING

- piston

2шт.

3

S5510S00F

RING

- piston

2шт.

4

S4430S00F

RING

- sealing

2шт.

5

S5760S00F

PISTON

- clutch

1шт.

6

S5180S00F

PISTON

- clutch

1шт.

7

S5120S00F

CLUTCH DISC

PLATE - steel (Flat 2.6 MM)

1шт.

S5130S00F

CLUTCH DISC

PLATE - steel (Flat 2.4 MM)

1шт.

8

S5570S00F

LARGE PLATE

PLATE - faced

8шт.

9

S5550S00F

SPRING

- return

8шт.

10

S5850S00F

HUB

- clutch

1шт.

11

S5100S00F

RING, SNAP

RING - snap

2шт.

12

S5540S00F

SPRING

- return

8шт.

13

S5490S00F

RING

- retaining

1шт.

14

S5840S00F

GASKET

HUB - clutch

1шт.

15

S5230S00F

BEARING WASHER

WASHER - bearing thrust

8шт.

16

S5050S00F

THRUST BEARING

BEARING - thrust

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

18

S5080S00F

PINION

GEAR - clutch (37T)

1шт.

19

S5040S00F

RING

- retaining

2шт.

20

S3070S00F

RING

- sealing

4шт.

21

S5060S00F

PINION

GEAR - input (43T)

1шт.

22

1-1584

BEARING CUP,4.4375" OD x 1.1875"

CUP - bearing

1шт.

90-1319T1

ROLLER BEARING,2.5" ID x 1.1875"

CONE - bearing

1шт.

23

S5270S00F

PINION

GEAR - (21T)

1шт.

24

90-6579T1

BEARING CUP

CUP - bearing

1шт.

1-1583

ROLLER BEARING,2.625" ID x 1.1875"

CONE - bearing

1шт.

25

S5280S00F

GEAR

- clutch (46T)

1шт.

26

SM9222160

RING, SNAP

RING - snap

2шт.

27

S3220S00F

SHIM

1шт.

28

S3230S00F

SHIM

1шт.

29

S3210S00F

SPRING

- valve

2шт.

30

S3200S00F

DRAIN VALVE

VALVE - drain

2шт.
