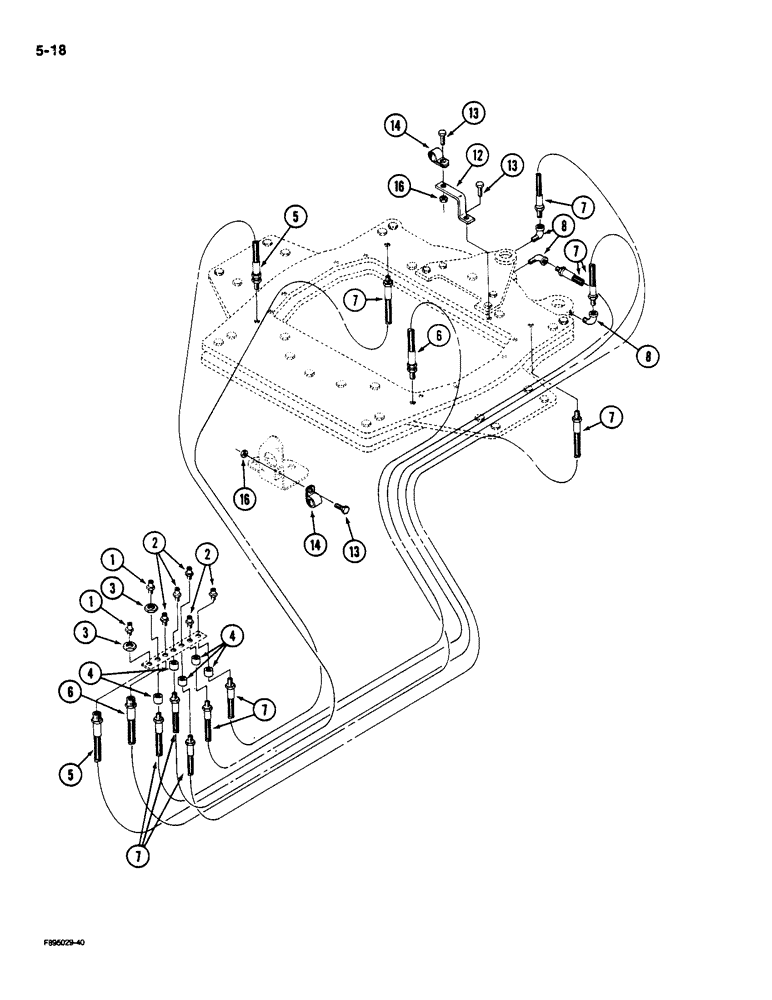

Запчасти Case IH 9110 (5-18) - STEERABLE AXLE STRUCTURE, GREASE LINES (05) - STEERING

1

31-1093

FITTING

- grease, 1/4 inch NF

2шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

5шт.

3

F53473

LOCK NUT,1/8-27 NPSM

- hex jam, 1/8 inch NPSM

2шт.

4

31-57

COUPLING

- straight, 1/8 inch PT

5шт.

5

1339231C1

TUBE,737 mm Length

- grease line, 29 inch long

1шт.

6

1339005C1

TUBE,1321 mm L

- grease line, 52 inch long

1шт.

7

199373C2

HOSE,12.7mm ID x 1473.2mm L

TUBE - grease line, 58 inch

5шт.

8

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree, 1/8 inch PT (REPLACED 221-1441)

3шт.

12

70-5462T1

BRACKET

- clamp mounting

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

14

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

2шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.
