Запчасти Case IH 9110 (4-62) - STEERABLE AXLE HARNESS (04) - ELECTRICAL SYSTEMS

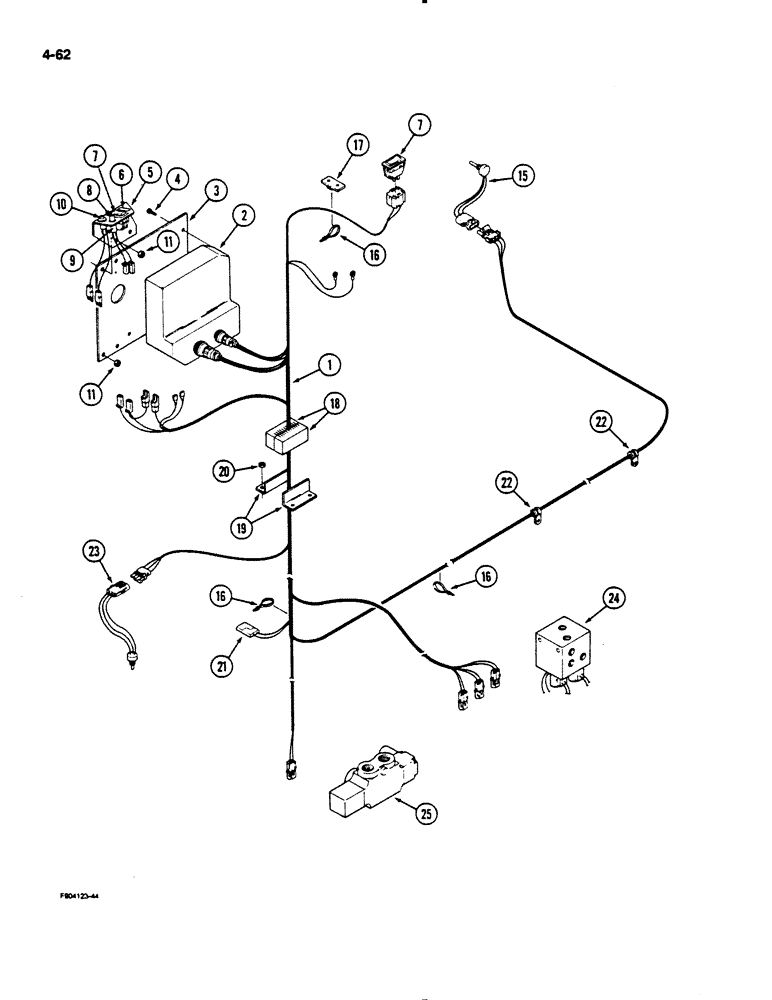

Схема запчастей Case IH 9110 - (4-62) - STEERABLE AXLE HARNESS (04) - ELECTRICAL SYSTEMS
25
16
18
17
2
22
16
8
15
23
5
20
22
11
1
21
11
7
10
9
24
16
6
7
19
4
3

Артикул

Название

Примечание

Количество

1

60-6156T1

HARNESS

ASSEMBLY - steerable axle

1шт.

2

20-2491T1

CONTROL

LER - steerable axle, electronic

1шт.

3

90-6692T1

PLATE

- mounting, controller

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, No. 10 NS x 3/4 inch

4шт.

5

20-2434T1

BRACKET

- mounting, switch

1шт.

6

60-5754T1

DECAL

- switch

1шт.

7

245012C1

SWITCH

- rocker

2шт.

8

20-2437T1

LIGHT ASSY.

LIGHT ASSEMBLY - indicator

1шт.

9

23731R1

BULB,C2F, #1893, 14V

- lamp, No.1893

1шт.

10

1-7128

IGNITION SWITCH

SWITCH - calibration

1шт.

11

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

REF

INSTRUCTION

POTENTIOMETER ASSEMBLY - electrical (See Fig. 5-24)

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

3шт.

17

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

18

60-6066T1

FOAM

- sealing

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

21

22-738

DIODE

- electrical

1шт.

22

31-1775

CLAMP

- tube

2шт.

23

20-2322T1

POTENTIOMETER

Assemby, Electrical

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - make up (See Fig. 5-30)

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - steering selector (See Fig. 5-28)

1шт.

Выбрано товаров: 22
