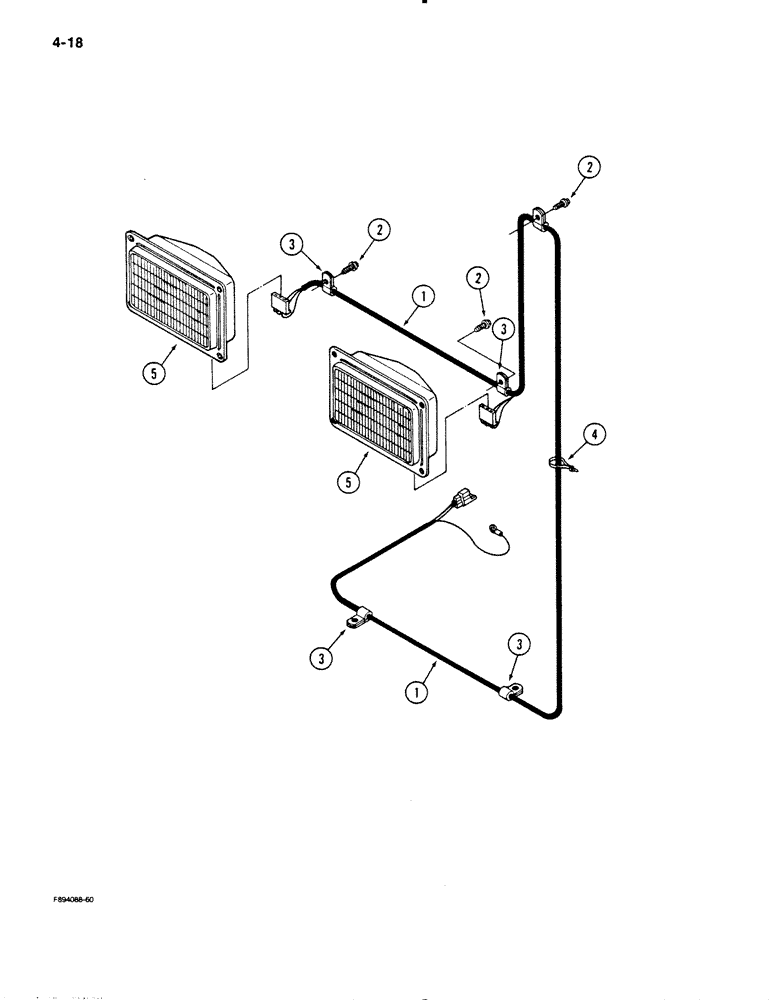

Запчасти Case IH 9110 (4-18) - FRONT HEADLIGHT HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2224T1

HARNESS

ASSEMBLY - headlamp

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged head, 1/4 NC x 3/4 inch

3шт.

3

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

5шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

REF

INSTRUCTION

LAMP ASSEMBLY - head (See Page 4-39)

2шт.
