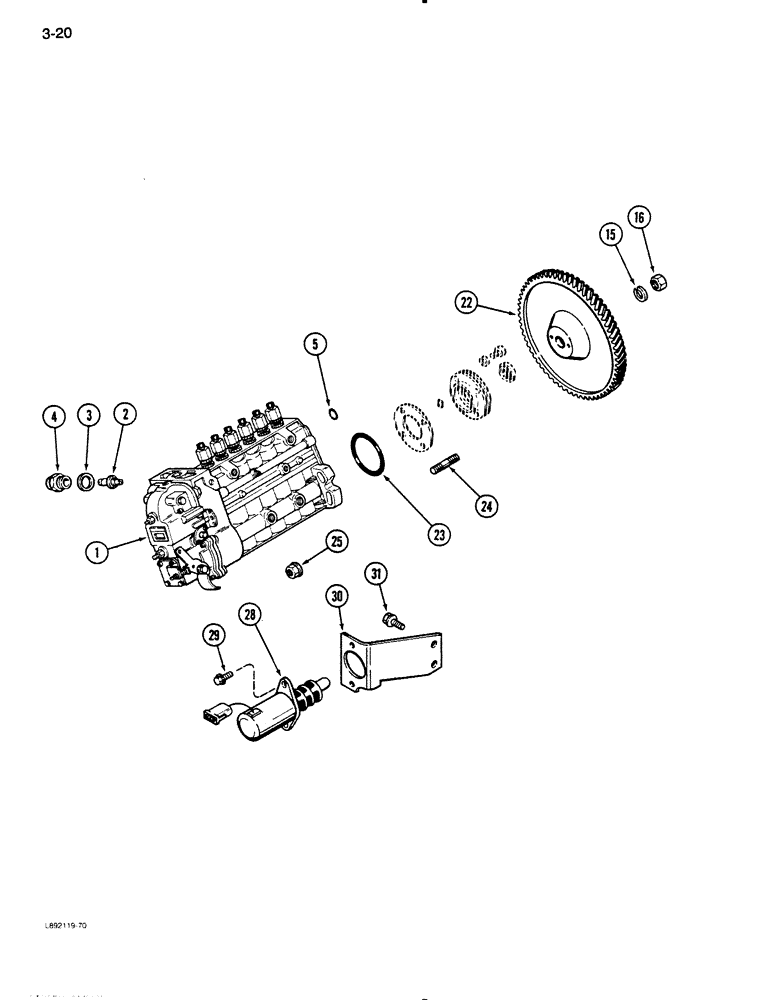

Запчасти Case IH 9110 (3-20) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE (03) - FUEL SYSTEM

1

J915972

PUMP, FUEL INJECTION

PUMP ASSEMBLY - injection, fuel (New), Includes: Ref. 2 - 16

1шт.

1

JR915972

REMAN-INJECTION PUMP

Pump Assembly, injection, remanufactured 2100 RPM / 220 HP, Includes: Ref. 2 - 16

1шт.

1

JC915972

CORE-INJECTION PUMP

Return Part Number injection pump (Use this part number when returning pump core for credit.), Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - timing

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - plug

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - timing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - port, oil

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

22

J912615

GEAR

- pump, fuel

1шт.

23

J910502

O-RING

- sealing

1шт.

24

J915036

STUD

- mounting, pump, 55 mm (2-5/32 in)

4шт.

25

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

28

J914093

SOLENOID

- shutoff, fuel

1шт.

29

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

30

J916144

BRACKET

- solenoid mounting

1шт.

31

J903990

BOLT,Hex Flg, M10 x 20, 10.9

- hex flange, 10 mm - 1.5 x 20 mm

2шт.
