Запчасти Case IH 9110 (2-50) - PISTONS, 6T-830 ENGINE (02) - ENGINE

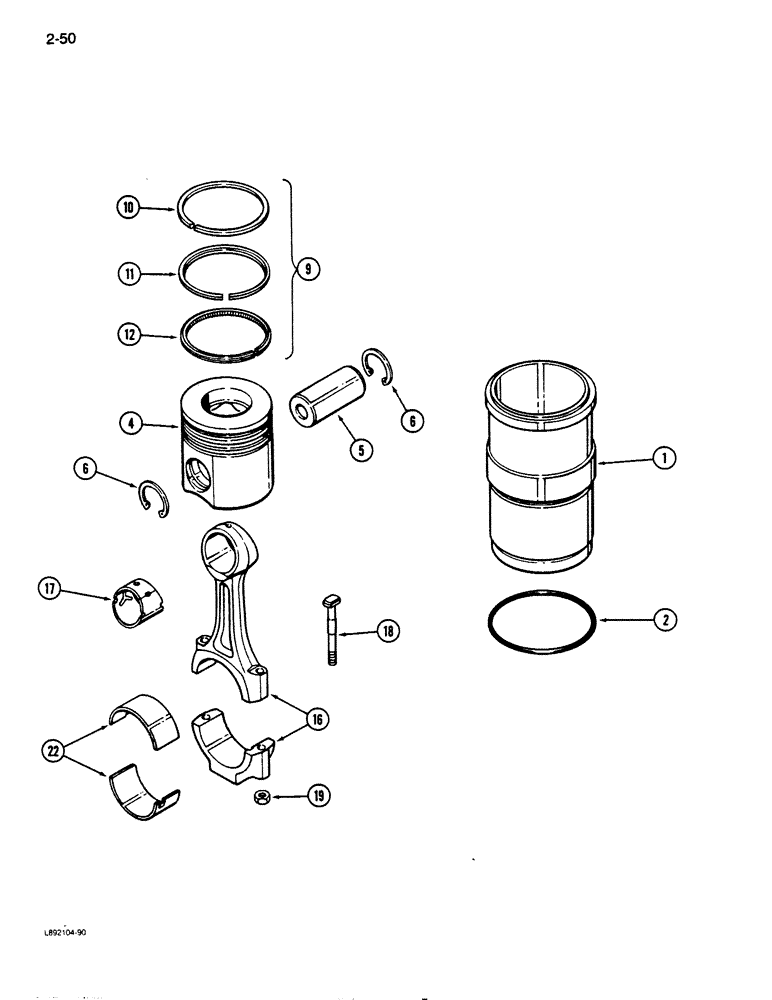

Схема запчастей Case IH 9110 - (2-50) - PISTONS, 6T-830 ENGINE (02) - ENGINE
17
6
10
6
18
4
16
1
9
19
2
11
22
5
12

Артикул

Название

Примечание

Количество

A77598

CYLINDER

PISTON AND SLEEVE KIT - engine, Includes: Ref. 1 - 12

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

PISTON KIT - engine, standard, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Stamped 8749)

1шт.

5

J901597

PIN

- piston

1шт.

6

J901996

RING

- retaining

2шт.

9

A77562

PISTON RING SET

RING KIT - piston, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

A77610

SLEEVE CYLINDER

SLEEVE KIT - piston (Includes Ref 1 and 2)

6шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured (North America Only), Includes: Ref. 17 - 19

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit, Includes: Ref. 17 - 19

1шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 - 19

6шт.

84487529R

REMAN-CONNECTING ROD

9110, 9130 S/N JCB0003600 & AFTER Both(7/89 - 8/90), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod

1шт.

18

J901380

BOLT

- rod bearing retaining, connecting

2шт.

19

J901381

SPECIAL NUT

- hex, bolt retaining, connecting rod

2шт.

22

A77564

BEARING SET

BEARING KIT - rod, upper and lower, 0.25 mm undersize (Set), connecting

6шт.

22

A77565

BEARING SET

BEARING KIT - rod, upper and lower, 0.50 mm undersize (Set), connecting

6шт.

22

A77566

BEARING SET

BEARING KIT - rod, upper and lower, 0.75 mm undersize (Set), connecting

6шт.

22

A77567

BEARING SET

BEARING KIT - rod, upper and lower, 1.00 mm undersize (Set), connecting

6шт.

Выбрано товаров: 24
