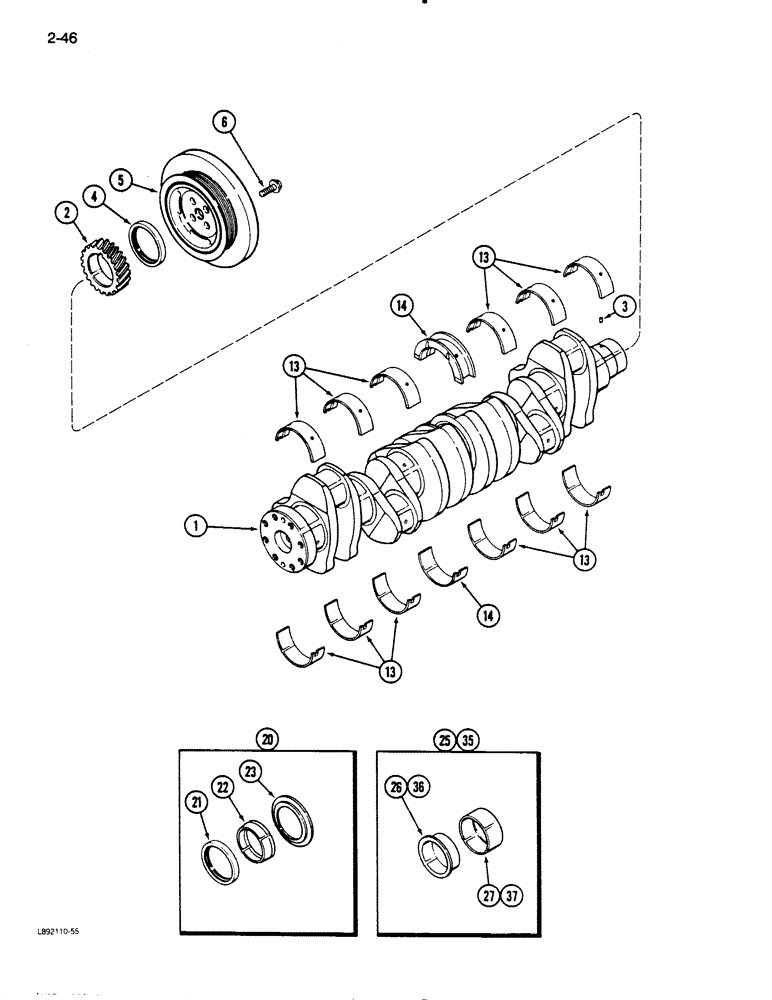

Запчасти Case IH 9110 (2-46) - CRANKSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

JR904363

CRANKSHAFT

- engine, remanufactured (NORTH AMERICA ONLY), Includes: Ref. 2 and 3

1шт.

JC904363

CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit, Includes: Ref. 2 and 3

1шт.

1

J904363

CRANKSHAFT

- engine, new, Includes: Ref. 2 and 3

1шт.

2

J907645

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref 20)

1шт.

5

J914456

DAMPER

PULLEY - damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, 14 mm - 2.0 x 35 mm

4шт.

13

A77569

BEARING SET

BEARING KIT - main, upper and lower, standard

6шт.

13

A77570

BEARING LINER

BEARING KIT - main, upper and lower, 0.25 mm undersize

6шт.

13

A77571

BEARING LINER

BEARING KIT - main, upper and lower, 0.50 mm undersize

6шт.

13

A77572

BEARING LINER

BEARING KIT - main, upper and lower, 0.75 mm undersize

6шт.

13

A77573

BEARING LINER

BEARING KIT - main, upper and lower, 1.00 mm undersize

6шт.

14

A77574

BEARING LINER

BEARING KIT - main thrust, upper and lower, standard

1шт.

14

A77575

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.25 mm undersize

1шт.

14

A77576

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.50 mm undersize

1шт.

14

A77577

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 0.75 mm undersize

1шт.

14

A77578

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 1.00 mm undersize

1шт.

20

J908139

SEAL

KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J908277

SLEEVE

KIT - wear, crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

KIT - wear, crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
