Запчасти Case IH 9110 (2-42) - CYLINDER BLOCK, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

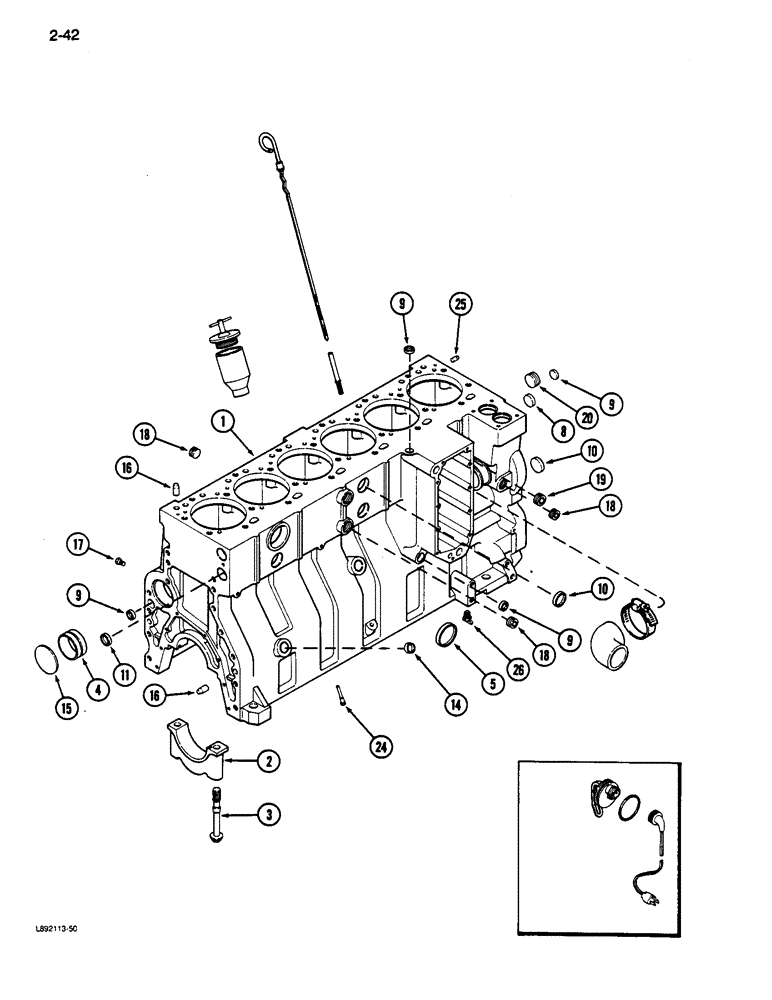

Схема запчастей Case IH 9110 - (2-42) - CYLINDER BLOCK, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE
9
20
10
15
17
11
25
3
9
24
5
18
16
14
1
16
9
26
18
19
4
18
10
2
8
9

Артикул

Название

Примечание

Количество

A174238

ENGINE

ENGINE ASSEMBLY - 6T-830, complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

47466038R

REMAN-BASIC ENGINE

6T-830, Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47466038C

CORE-BASIC ENGINE

Return Part Number

1шт.

A174239

ENGINE

ENGINE ASSEMBLY - 6TA-830, complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

47466039R

REMAN-BASIC ENGINE

6TA-830, Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47466039C

CORE-BASIC ENGINE

Return Part Number

1шт.

87448684

REMAN-SHORT ENGINE

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number Short Block

1шт.

J912531

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J909415 kit), Includes: Ref. 2 - 10

1шт.

JR912531

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Short, Remanufactured Includes: Ref. 2 - 10

1шт.

JC912531

CORE-SHORT ENGINE

Return Part Number, Use This Part Number To Return Block Core For Credit, Includes: Ref. 2 - 10

1шт.

JR911898

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Stripped, Remanufactured, Includes: Ref. 2 - 10

1шт.

JC911898

SKELETON ENGINE

Return Part Number, Use This Part Number To Return Block Core For Credit, Includes: Ref. 2 - 10

1шт.

87448699

REMAN-SHORT ENGINE

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number Short Block

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped (Also order J909415 kit), Includes: Ref. 2 - 10

1шт.

2

J905397

CAP

CAP - bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

BOLT - hex flange, 14 mm - 2.0 x 128 mm

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft

7шт.

5

J900965

PLUG

PLUG - expansion, 58 mm OD

1шт.

8

A77586

PLUG

PLUG - expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

PLUG - expansion, 35 mm OD

3шт.

J909415

KIT

HARDWARE KIT - block, Includes: Ref. 11 - 26

1шт.

11

A77530

PLUG

PLUG - expansion 1-3/16 inch OD

2шт.

14

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

15

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 inch PT

6шт.

18

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 inch PT

4шт.

19

A77505

PLUG

PLUG - hex socket pipe, 1/2-18 inch PT

2шт.

20

A77533

PLUG

PLUG - hex, 1 inch PT

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - piston cooling

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

Выбрано товаров: 35
