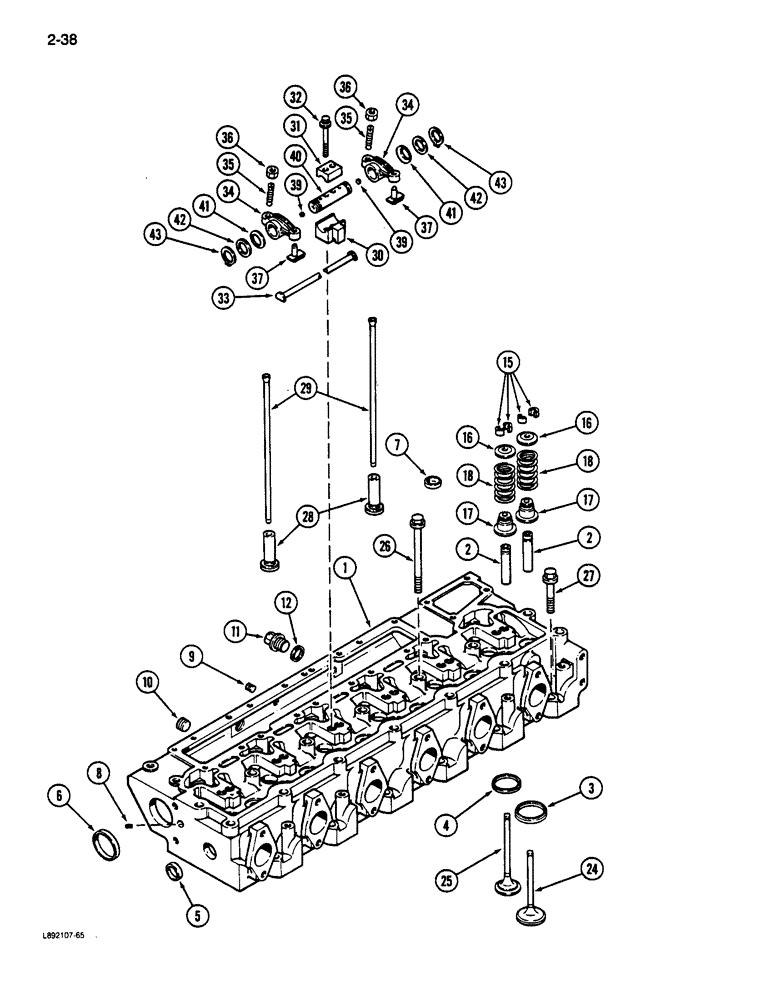

Запчасти Case IH 9110 (2-38) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, 6TA-830 (02) - ENGINE

J913111

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, Includes: Ref. 1 - 27

1шт.

JR913111

HEAD

HEAD ASSEMBLY - cylinder, remanufactured , Includes: Ref. 1 - 27

1шт.

JC913111

HEAD (CYLINDER)

Return Part Number - use this part number to return head for credit, Includes: Ref. 1 - 27

1шт.

JR968930

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

JC968930

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J911287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 7

1шт.

2

J901187

GUIDE

GUIDE - stem, valve

12шт.

3

J908830

INSERT

INSERT - seat, intake valve

6шт.

4

J904716

INSERT

INSERT - seat, exhaust valve

6шт.

5

A77530

PLUG

PLUG - expansion

6шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

2шт.

7

A77590

PLUG

PLUG - expansion, 28,7 mm

5шт.

8

A77534

PLUG

PLUG - hex, 1/16 - 27 inch PT

1шт.

9

A77428

PLUG

PLUG - hex socket pipe, 1/4-18 inch PT

1шт.

10

A77429

PLUG

PLUG - hex socket pipe, 1/2 inch PT

2шт.

11

J904386

PLUG

PLUG - hex flange, 22 mm

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

2шт.

15

J901177

VALVE

KEEPER - valve

24шт.

16

J912976

RETAINER

RETAINER - valve spring

12шт.

17

J915707

SEAL

SEAL - intake and exhaust valve stem and guide

12шт.

18

J906412

VALVE SPRING

SPRING, VALVE

12шт.

24

J902253

VALVE

VALVE - intake

6шт.

25

J902254

VALVE

VALVE - exhaust

6шт.

26

J907233

BOLT

BOLT - hex flange, 14 mm - 2.0 x 150 mm

14шт.

27

J907234

BOLT

BOLT - hex flange, 14 mm - 2.0 x 70 mm

12шт.

28

J907240

TAPPET

TAPPET - valve, push rod

12шт.

29

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

30

J905870

SUPPORT

SUPPORT - shaft, rocker arm

6шт.

31

J901693

CLAMP

CLAMP - retaining, shaft

6шт.

32

J901617

12 PT SCREW,M10 x 1.25 x 65mm, Cl 12.9

BOLT - 12 point, retaining

12шт.

33

J910911

MANIFOLD

MANIFOLD - oil, rocker arm

1шт.

34

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 35 - 37

12шт.

35

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

36

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

37

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

39

J907555

PLUG

PLUG - rocker arm shaft, 1/4-18 PT

12шт.

40

J915415

SHAFT

SHAFT - rocker

6шт.

41

J906100

SPRING CUP

WASHER - spring

12шт.

42

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

WASHER - flat, end

12шт.

43

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
