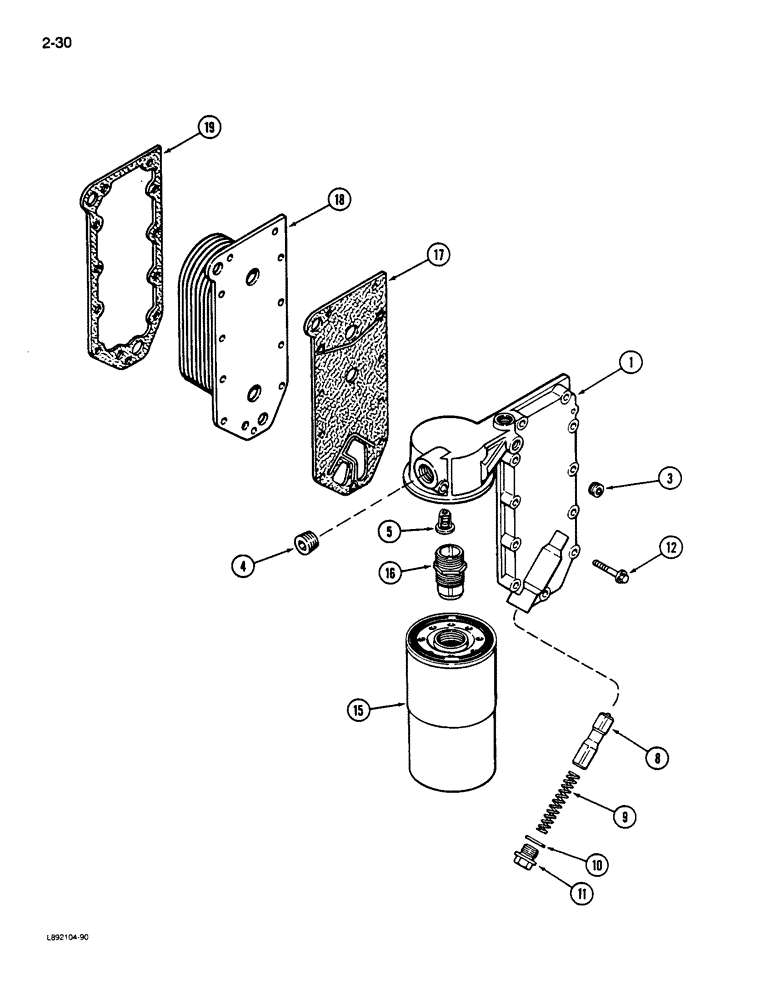

Запчасти Case IH 9110 (2-30) - OIL FILTER AND COOLER, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

1

J907831

HEAD

ASSEMBLY - filter and cooler

1шт.

3

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

4

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

8

A77540

PLUNGER

- regulator

1шт.

9

A77541

SPRING

- compression

1шт.

10

J901798

SEALING WASHER

WASHER - sealing

1шт.

11

J906299

PLUG

- regulator

1шт.

12

J901445

FLANGE BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 45 mm

11шт.

15

A77537

ENGINE OIL FILTER

FILTER - oil

1шт.

16

A77542

ADAPTER

- filter

1шт.

17

J914308

GASKET

- filter head

1шт.

18

J906296

CORE, RADIATOR

CORE - cooler, oil

1шт.

19

J914307

GASKET

- cooler core

1шт.
