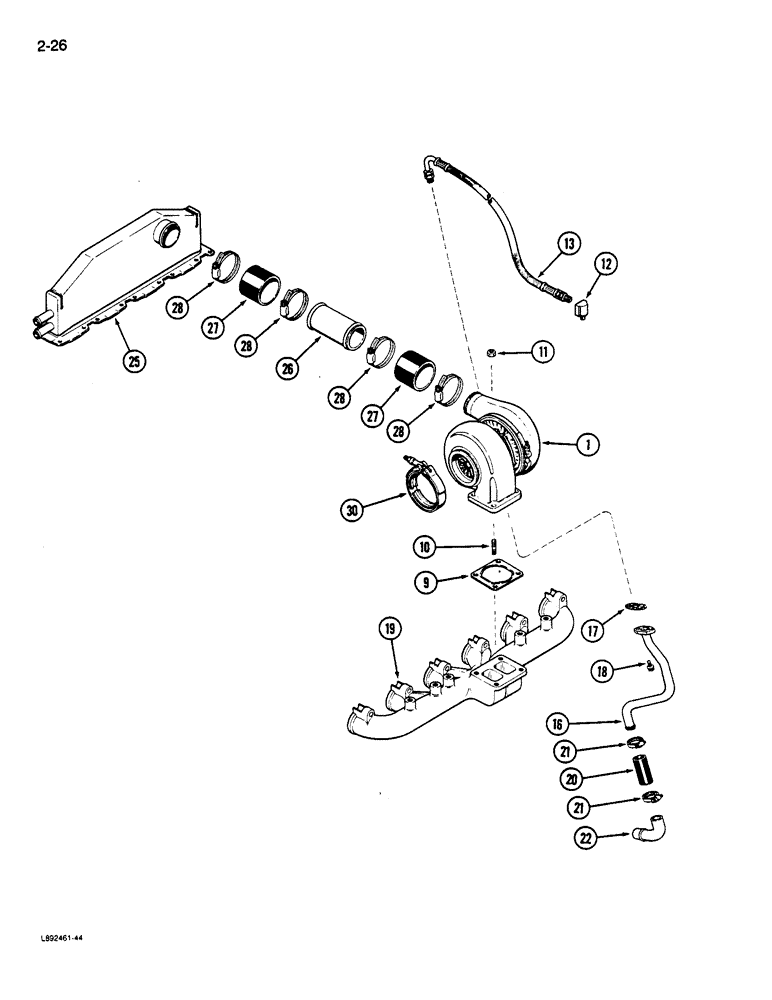

Запчасти Case IH 9110 (2-26) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Fig. 2-10)

1шт.

9

J911941

GASKET

- mounting, turbocharger

1шт.

10

J905417

STUD

- turbocharger mounting

4шт.

11

J901961

NUT

- hex, 10 mm - 1.25

4шт.

12

A77588

ELBOW

- adapter, 90 degree

1шт.

13

J909545

HOSE

Turbocharger Oil Supply

1шт.

16

J913396

TUBE

- oil drain

1шт.

17

J914388

GASKET

- mounting, drain tube

1шт.

18

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

19

REF

INSTRUCTION

MANIFOLD - exhaust (See Fig. 2-23)

1шт.

20

J903745

LARGE HOSE

HOSE - tube, drain

1шт.

21

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - elbow, drain

1шт.

25

REF

INSTRUCTION

AFTERCOOLER - intake (See Fig. 2-22)

1шт.

26

REF

INSTRUCTION

TUBE - air, cross over (See Fig. 2-22)

1шт.

27

REF

INSTRUCTION

HOSE - tube, air (See Fig. 2-22)

2шт.

28

REF

INSTRUCTION

CLAMP - hose, 1-13/16 to 2-3/4 inch (See Fig. 2-22)

4шт.

30

A170807

CLAMP,102mm ID

tube retaining

1шт.
