Запчасти Case IH 9110 (2-22) - MANIFOLDS, 6TA-830 ENGINE, EXHAUST, INTAKE AFTERCOOLER (02) - ENGINE

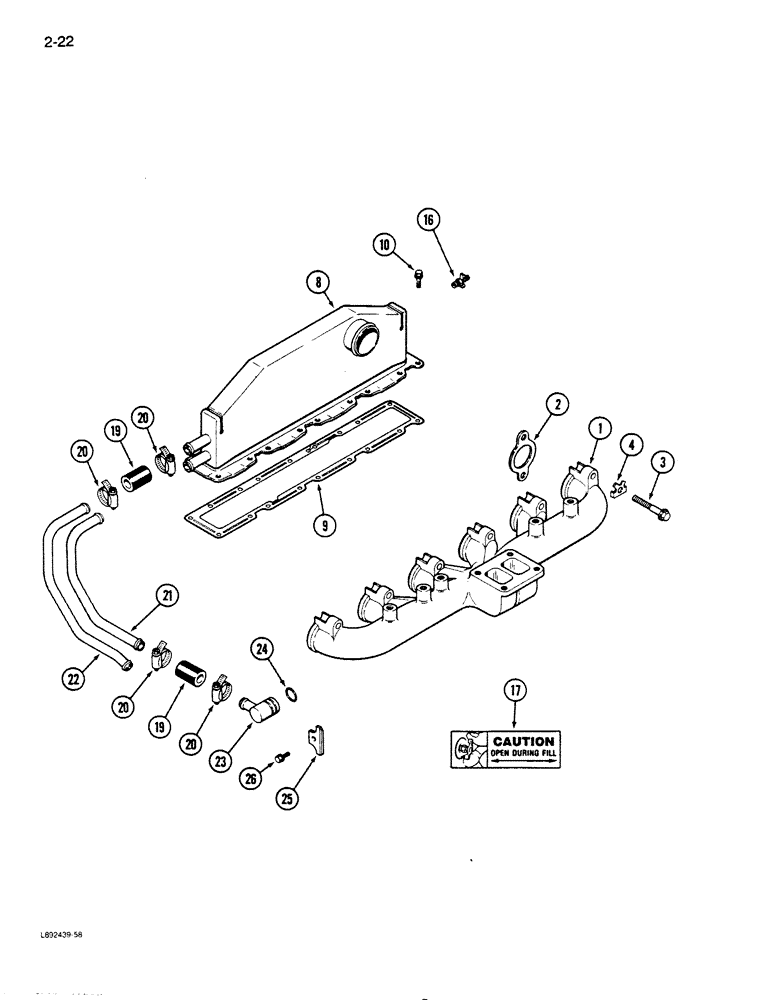

Схема запчастей Case IH 9110 - (2-22) - MANIFOLDS, 6TA-830 ENGINE, EXHAUST, INTAKE AFTERCOOLER (02) - ENGINE
2
20
23
3
20
19
4
21
17
19
20
9
1
26
8
20
25
10
22
24
16

Артикул

Название

Примечание

Количество

1

J906720

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- manifold, exhaust

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 mm - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - lock, manifold bolt

12шт.

8

J914501

COOLER

AFTERCOOLER - intake

1шт.

9

J914311

MANIFOLD GASKET

- mounting, intake aftercooler

1шт.

10

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- aftercooler retaining, intake

18шт.

16

J909394

COCK, DRAIN

VALVE - drain, intake aftercooler

1шт.

17

J910778

DECAL

- open during fill, intake aftercooler

1шт.

19

J917791

HOSE

- supply tube to aftercooler, intake

4шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose retaining, intake aftercooler

8шт.

21

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler

1шт.

22

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler

1шт.

23

J906438

ELBOW

- hose adapter, intake aftercooler

2шт.

24

A58292

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- elbow, intake aftercooler

2шт.

25

J906439

PLATE

- mounting, intake aftercooler

1шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , intake aftercooler Hex Flg, M8 x 16, 8.8, Full Thd

1шт.

Выбрано товаров: 17
