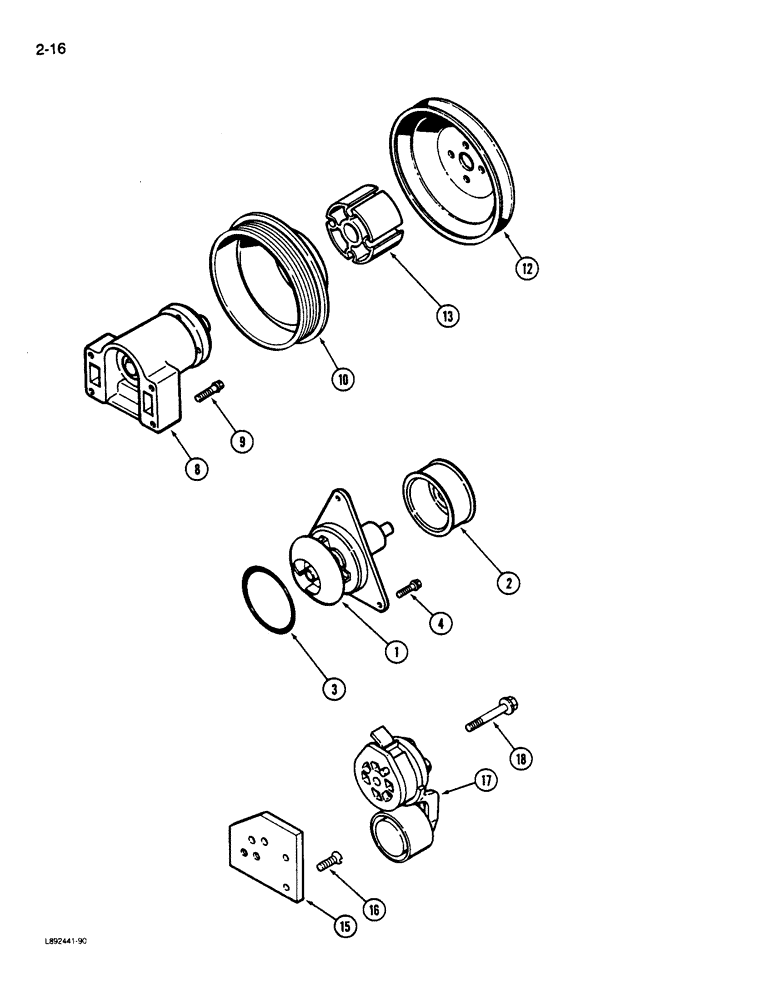

Запчасти Case IH 9110 (2-16) - WATER PUMP SYSTEM, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

AR77579

PUMP, WATER

PUMP - water, remanufactured (North America Only)

1шт.

J800976R

REMAN-WATER PUMP

9110, 9130, Both 6T-830 ENGINE, 6TA-830 ENGINE (S/N JCB0003600 & AFTER) (7/89-8/90), Reman for New P/N AR77579

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77579

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77703

PUMP, WATER

PUMP KIT - water (REPLACED A77579), Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

Reman for new P/N A77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77579)

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

8

J910738

SUPPORT ASSY.

SUPPORT ASSEMBLY - fan

1шт.

9

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex, 8 mm - 1.25 x 50 mm

4шт.

10

J914462

PULLEY,163mm OD

- fan

1шт.

12

J908819

PULLEY

- accessory drive, 60 mm bolt circle

1шт.

13

J910130

SPACER

- fan

1шт.

15

J905936

SUPPORT

BRACKET - mounting, tensioner

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 mm - 1.25 x 25 mm

2шт.

17

J912246

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

18

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 mm - 1.50 x 70 mm

1шт.
