Запчасти Case IH 9110 (2-14) - ENGINE MOUNTING (02) - ENGINE

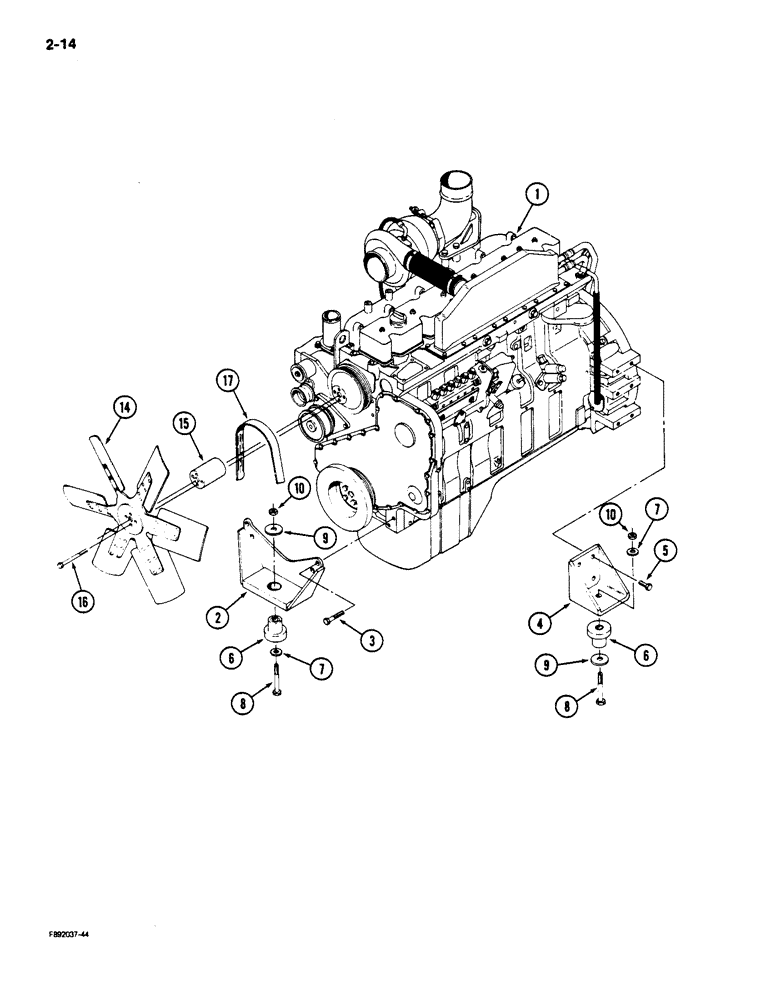

Схема запчастей Case IH 9110 - (2-14) - ENGINE MOUNTING (02) - ENGINE
9
6
3
15
7
6
16
8
8
5
10
10
14
9
2
4
1
17
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ENGINE ASSEMBLY - 6T-830 (9110 and Puma)

1шт.

1

REF

INSTRUCTION

ENGINE ASSEMBLY - 6TA-830 (9130 and Wildcat)

1шт.

2

90-6432T1

ANCHOR

MOUNT - engine, front

1шт.

3

40-1237

BOLT,M12 x 1.75 x 60mm, Gr 8.8

- hex, 12 x 60 mm

4шт.

4

90-6436T1

MOUNTING PARTS

MOUNT - engine, left and right rear

2шт.

5

40-1212

CAPSCREW,Hex, M12 x 1.75 x 35mm, Gr 10.9

BOLT - hex, 12 x 35 mm, Grade 10.9

8шт.

6

24-231

RUBBER MOUNTING

MOUNT - isolator, rubber

3шт.

7

19-1071

WASHER,21/32" x 1 5/16" x 0.15", HDN

- flat, 5/8 x 1-5/16 x 5/32 inch

3шт.

8

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

3шт.

9

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

3шт.

10

19-222

LOCK NUT,5/8" - 11, GB

NUT - hex lock, 5/8 inch NC

3шт.

14

90-5857T1

FAN

- engine

1шт.

15

A184523

SPACER

- fan

1шт.

16

40-1074

BOLT,Hex, M10 x 1.5 x 80mm, Gr 8.8

- hex, 10 x 80 mm

4шт.

17

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.

Выбрано товаров: 15
