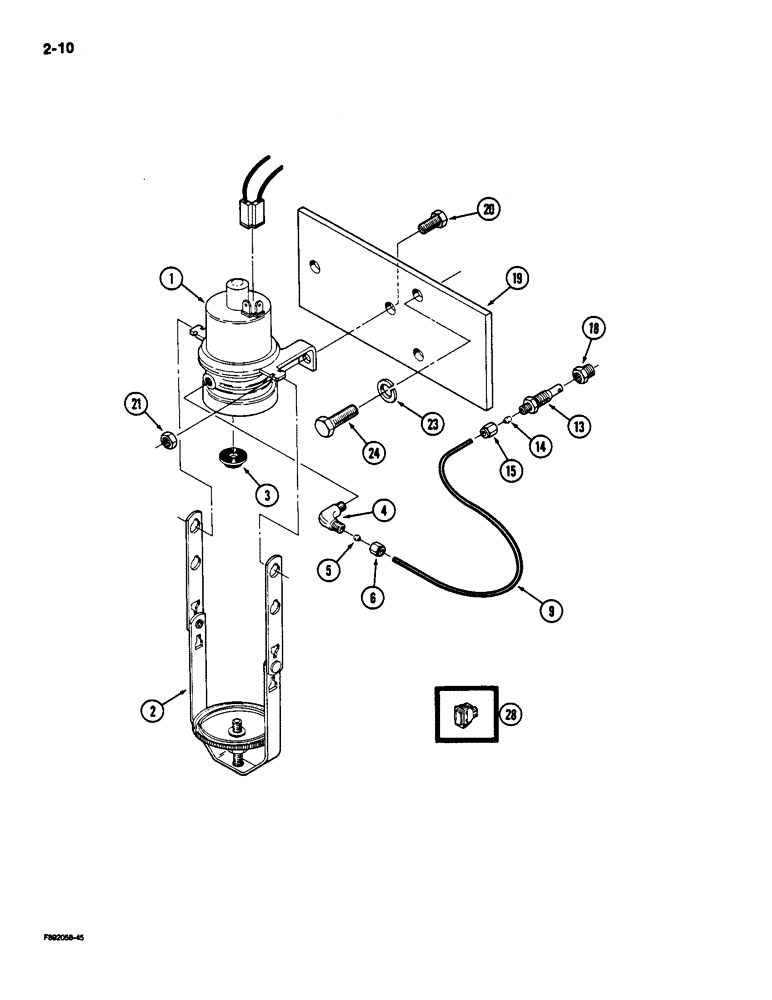

Запчасти Case IH 9110 (2-10) - ETHER STARTING SYSTEM (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Ref. 1 - 6

1шт.

2

D77648

BAIL

HANGER - can, ether

1шт.

3

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

9

31-1347

TUBE,0.125" OD, 24" Length

- ether, solenoid to injector, 1/8 OD x 24 inch (Order hose 29-53T3 and cut to length)

1шт.

13

A172900

NOZZLE CAP

NOZZLE - atomizer, Includes: Ref. 14 and 15

1шт.

14

222-650

SLEEVE,1/8" Tube, Comp

1шт.

15

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

18

31-15

REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF

ADAPTER - straight, 1/8 PT x 1/4 inch PT

1шт.

19

90-6276T1

PLATE

- mounting, solenoid

1шт.

20

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

21

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

19-118

LOCK WASHER,7/16"

7/16"

2шт.

24

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

2шт.

28

1964751C1

SWITCH

- rocker, ether start (In cab)

1шт.
