(9-62) - CONTROL CONSOLE, ROPS

Запчасти Case IH 9110 (9-62) - CONTROL CONSOLE, ROPS (09) - CHASSIS/ATTACHMENTS

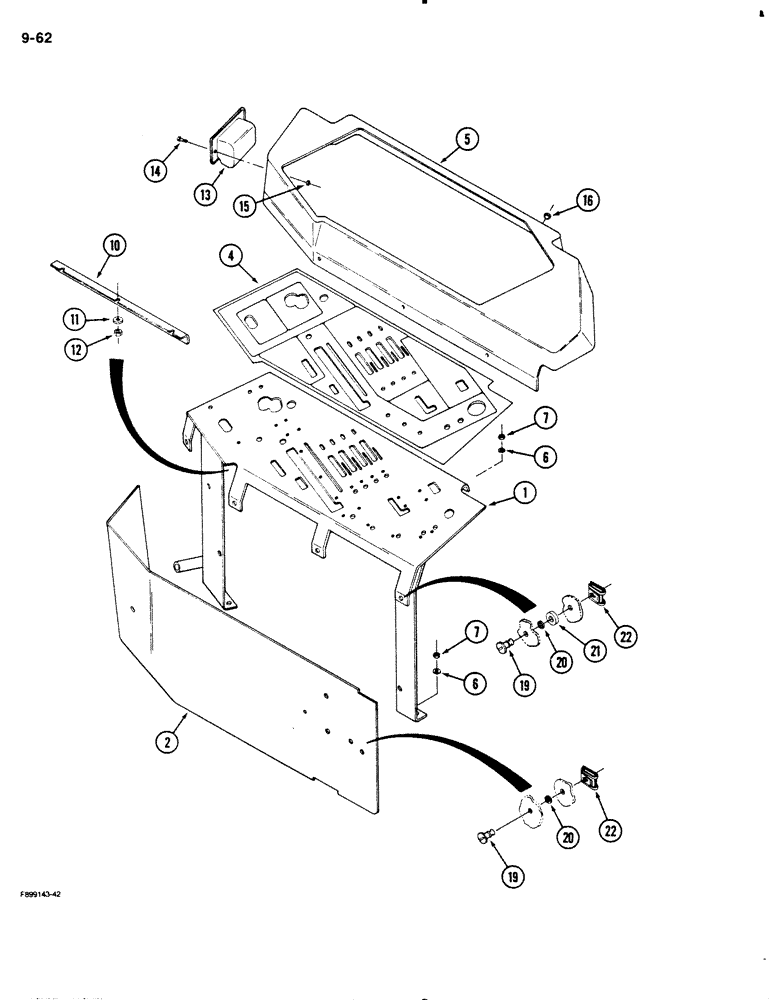

Схема запчастей Case IH 9110 - (9-62) - CONTROL CONSOLE, ROPS (09) - CHASSIS/ATTACHMENTS
11
13
7
15
4
22
20
16
10
19
19
6
2
5
22
21
14
7
12
20
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6084T1

PANEL

- control console

1шт.

2

60-6106T1

SHIELD

PANEL - console wraparound

1шт.

4

60-6108T1

DECAL

- control console

1шт.

5

60-5938T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

10

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

11

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

3шт.

12

19-5563

LOCK NUT

- hex lock, No. 10 NC

3шт.

13

2-6138T91

ASH TRAY

ASHTRAY

1шт.

14

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

- machine, flat head, No. 8 NC x 5/8 inch

2шт.

15

19-5621

LOCK NUT,#8-32, GB

NUT - hex lock, No. 8 NC

2шт.

16

22-619

GROMMET

- hole plug

1шт.

19

19-6136

STUD

- quarter turn

11шт.

20

NLS

NO LONGER SERVICED

- stud

11шт.

21

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

22

A36042

CLIP

RECEPTACLE - quarter turn

11шт.
