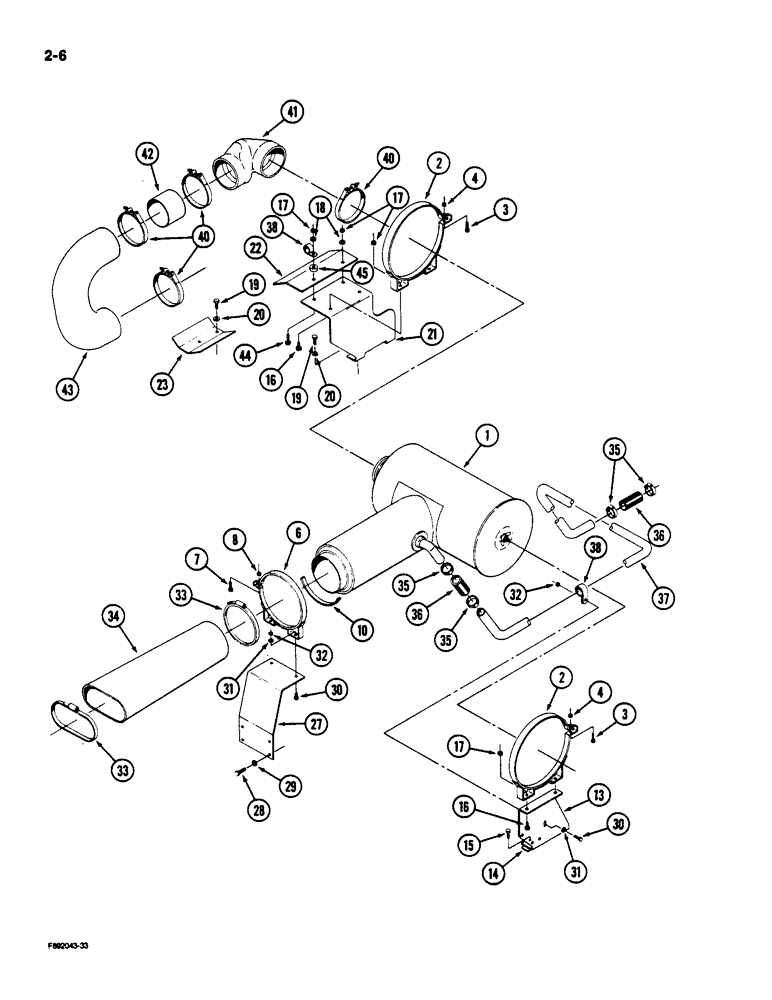

Запчасти Case IH 9110 (2-06) - AIR INDUCTION SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - engine (See Fig. 2-8)

1шт.

2

A16574

BAND

CLAMP ASSEMBLY - includes Ref. 3 - 4, and hardware

2шт.

3

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

4

19-508

LOCK NUT

- hex lock, 5/16 inch NC

2шт.

6

90-6241T1

CLAMP

BAND - mounting, Includes: Ref. 7 and 8

1шт.

7

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

8

19-508

LOCK NUT

- hex lock, 5/16 inch NC

1шт.

10

90-6834T1

FOAM

- mounting band (Order 2-6617T2)

1шт.

13

90-6972T1

BRACKET

- mounting, band

1шт.

14

90-6873T1

SPACER

SPACER - mounting bracket

1шт.

15

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

18

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

19

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

6шт.

20

19-118

LOCK WASHER,7/16"

7/16"

6шт.

21

90-6118T1

BRACKET

- mounting, band

1шт.

22

90-6522T1

SHIELD

- heat

1шт.

23

90-6119T1

SHIELD

- heat

1шт.

27

90-6240T1

PLATE

BRACKET - mounting, band

1шт.

28

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

BOLT - hex, 8 mm - 1.25 x 16 mm

4шт.

29

19-116

LOCK WASHER,5/16"

5/16"

4шт.

30

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

31

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

4шт.

32

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

33

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

- hose, 5-3/4 to 6 inch

2шт.

34

90-6004T1

INTAKE AIR HOSE,5.00" ID x 19.88", SAE 2DA712A26B36F17

5.00" ID x 19.88", SAE 2DA712A26B36F17

1шт.

35

32-26

HOSE CLAMP,#28, 1.31/2.25 Type F Worm

CLAMP - hose, 1-5/16 to 2-1/4 inch

4шт.

36

31-2594

HOSE,1.25" ID x 4.00"

Aspirator Tube; Order 01-4569T1, and Cut to Required Length 1.25" ID x 4.00"

2шт.

37

90-6521T1

TUBE,1.25" OD

- aspirator

1шт.

38

32-343

MOUNTING CLIP

CLAMP - hose

2шт.

40

32-146

CLAMP,#108, 4.25"-4.56", T-Bolt

- hose, 4-1/4 to 4-9/16 inch

4шт.

41

90-6520T1

ELBOW

- air induction (Order from Cummins part No. 3037625)

1шт.

42

90-6117T1

TUBE,4" OD x 3" L

- adapter

1шт.

43

90-6123T1

AIR INTAKE TUBE,4" OD

ELBOW - air induction

1шт.

44

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

45

19-380

SPACER - clamp

1шт.
