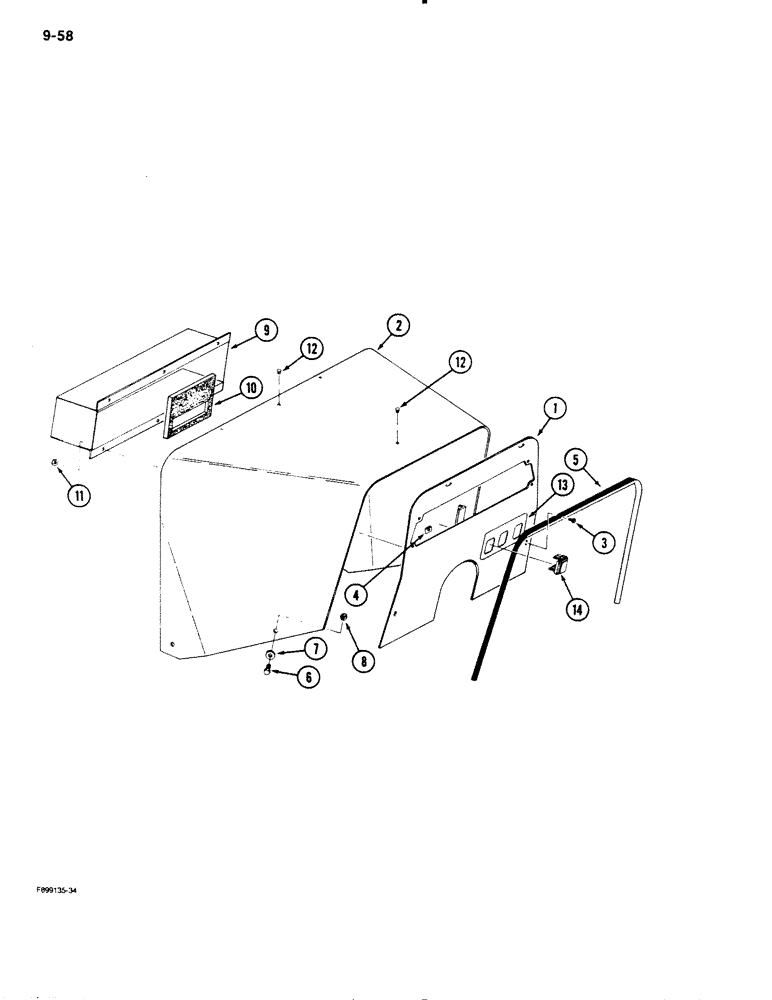

Запчасти Case IH 9110 (9-58) - INSTRUMENT PANEL, ROPS (09) - CHASSIS/ATTACHMENTS

1

60-5832T1

PANEL

PLATE - dash mounting

1шт.

2

60-5834T1

PANEL

COVER - dash wraparound

1шт.

3

159950

NUT

- machine, pan, No. 10 NC x 3/4 inch

6шт.

4

19-6119

STEEL SHEET NUT

NUT - clip, U-type, No. 10 NC

6шт.

5

60-5859T1

GASKET

MOLDING - edge cover (Order F64277 and, Serial Range: cut-length)

1шт.

6

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

7

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

8

19-508

LOCK NUT

- hex lock, 5/16 inch NC

4шт.

9

60-5836T1

COVER

- rear instrument panel

1шт.

10

60-5828T1

SEAL

SEAL - foam

1шт.

11

111626C1

NUT

- hex lock, 1/4 inch NC

6шт.

12

60-4582T1

PLUG

- hole, nylon

2шт.

13

60-5980T1

DECAL

- switch, ROPS

1шт.

14

60-3210T1

PLUG

- switch hole

2шт.
