Артикул
Название
Примечание
Количество

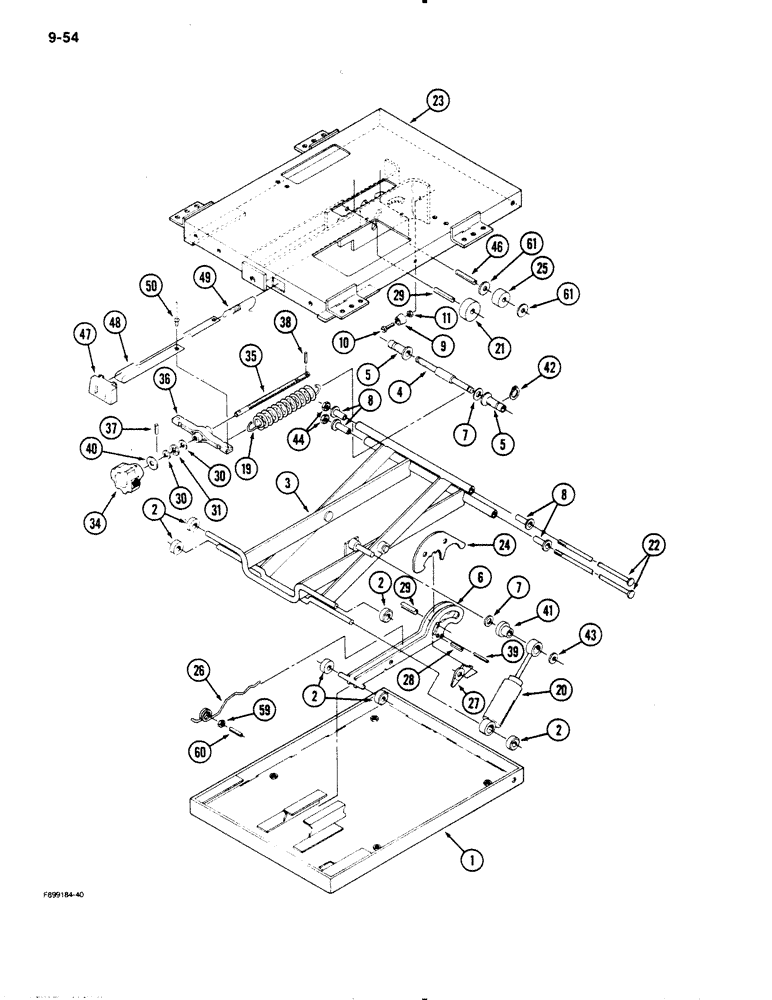

1340224C1
SEAT ASSY.
SEAT ASSEMBLY - mechanical, with vinyl upholstery (Continued), Includes: Ref. 1 - 61
1шт.
1981819C1
PACKAGE, REPAIR
SUSPENSION KIT - mechanical seat, Includes: Ref. 1 - 61
1шт.
Suspension Kit also includes bellows and clips.
1шт.
1
1981787C1
CASE
BASE - lower
1шт.
2
1981788C1
SHIFTER ROLLER
ROLLER - suspension
6шт.
3
1981789C1
DIPPER
ARM ASSEMBLY - suspension
1шт.
4
1981790C1
SHAFT
- spring
1шт.
5
1981791C1
BUSHING
- spring
2шт.
6
1981792C1
ARM
- suspension
1шт.
7
A45519
WASHER
- flat, 33/64 x 1-1/8 x 1/16 inch (Order washer A45110 and spacer A45116)
5шт.
8
A47760
BUSHING
TUBE - bearing
4шт.
9
1981793C1
BUMPER
- spring shaft
2шт.
10
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
- pan, No. 10 NC x 5/8 inch
2шт.
11
131-1142
LOCK NUT,Hex, #10 - 24, Gr A
NUT, LOCK, #10-24, GA
2шт.
19
1981794C1
SPRING
- suspension
2шт.
20
1981795C1
SHOCK ABSORBER
- seat
1шт.
21
1981796C1
BEARING, NEEDLE
FOLLOWER - cam
1шт.
22
A49529
SHAFT
- bearing tube
2шт.
23
1981821C1
HOUSING
- upper
1шт.
24
1981798C1
CAM
- suspension
1шт.
25
1981799C1
BEARING, NEEDLE
FOLLOWER - cam
1шт.
26
1981800C1
SPRING, LEAF
SPRING - height adjust
1шт.
27
1981801C1
LATCH
- suspension cam
1шт.
28
138-110
LOCK PIN,7/32" x 3/4", Slotted
PIN, LOCK, 7/32" x 3/4", Slotted
1шт.
29
138-172
LOCK PIN,3/8" x 1 1/4", Slotted
PIN, 3/8" x 1 1/4", Slotted
2шт.
30
1981802C1
WASHER, THRUST
WASHER - thrust bearing
2шт.
31
F13537
THRUST BEARING
BEARING - thrust
1шт.
34
A47763
KNOB
- weight adjustment
1шт.
35
1981805C1
SHAFT
- weight adjustment
1шт.
36
1981806C1
BRACKET
BAR - weight adjustment
1шт.
37
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
38
138-71
LOCK PIN,5/32" x 5/8", Slotted
PIN, 5/32" x 5/8", Slotted
1шт.
40
1974732C1
WASHER
- flat
1шт.
41
A45501
BUSHING,0.504" ID x 0.87" OD x 1.417"
BEARING - shock absorber
2шт.
42
A49623
RING, SNAP
RING - retaining
2шт.
43
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, Push, 1/2"
2шт.
44
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
2шт.
46
138-155
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
1шт.
47
1981807C1
GUIDE
- weight adjustment
1шт.
48
1981808C1
TAPE
- weight adjustment
1шт.
49
1981809C1
SPRING
- weight adjustment
1шт.
50
151-537
RIVET,Pop, 1/8" x .650"
- pop, 1/8 x 5/8
1шт.
59
131-351
LOCK NUT,5/16"-18, GA
NUT - hex lock, 5/16 inch NC
1шт.
61
495-11034
WASHER,5/16", SAE
flat 5/16", SAE
2шт.
Выбрано товаров: 46
