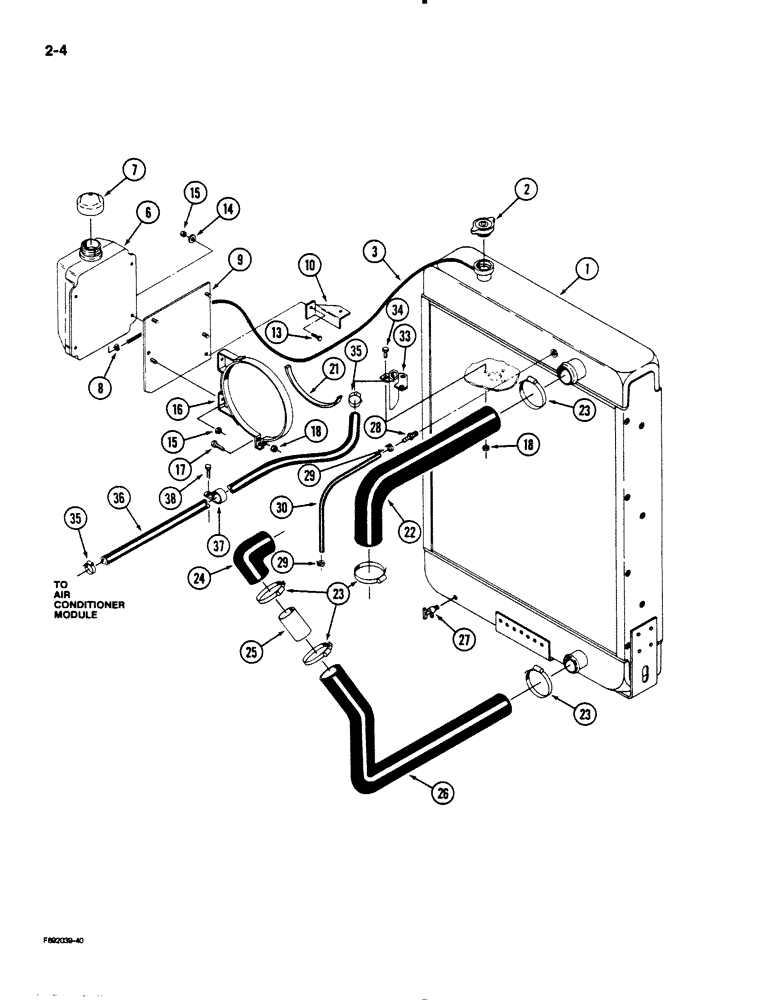

Запчасти Case IH 9110 (2-04) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

90-7041T92

RADIATOR

ASSEMBLY - engine cooling, Includes: Ref. 2 and 3

1шт.

2

90-6633T1

CAP

- radiator

1шт.

3

31-1260

HOSE,0.25" ID x 57.00"

Overflow (Order 31-1259T1 and cut to length) 0.25" ID x 57.00"

1шт.

6

90-6320T1

TANK

- overflow

1шт.

7

60-4241T1

FILLER CAP

CAP - tank

1шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj., includes screw #4, 0.25/0.62 Type F Worm

1шт.

9

90-6272T2

BRACKET

- tank mounting

1шт.

10

90-6974T2

BRACKET

- support

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

14

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

16

90-6241T1

CLAMP

BAND - mounting, Includes: Ref. 16 and 18

2шт.

17

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

18

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

5шт.

21

90-6834T1

FOAM

- mounting band (Order 2-6617T2)

2шт.

22

31-2483

RADIATOR HOSE,2.25" ID x 14.85"

- Upper 2.25" ID x 14.85"

1шт.

23

70-5521T1

COLLAR CLAMP

CLAMP - hose, 2-13/16 to 3-3/4 inch

5шт.

24

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

- Elbow, Water 50.08 mm ID, 60.08 mm ID x 39.70 mm

1шт.

25

90-6575T2

TUBE,2 mm OD x 3 mm L

- hose connector

1шт.

26

31-2482

RADIATOR HOSE,2.00" ID x 17.82"

- Lower 2.00" ID x 17.82"

1шт.

27

31-159

COCK, DRAIN

VALVE - drain, radiator, 90 degree, 1/4 inch PT

1шт.

28

220-3

FITTING

- barb, straight

1шт.

29

32-29

HOSE CLAMP

CLAMP - hose, 7/16 to 3/4 inch

2шт.

30

32-203

HOSE

- rubber, 3/8 x 23 inch (Order 32-12;, Serial Range: cut-length)

1шт.

33

60-455OT1

TUBE - suction, air conditioner aspirator

1шт.

34

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

35

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 to 2 inch

2шт.

36

31-1508

HOSE,1.00" ID x 51.75"

Suction, Air Conditioner Aspirator 1.00" ID x 51.75"

1шт.

37

32-343

MOUNTING CLIP

CLAMP - hose

1шт.

38

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.
