Запчасти Case IH 9110 (9-24) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

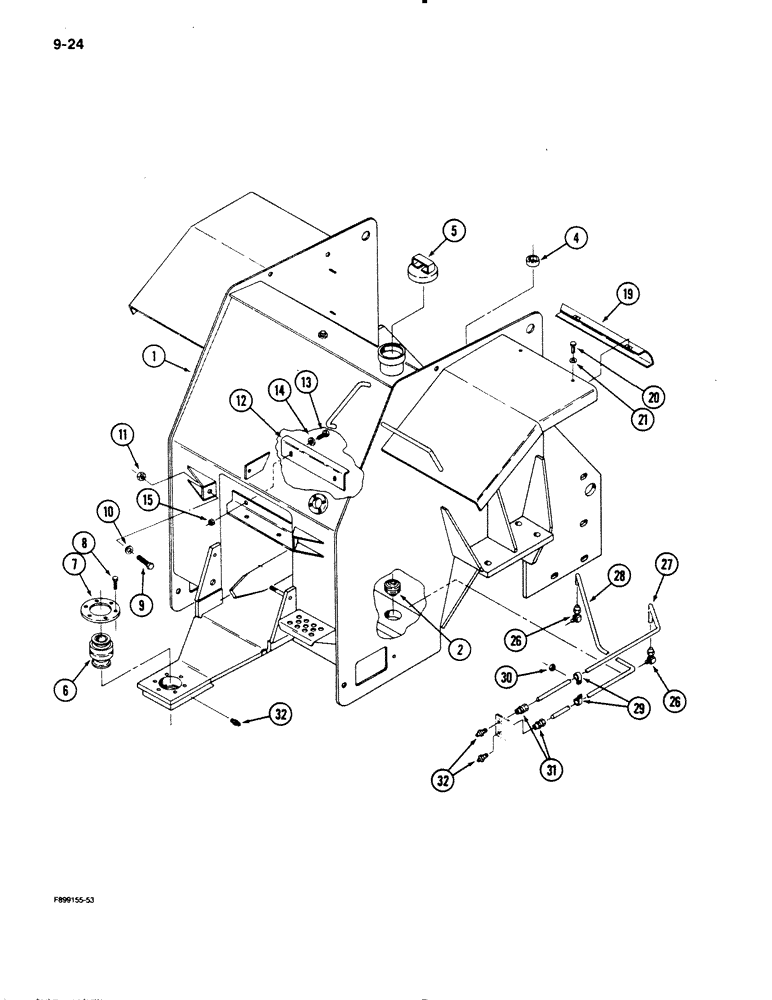

Схема запчастей Case IH 9110 - (9-24) - REAR FRAME (09) - CHASSIS/ATTACHMENTS
10
9
29
11
6
12
5
26
20
28
31
32
8
7
14
13
27
32
15
26
19
2
30
21
1
4

Артикул

Название

Примечание

Количество

1

70-5435T1

FRAME ASSY

FRAME - rear, Includes: Ref. 2

1шт.

2

15-44

SPHERICAL BEARING

BEARING - steering cylinder

2шт.

4

70-4621T1

BUSHING

- connecting link mounting

2шт.

5

A162191

CAP

- fuel

1шт.

6

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge

1шт.

7

2-10

RETAINER

RING - bearing retaining

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

9

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

2шт.

10

19-84

NUT,3/4"-10, G5

- hex,3/4 inch NC

2шт.

11

19-712

WASHER,3/4", SAE

- flat, 3/4 x 1-1/2 x 1/8 inch

4шт.

12

70-4903T1

PLATE

- connecting link stabilizer

1шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

14

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened

2шт.

15

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

19

70-5314T1

MOUNTING PARTS

MOUNT - light, left (shown)

1шт.

19

70-5320T1

MOUNTING PARTS

MOUNT - light, right (not shown)

1шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

26

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube

2шт.

27

50-3123T1

TUBE

- grease line

1шт.

28

50-3122T1

TUBE

- grease line

1шт.

29

31-1862

CLAMP

- tube

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube

2шт.

32

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

Выбрано товаров: 25
