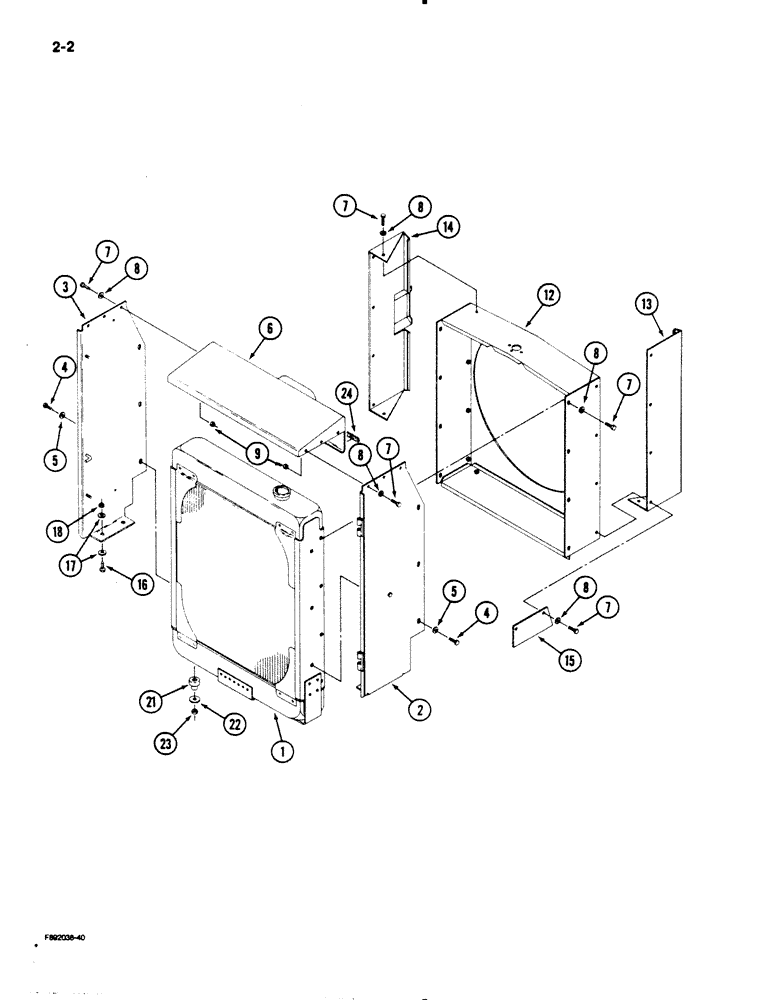

Запчасти Case IH 9110 (2-02) - RADIATOR MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - cooling system (See Fig. 2-4)

1шт.

2

90-6140T3

SHROUD

- radiator, front, left

1шт.

3

90-6141T3

SHROUD

- radiator, front, right

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

5

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

6шт.

6

90-6133T2

HOOD

- air intake

1шт.

7

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

25шт.

8

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

25шт.

9

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

12

90-6195T2

SHROUD

- fan

1шт.

13

90-6196T1

GUARD

- belt, left

1шт.

14

90-7060T1

GUARD

- belt, right

1шт.

15

70-3183T1

GUARD

- foot

2шт.

16

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

17

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/32 inch

8шт.

18

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

4шт.

21

L13142

BUSHING

MOUNT - isolator, rubber

2шт.

22

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat, 1/2 x 1-3/4 x 1/8 inch

2шт.

23

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

24

70-5265T1

SEAL

- radiator to shroud length)

2шт.
