Запчасти Case IH 9110 (9-14) - HOOD SUPPORT (09) - CHASSIS/ATTACHMENTS

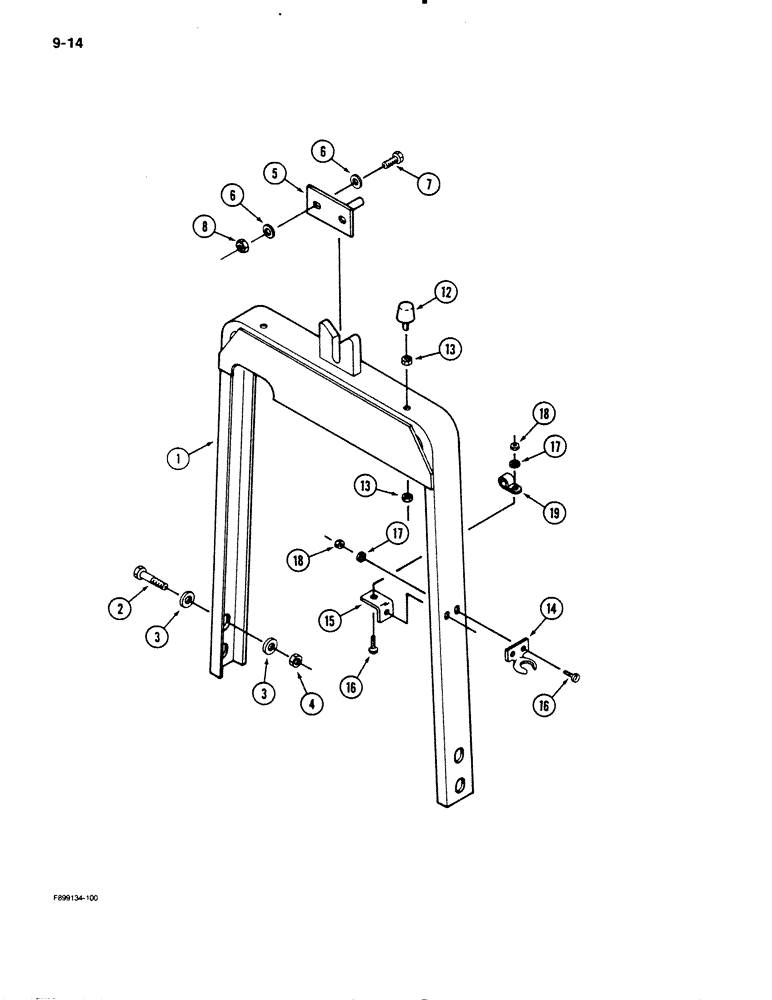

Схема запчастей Case IH 9110 - (9-14) - HOOD SUPPORT (09) - CHASSIS/ATTACHMENTS
2
16
6
18
7
19
13
12
18
16
13
17
17
5
14
15
3
8
6
3
1
4

Артикул

Название

Примечание

Количество

1

70-4524T1

SUPPORT

- hood

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

4

19-653

LOCK NUT

- hex lock, 1/2 inch NC

4шт.

5

70-4691T1

PLATE

ROD - hood centering

1шт.

6

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

12

70-2816T1

BUMPER

- hood adjustment, rubber

2шт.

13

19-236

JAM NUT,5/16" - 24, Gr 5

- hex jam, 5/16 inch NF

4шт.

14

60-3063T2

BRACKET

- hood holddown

1шт.

15

70-5023T1

ANGLE

BRACKET - clamp mounting

1шт.

16

27093R1

SCREW

- machine, pan, No. 10 x 5/8

3шт.

17

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

3шт.

18

19-5563

LOCK NUT

- hex lock, No. 10 NC

3шт.

19

32-69

CLAMP

- cable, throttle

1шт.

Выбрано товаров: 16
