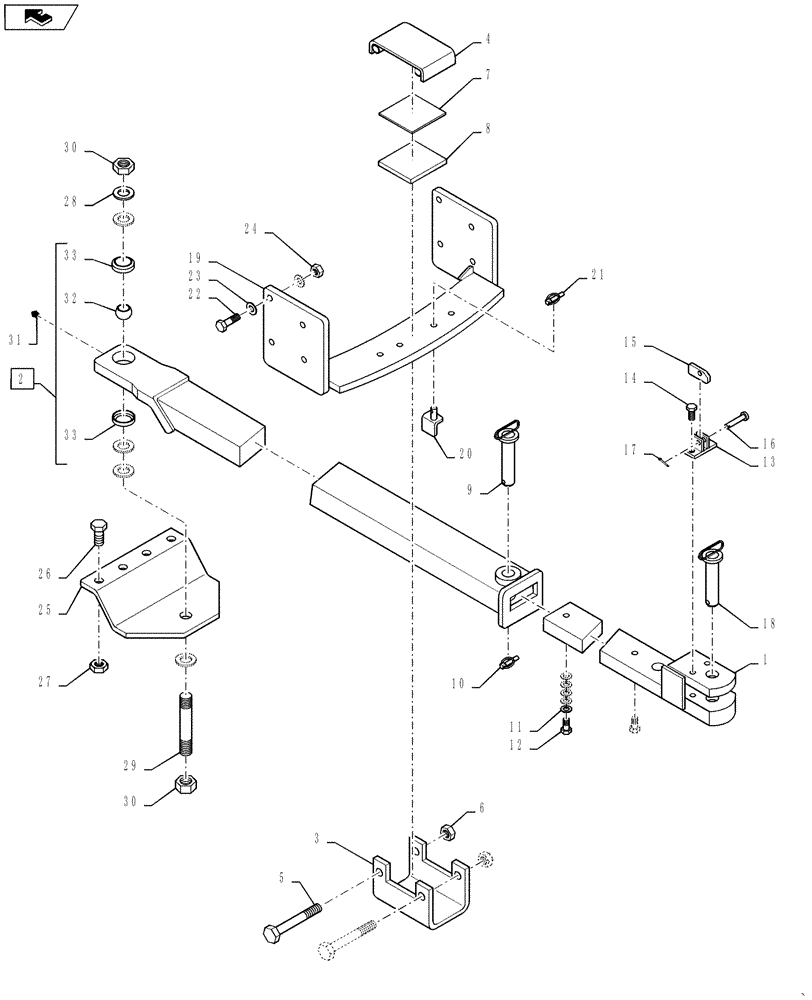

Запчасти Case IH 9110 (9-10) - DRAWBAR, EXTENDABLE (09) - CHASSIS/ATTACHMENTS

1

70-5202T1

DRAWBAR

Extendable

1шт.

2

70-5255T1

TUBE

Drawbar Receiver, Incl 37, 38

1шт.

3

70-4516T1

CLEVIS

Yoke, Drawbar Cradle

1шт.

4

70-4555T1

COVER

Slide Retaining

1шт.

5

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

2шт.

6

19-375

LOCK NUT,1" - 8, GB

2шт.

7

70-5253T1

PLATE

Slide Spacer

1шт.

8

70-4513T1

SLIDE

Drawbar, Plastic

1шт.

9

70-1731T1

PIN

Drawbar Retaining

1шт.

10

19-1041

LOCK PIN,7/16" x 2"

Klik

1шт.

11

195-108

WASHER,5/8"

5шт.

12

26-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

2шт.

13

70-1737T1

LATCH

Pin Retaining

1шт.

14

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

15

1-4906

LATCH

Lever, Pin Retaining

1шт.

16

42-102

CLEVIS PIN,1/2" x 2.060"

1шт.

17

19-168

COTTER PIN,1/8" x 1"

1шт.

18

70-1735T1

PIN

Drawbar Retaining

1шт.

19

70-3154T2

HANGER

1шт.

19

REF

INSTRUCTION

1шт.

20

70-1937T2

SHAFT LOCK

2шт.

21

517758R91

SPLIT PIN/SAFETY PIN

Klik

2шт.

22

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

8шт.

23

19-5723

WASHER

16шт.

24

19-85

LOCK NUT

8шт.

25

70-3150T1

PLATE

Support, Drawbar Hinge

1шт.

26

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

27

19-85

LOCK NUT

4шт.

28

799153

CHANNEL

5шт.

29

70-3137T1

PIN,44.37mm OD x 323.85mm L

Drawbar and Center Link

1шт.

In some applications 70-4662T1 is used. O/A length is 9.88". Dia. is 1.747/1.745". 1-3/4"-12 UNF thread on both sides. The length of the thread on one end is 2.75" and on the other end is 1.0".

1шт.

30

19-620T1

NUT

2шт.

31

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

32

40-140

BUSHING,44.7mm ID x 82.42mm OD

Uni-ball

1шт.

33

40-139

HOUSING

Uni-ball

2шт.
