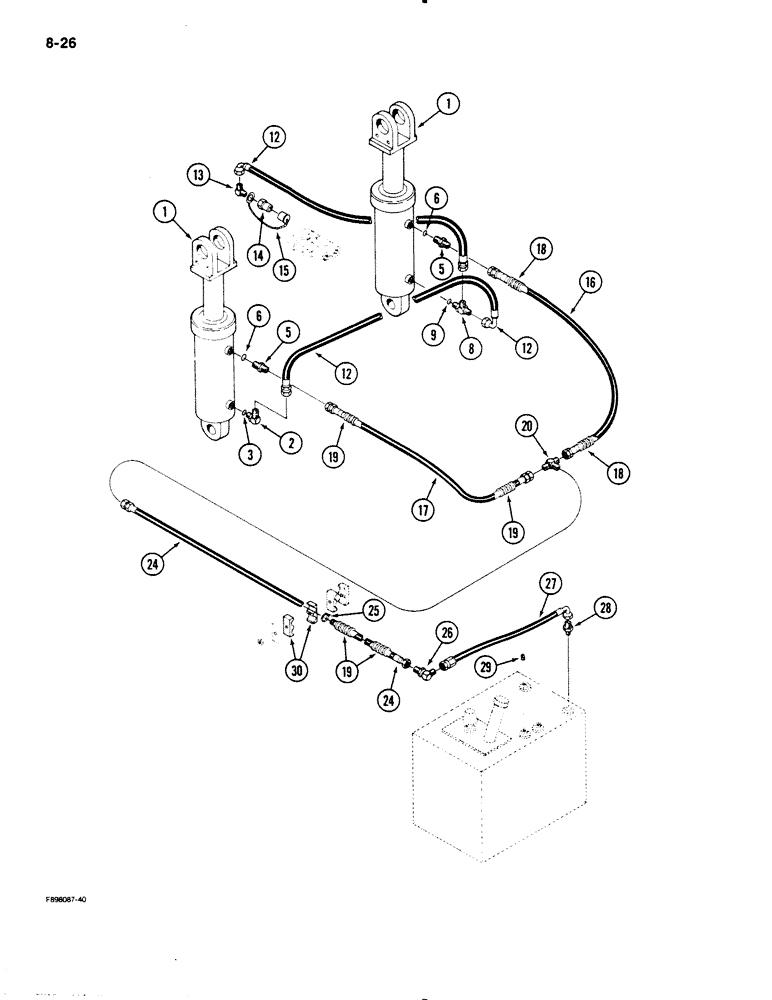

Запчасти Case IH 9110 (8-26) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM, IF EQUIPPED (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Fig. 8-32)

2шт.

2

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 3/4 inch thread, Includes: Ref. 3

1шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

5

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 6

2шт.

6

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

8

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable, 3/4-16 inch thread, Includes: Ref. 9

1шт.

9

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

12

124948C1

HYDRAULIC HOSE

HOSE -, Serial Range: elbow-tee

2шт.

13

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 PT x 3/4 inch thread

1шт.

14

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

15

1-7142

CAP

- coupler dust, rubber

1шт.

16

18-543

HOSE

-, Serial Range: tee-cylinder

1шт.

17

31-1957

HOSE

- tee to cylinder, right

1шт.

18

50-2696T1

HOSE

GUARD - hose, protector, left, 20 inch (Order S119717 and, Serial Range: cut-length)

1шт.

19

50-2741T1

CONDUIT

GUARD - hose protector, right, 30 inch (Order S119717 and, Serial Range: cut-length)

2шт.

20

18-584

TEE,7/8"-14, 37 Degree

- connector, 7/8-14 inch thread

1шт.

24

31-2677

HOSE ASSY.

HOSE -, Serial Range: drain-elbow

1шт.

25

19-135

CABLE TIE

STRAP - nylon

2шт.

26

31-2675

ELBOW,90º Blkhd, 7/8"-14, 37º x 7/8"-14, 37º

- 90 degree, bulkhead, 7/8-14 inch thread

1шт.

27

31-2679

HOSE ASSY.

HOSE - drain, Serial Range: elbow-tank

1шт.

28

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 7/8-14 x 1/2 inch PT

1шт.

29

31-35

PLUG

- pipe, square head, 1/2 inch PT

1шт.

30

50-2534T1

CLAMP

- split, halves

4шт.

35-1761T91

KIT

- manual three point hitch, when tractor is equipped with a PTO system (machinery item)

1шт.

35-1764T91

KIT

- manual three point hitch, when tractor is not equipped with a PTO system (machinery item)

1шт.
