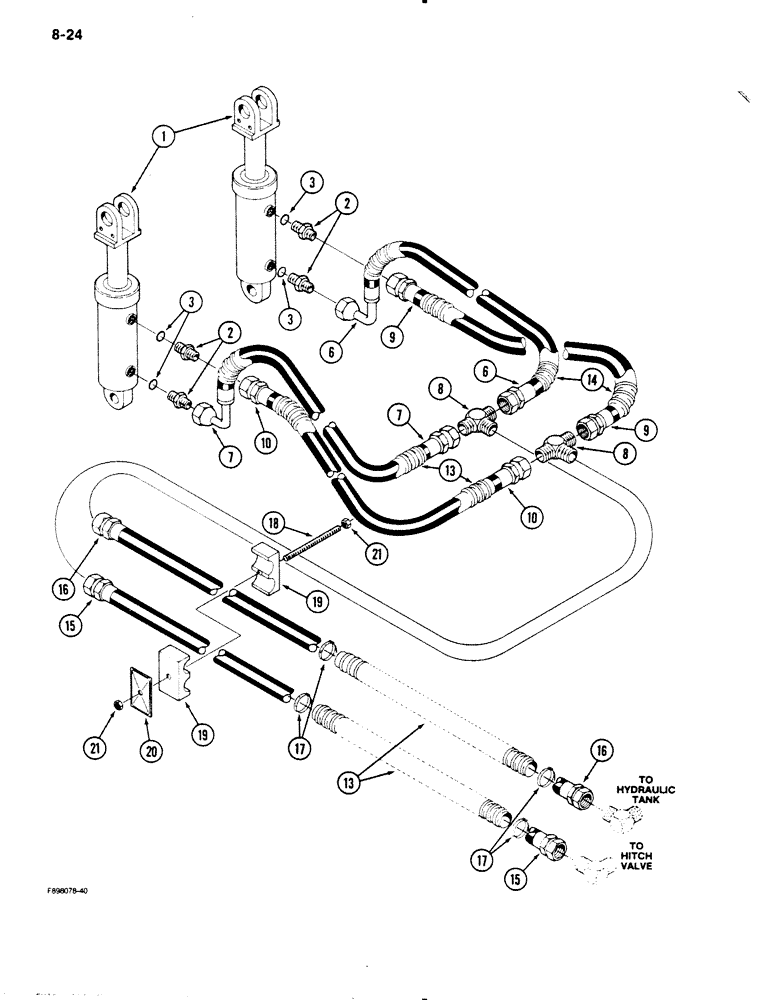

Запчасти Case IH 9110 (8-24) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Fig. 8-32)

2шт.

2

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 3

4шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

6

31-2464

HOSE

- cylinder lift, left, 31 inch

1шт.

7

31-2463

HOSE

- cylinder lift, right, 45 inch

1шт.

8

18-584

TEE,7/8"-14, 37 Degree

- connector, 7/8-14 inch thread

2шт.

9

18-543

HOSE

- cylinder, drain, left, 26 inch

1шт.

10

31-1957

HOSE

- cylinder, drain, right, 39 inch

1шт.

13

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order S119717 and, Serial Range: cut-length)

4шт.

14

50-2696T1

HOSE

GUARD - hose, protector, 20 inch (Order S119717 and, Serial Range: cut-length)

2шт.

15

31-2676

HOSE ASSY.

HOSE - cylinder lift, 67 inch

1шт.

16

31-2677

HOSE ASSY.

HOSE - cylinder drain, 68 inch

1шт.

17

19-135

CABLE TIE

STRAP - nylon

4шт.

18

50-2714T1

STUD

- clamp mounting, 5/16 NC x 4-1/2 inch

1шт.

19

50-2534T1

CLAMP

- split, halves

4шт.

20

50-2533T1

PLATE

COVER - clamp

2шт.

21

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
