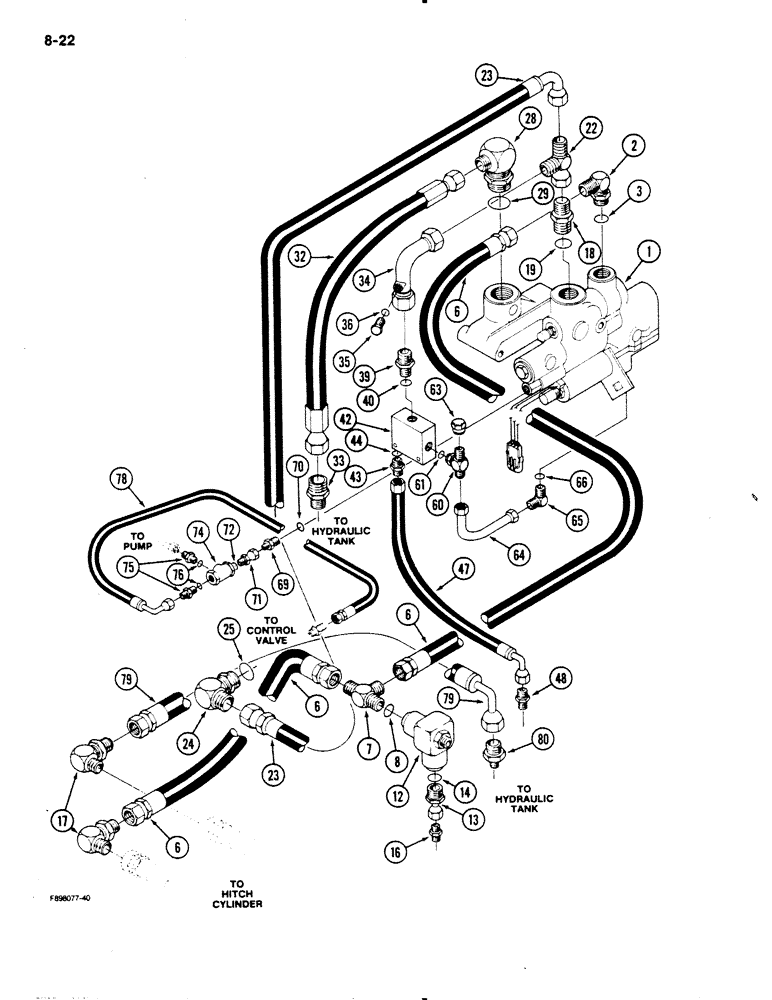

Запчасти Case IH 9110 (8-22) - THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, hitch (See Fig. 8-34)

1шт.

2

18-569

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable, 7/8-14 inch thread, Includes: Ref. 3 and 6

1шт.

3

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

6

31-2841

HOSE

- hitch valve to relief valve, 20 inch

2шт.

7

18-586

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

- adjustable, 7/8 inch thread, Includes: Ref. 8

1шт.

8

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Fig. 8-36)

1шт.

13

31-117

ADAPTER

- straight, 1/2 PT x 7/8-14 inch thread, Includes: Ref. 14

1шт.

14

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

16

31-345

FITTING

CONNECTOR - straight, 1/2 inch PT thread

1шт.

17

31-2048

ADAPTER

ELBOW - 90 degree, bulkhead, 7/8-14 inch thread (REPLACED 31-2675)

2шт.

18

18-623

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 1-1/16 x 7/8 inch thread, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

22

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.

23

31-2839

HOSE ASSY.

HOSE - hitch valve to control valve, 20 inch

1шт.

After S/N Jee0069665 order P/N 328851A1 per ECN F98484

1шт.

24

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree, 1-1/16 inch thread, Includes: Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

28

31-394

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

- 90 degree adjustable, 1-5/16-12 x 1-1/16 inch thread, Includes: Ref. 29

1шт.

29

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

32

31-2713

HOSE

- hitch valve to hydraulic tank

1шт.

33

31-666

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 1/2 PT x 1-1/16-12 inch thread

1шт.

34

50-3186T1

HYD TUBE

TUBE - hitch control valve to pressure reducing valve

1шт.

35

1-3213

PLUG

- o-ring, Includes: Ref. 36

1шт.

36

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

31-421

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 7/8 inch thread, Includes: Ref. 40

1шт.

40

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

REF

INSTRUCTION

VALVE ASSEMBLY - pressure reducing (See Fig. 8-36)

1шт.

43

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 inch thread, Includes: Ref. 44

1шт.

44

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

47

31-2459

HOSE

- pressure reducing valve to hydraulic tank

1шт.

48

31-375

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 1/2 PT x 9/16 inch thread

1шт.

60

18-585

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

- adjustable, 9/16-18 inch thread, Includes: Ref. 61

1шт.

61

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

63

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16 NF

1шт.

64

50-3111T1

HYD TUBE

TUBE - pressure reducing valve to hitch control valve

1шт.

65

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss, Includes: Ref. 66

1шт.

66

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

69

31-2205

ADAPTER

- straight, 1/4 PT x 1/2-20 inch thread

1шт.

70

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

1шт.

71

31-2146

CONNECTING ROD

ADAPTER - adjustable, 1/4 PT x 7/16 inch thread, Includes: Ref. 72

1шт.

72

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

74

31-1778

VALVE

- shuttle

1шт.

75

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16-20 inch thread, Includes: Ref. 76

2шт.

76

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

2шт.

78

31-2631

HOSE ASSY.

HOSE - shuttle valve to control valve, 20 inch

1шт.

79

31-2624

HOSE ASSY.

HOSE - cylinder return line to hydraulic tank, 25-1/4 inch

1шт.

80

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER - 7/8-14 x 1/2 inch PT male..

1шт.

35-1775T91

KIT - electronic controlled three point hitch, when tractor is equipped with a PTO system (Machinery item)

1шт.

35-1778T91

KIT - electronic controlled three point hitch, when tractor is not equipped with a PTO system (Machinery item)

1шт.
