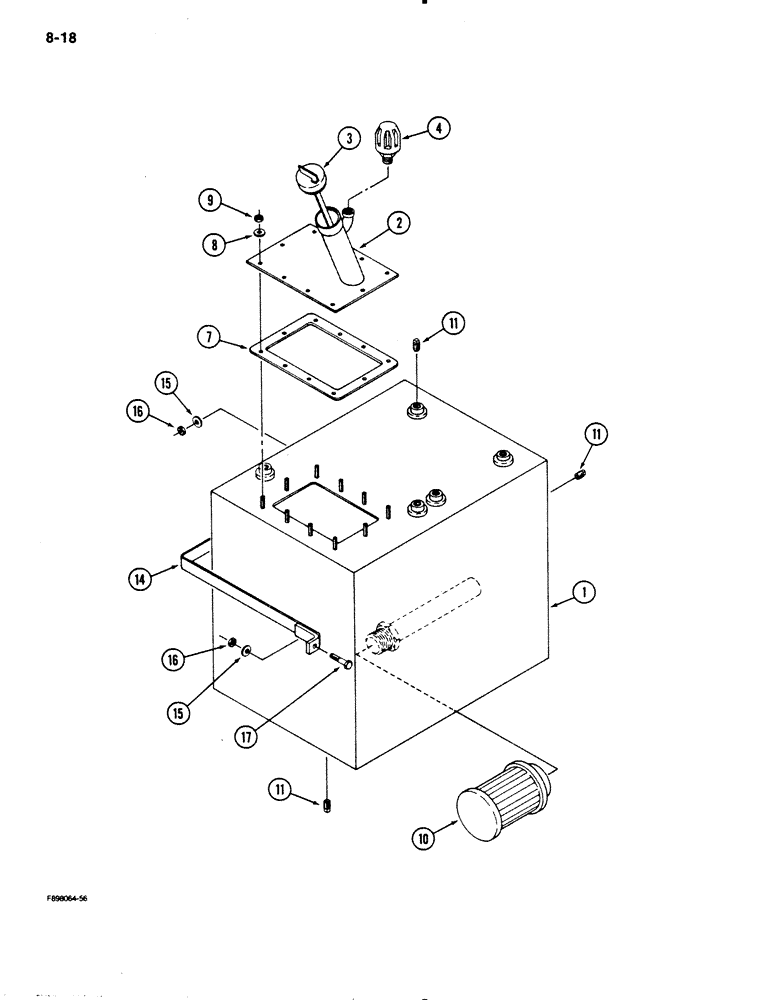

Запчасти Case IH 9110 (8-18) - HYDRAULIC TANK (08) - HYDRAULICS

1

50-3054T2

TANK, HYDRAULIC OIL

TANK - hydraulic

1шт.

2

50-3224T1

PLATE

- cover

1шт.

3

50-2558T1

DIPSTICK

- oil fill

1шт.

4

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

7

50-2429T1

GASKET

- cover

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

10шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

10

50-2029T1

FILTER SCREEN

FILTER - suction, screen

1шт.

11

31-35

PLUG

- pipe, square head, 1/2 inch PT

1шт.

14

50-3058T1

BAND

- mounting

1шт.

15

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

16

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
